Home >> Saab >> 2007 >> 9-7X L6-4.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Inline Harness Connector End Views >> C100 - C199 >> C100

C100



Inline Harness Connector End Views

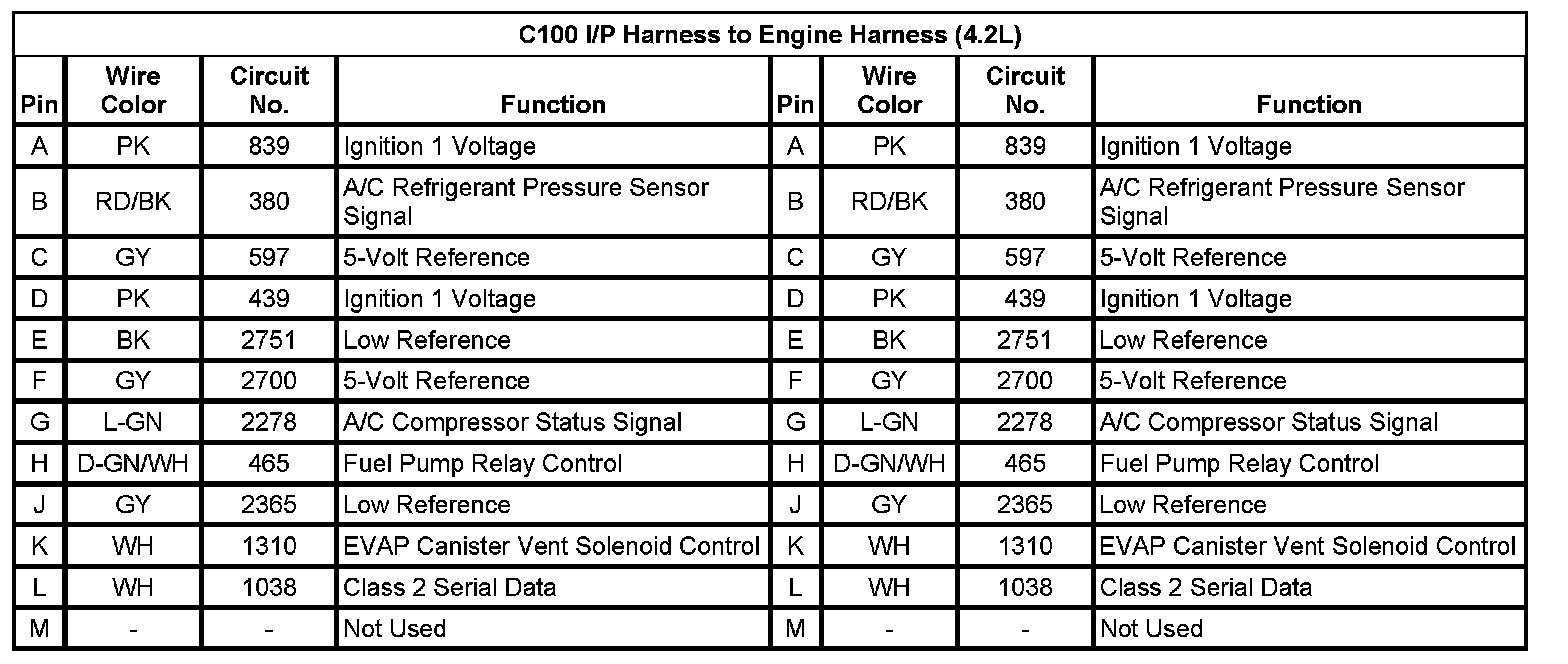

C100 I/P Harness to Engine Harness (4.2L)
