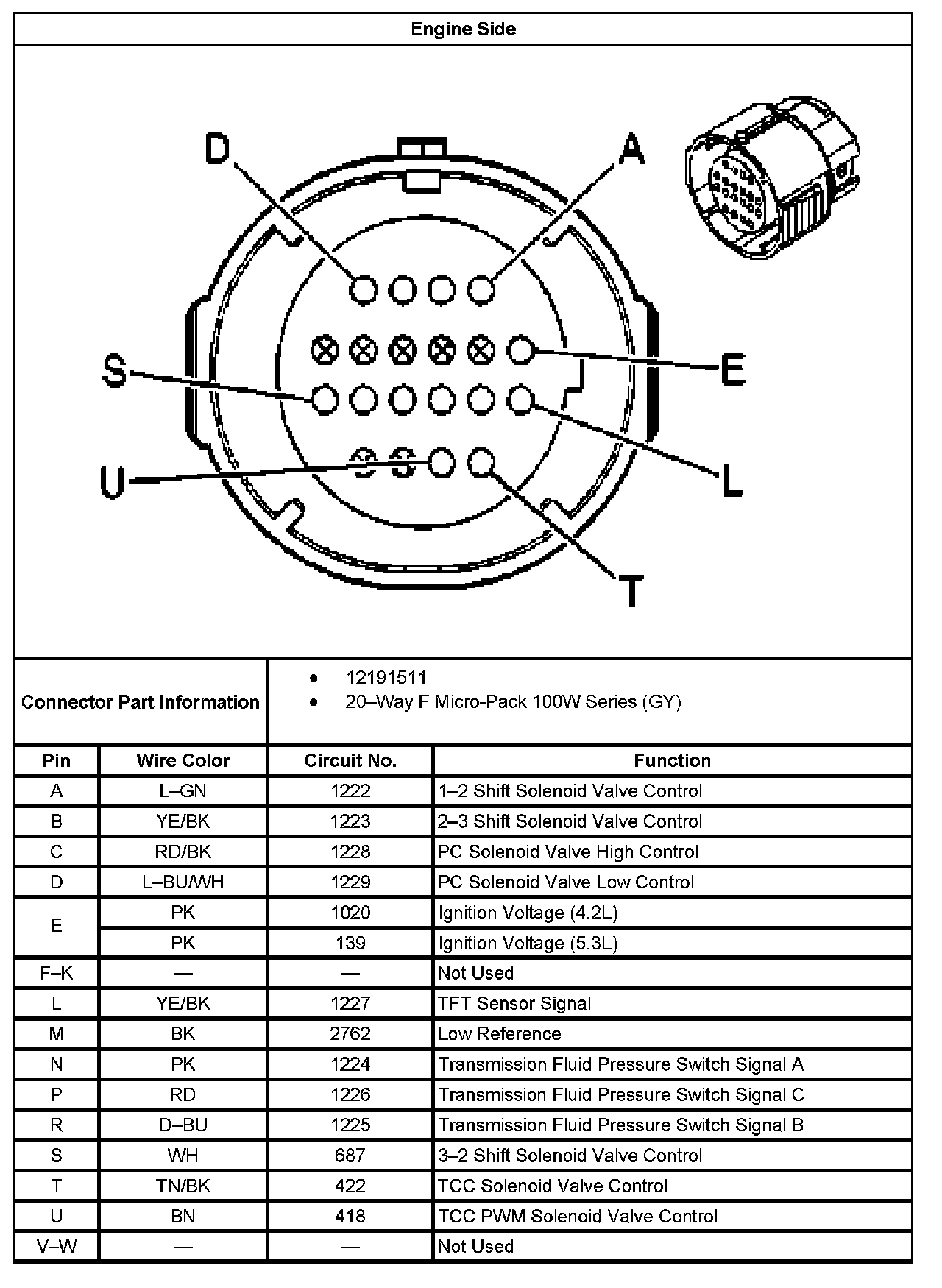

Automatic Transmission Inline 20-Way Connector End View Engine Side
Automatic Transmission Inline 20-Way Connector End View Engine Side
Engine Side:
