LEMON Manuals: Even more car manuals for everyone
Home >> Saab >> 2007 >> 9-7X L6-4.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag

Air Bag



Component Connector End Views

Inflatable Restraint I/P Module





Inflatable Restraint Roof Rail Module - Left





Inflatable Restraint Roof Rail Module - Right

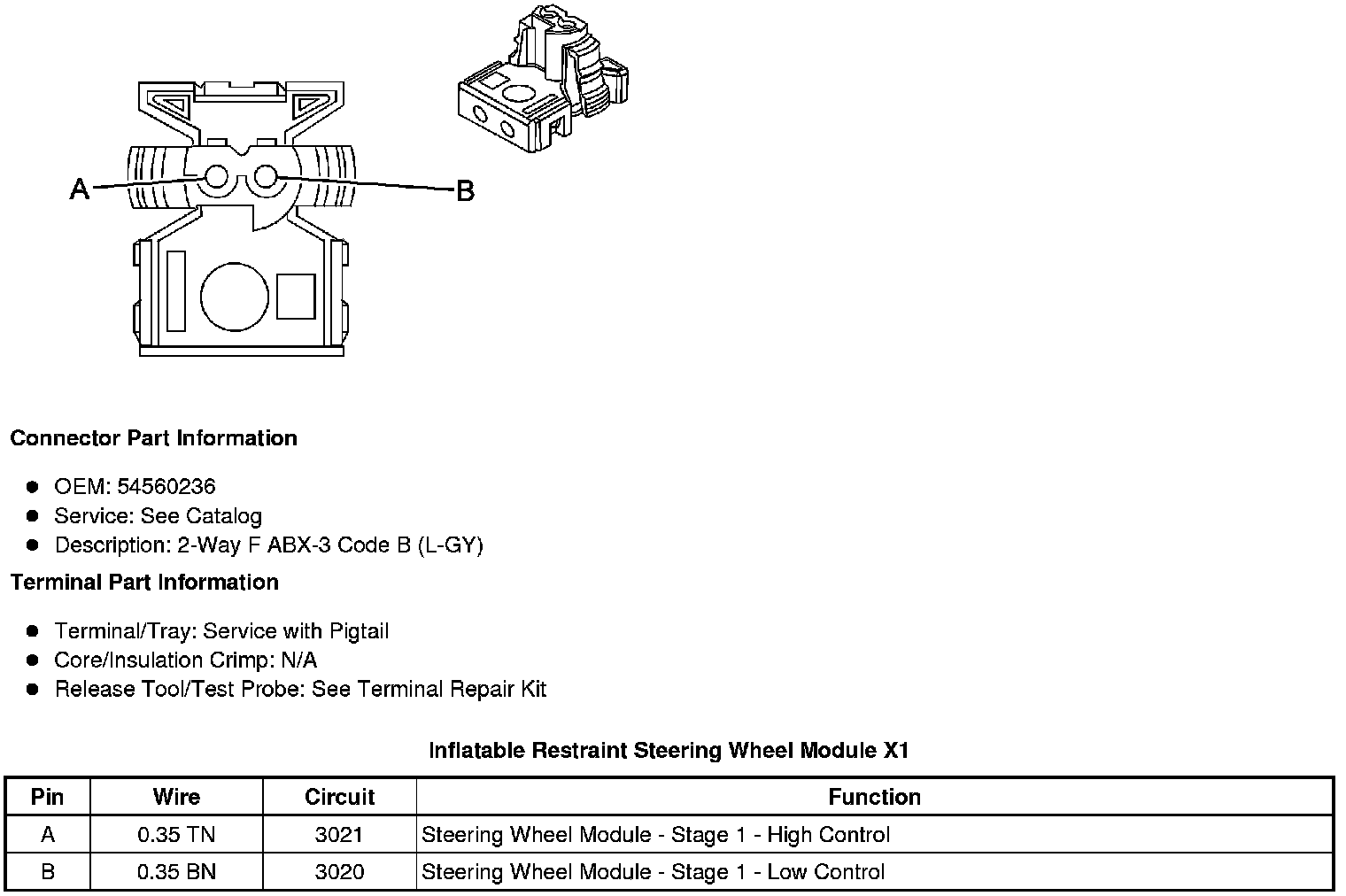

Inflatable Restraint Steering Wheel Module X1

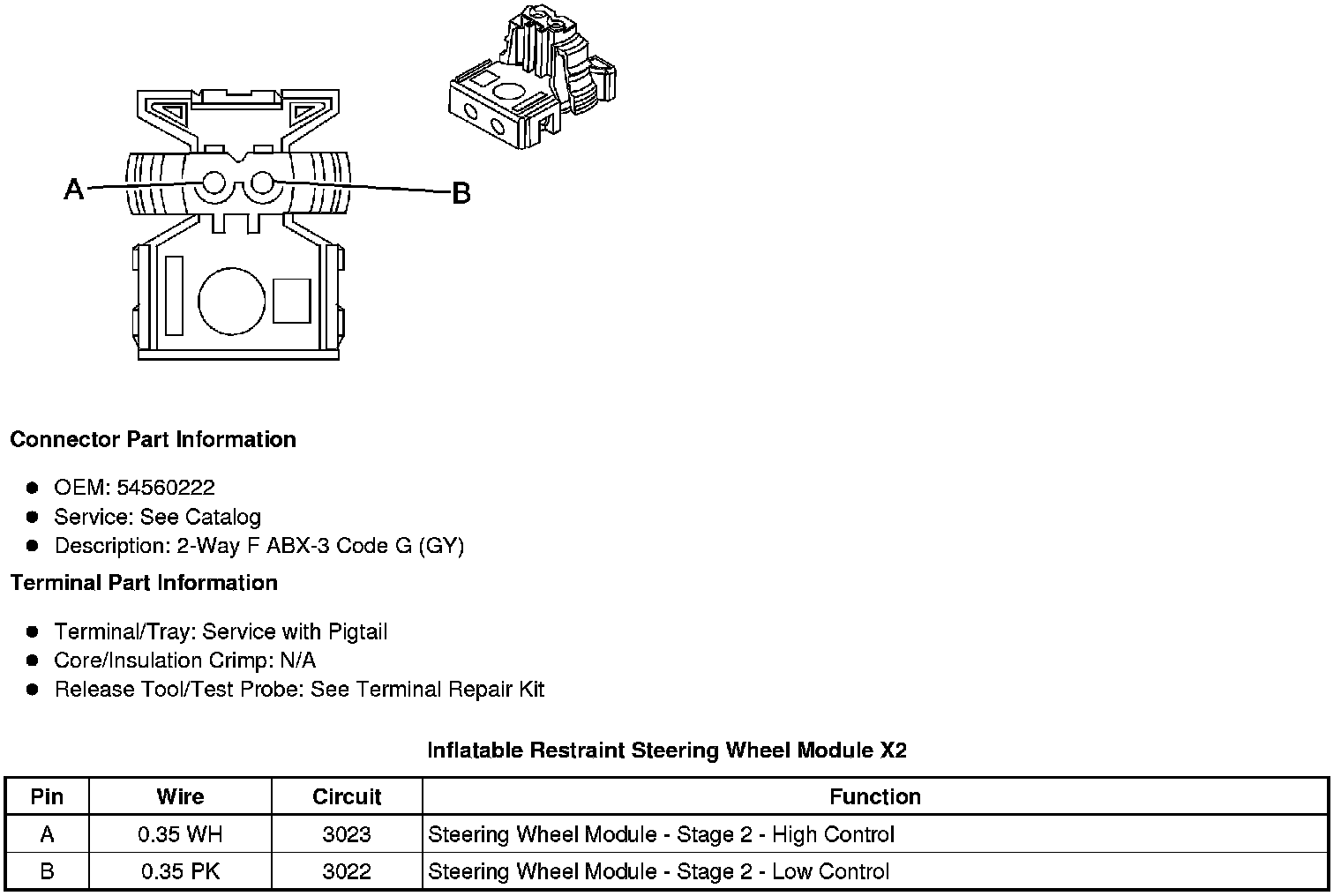

Inflatable Restraint Steering Wheel Module X2
