Antilock Brakes / Traction Control Systems: Locations

Antilock Brake System Component Views

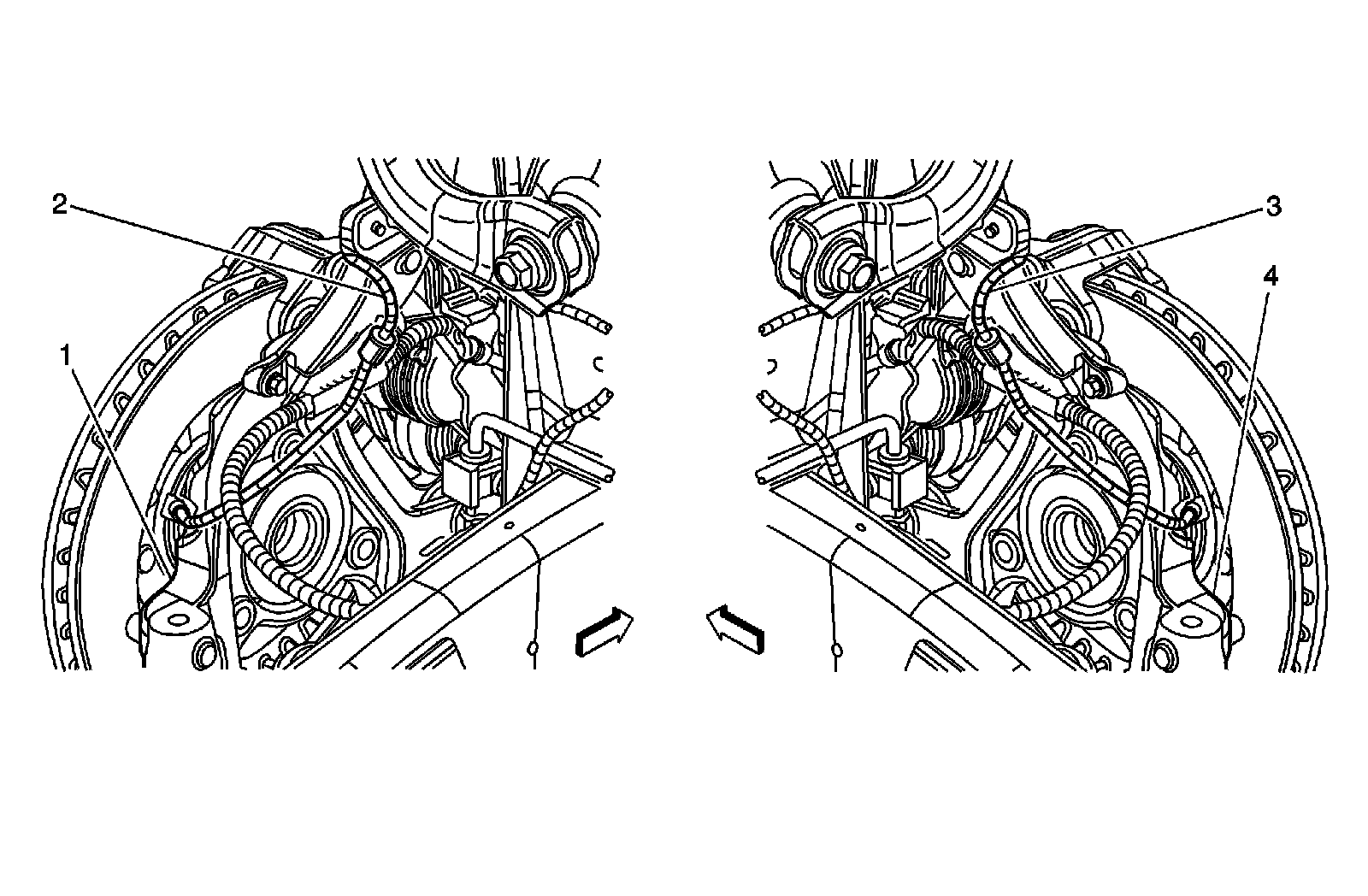

Front Hubs and Rotors

1 - LH Steering Knuckle
2 - Wheel Speed Sensor - LF
3 - Wheel Speed Sensor - RF
4 - RH Steering Knuckle

Floor Shift Control Knob

1 - Traction Control Switch

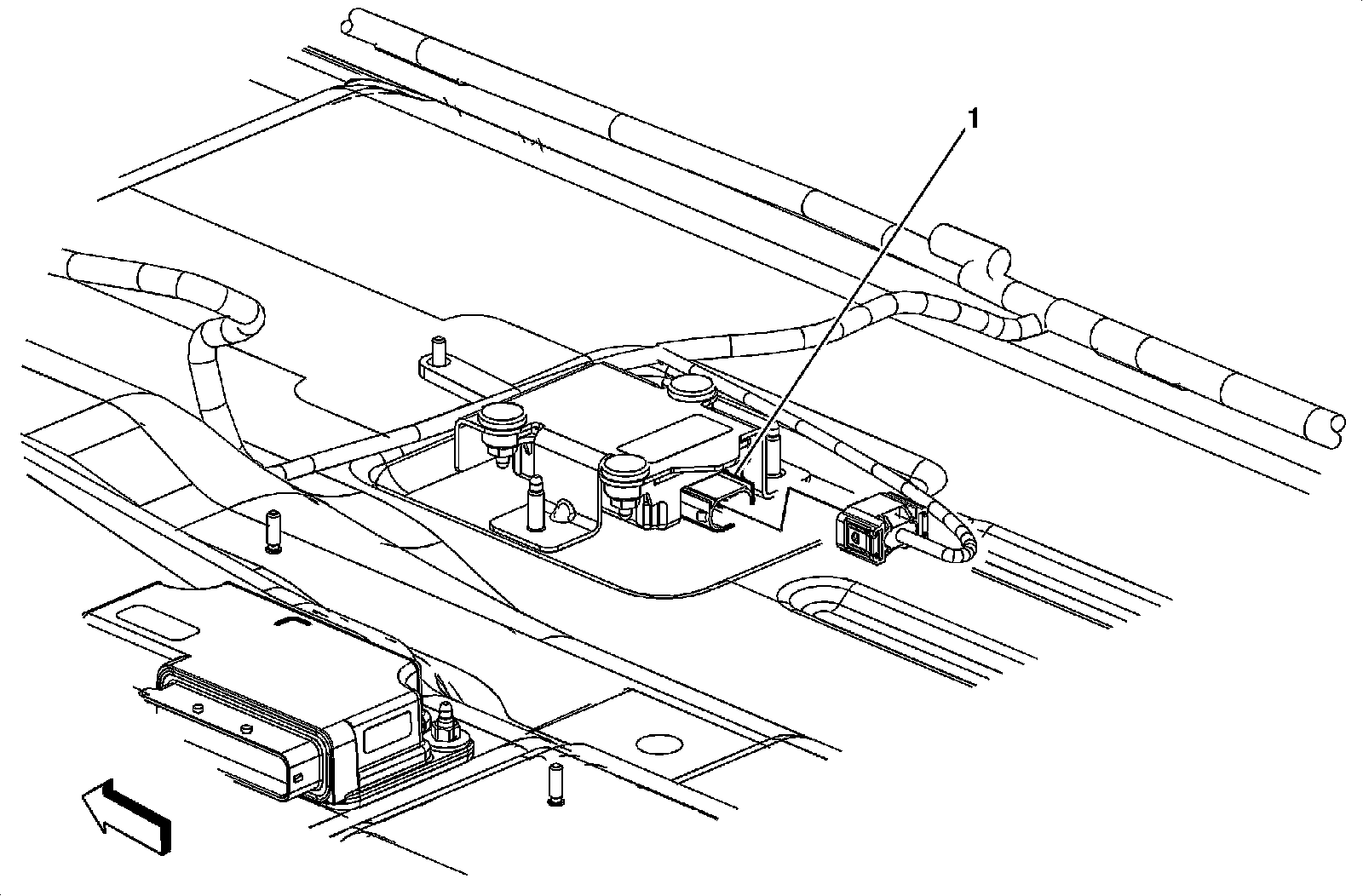

Under Front Passenger Seat

1 - Yaw Rate and Lateral Acceleration Sensor

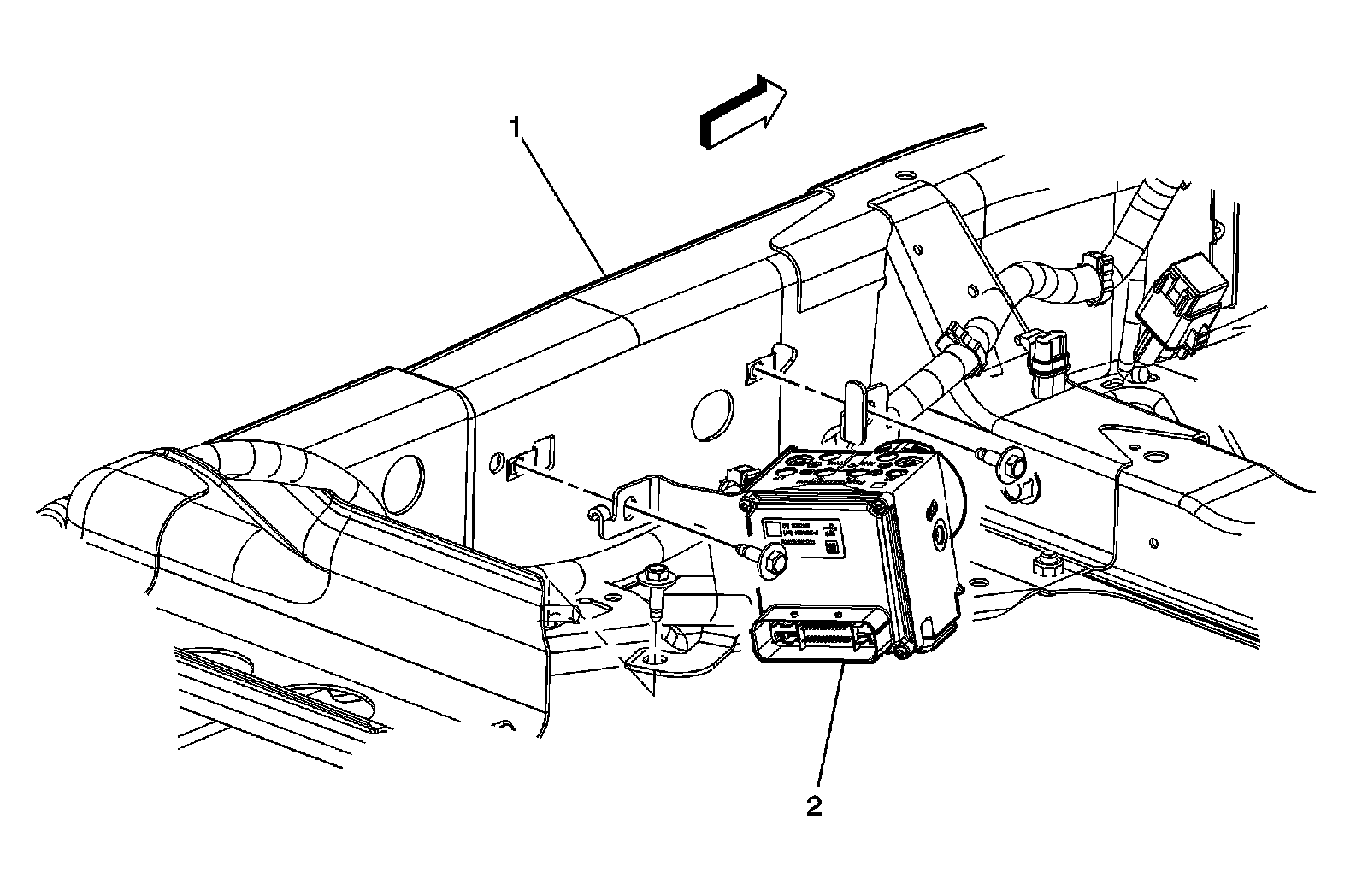

Electronic Brake Control Module

1 - Frame
2 - Electronic Brake Control Module (EBCM)
