Wiring Diagram Index

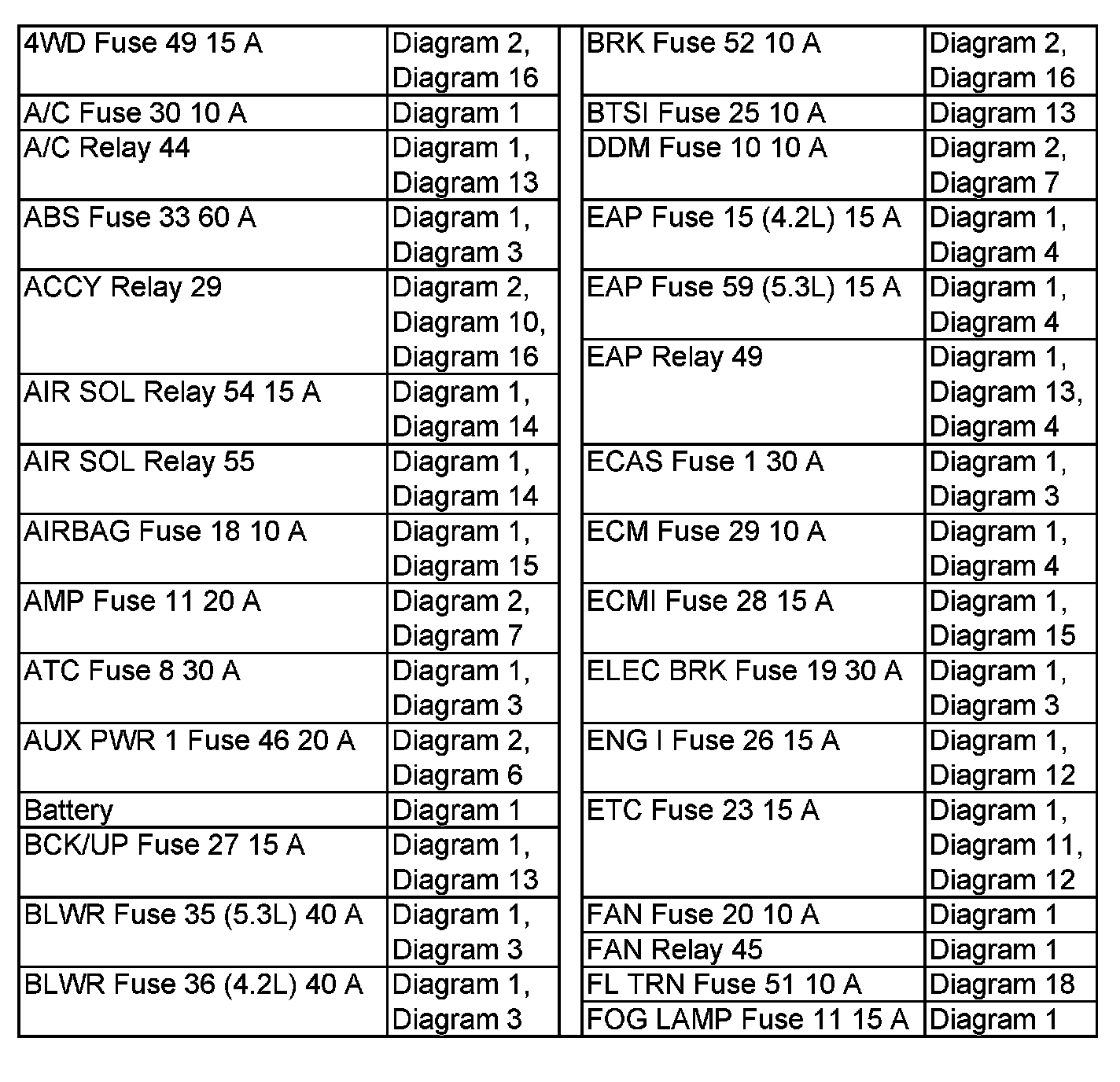

4WD Fuse - FOG LAMP Fuse:

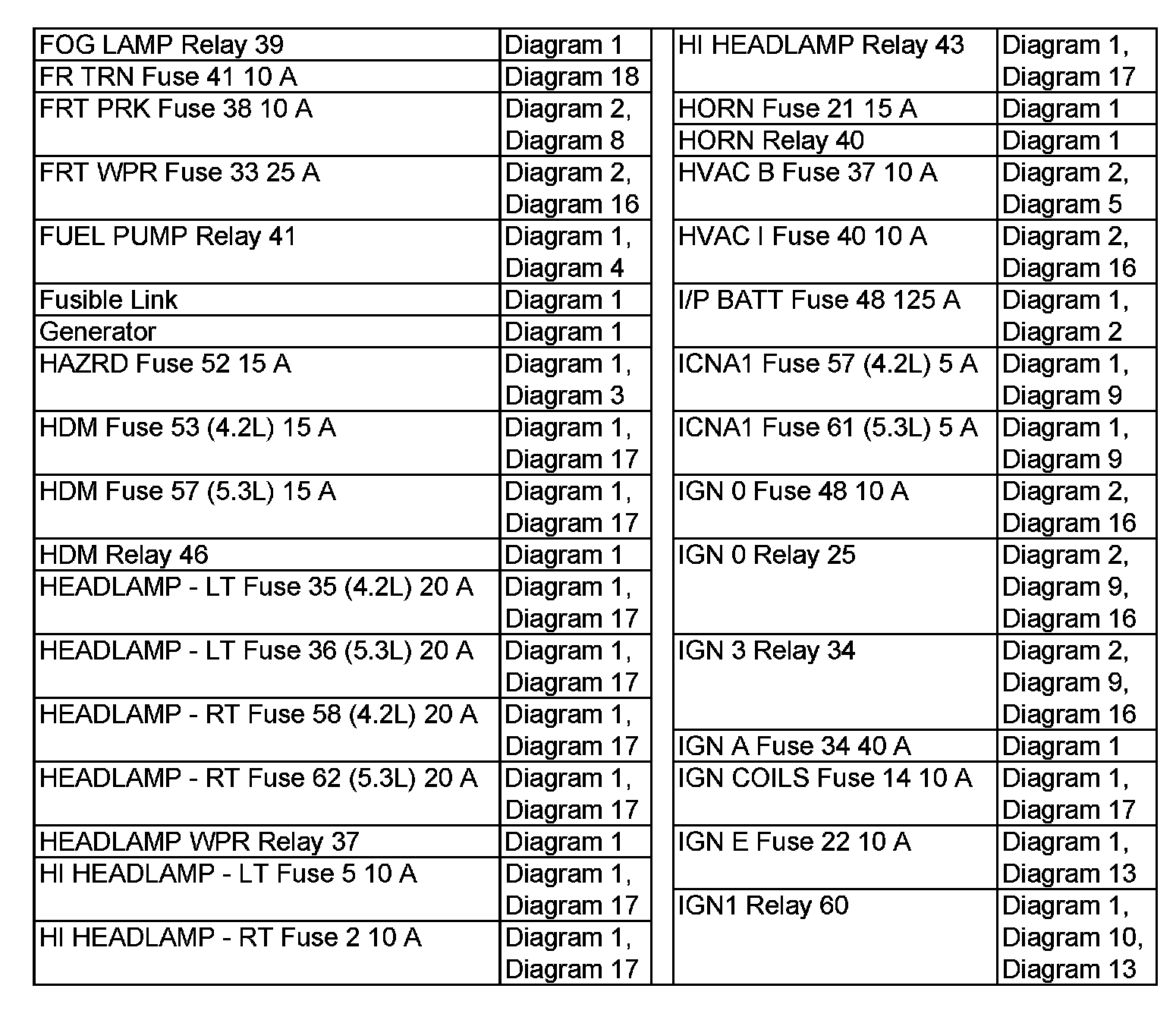

FOG LAMP Relay - IGN1 Relay:

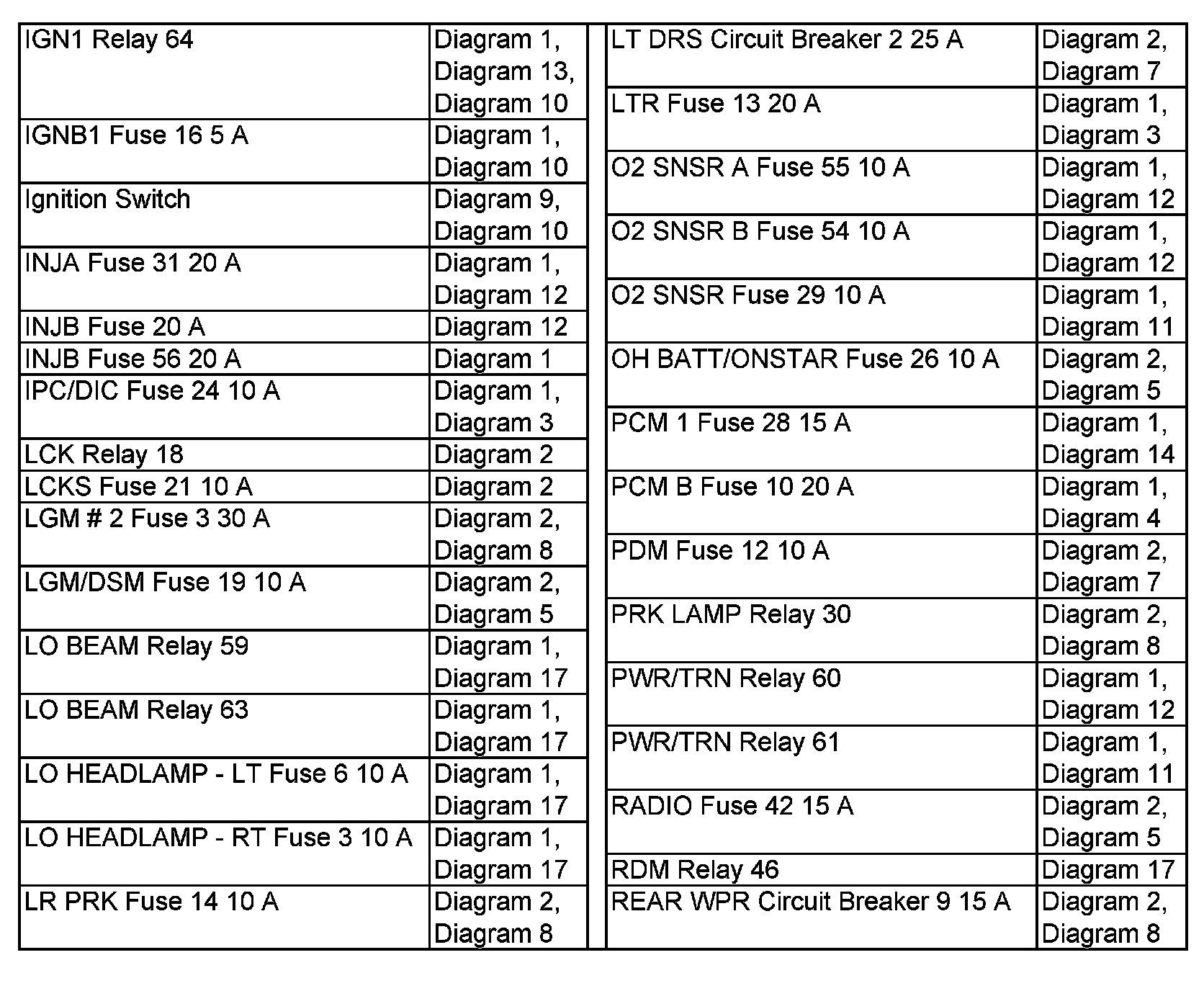

IGN1 Relay - REAR WPR Circuit Breaker:

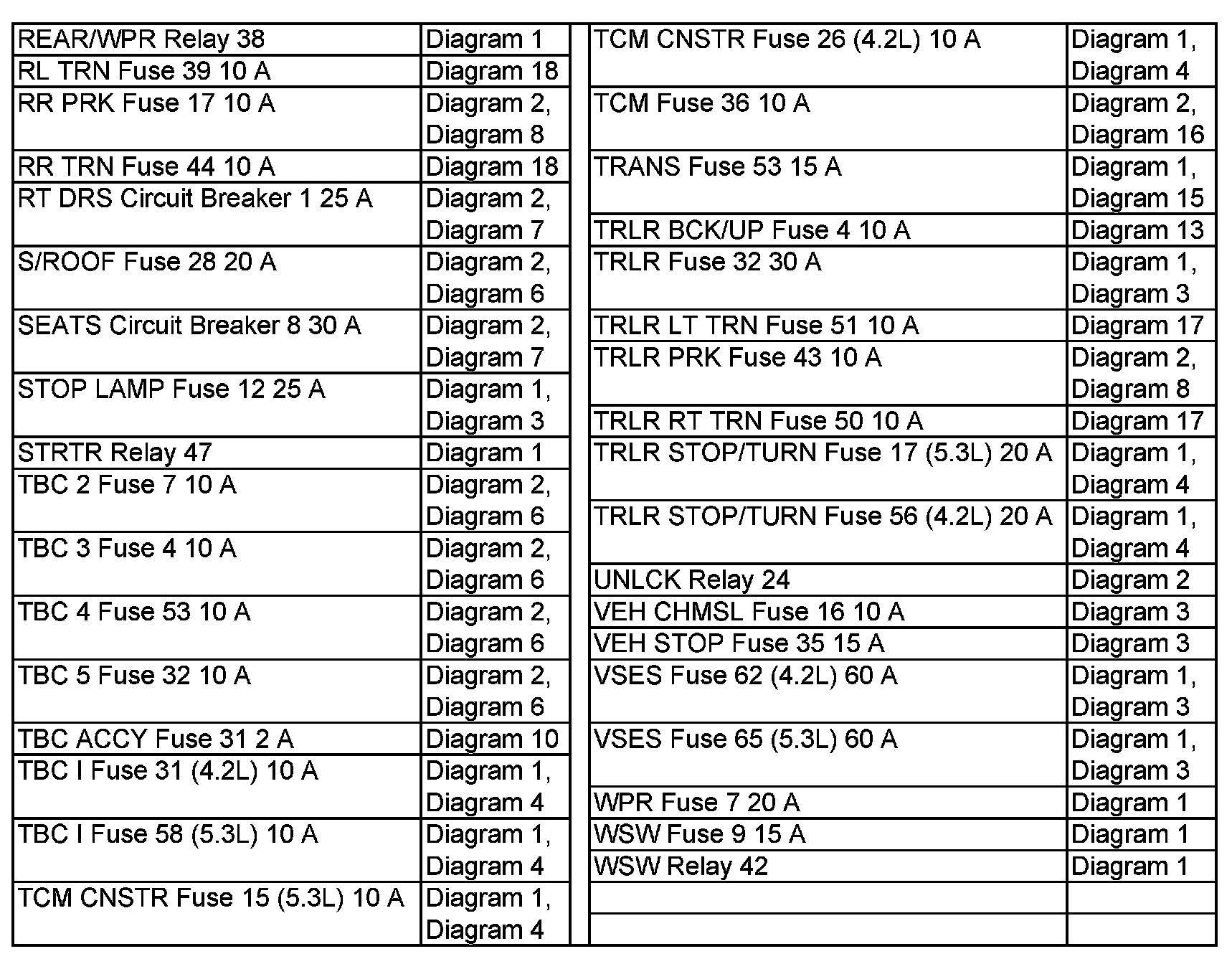

REAR/WPR Relay - WSW Relay:
