Cooling System

Engine Cooling Schematics

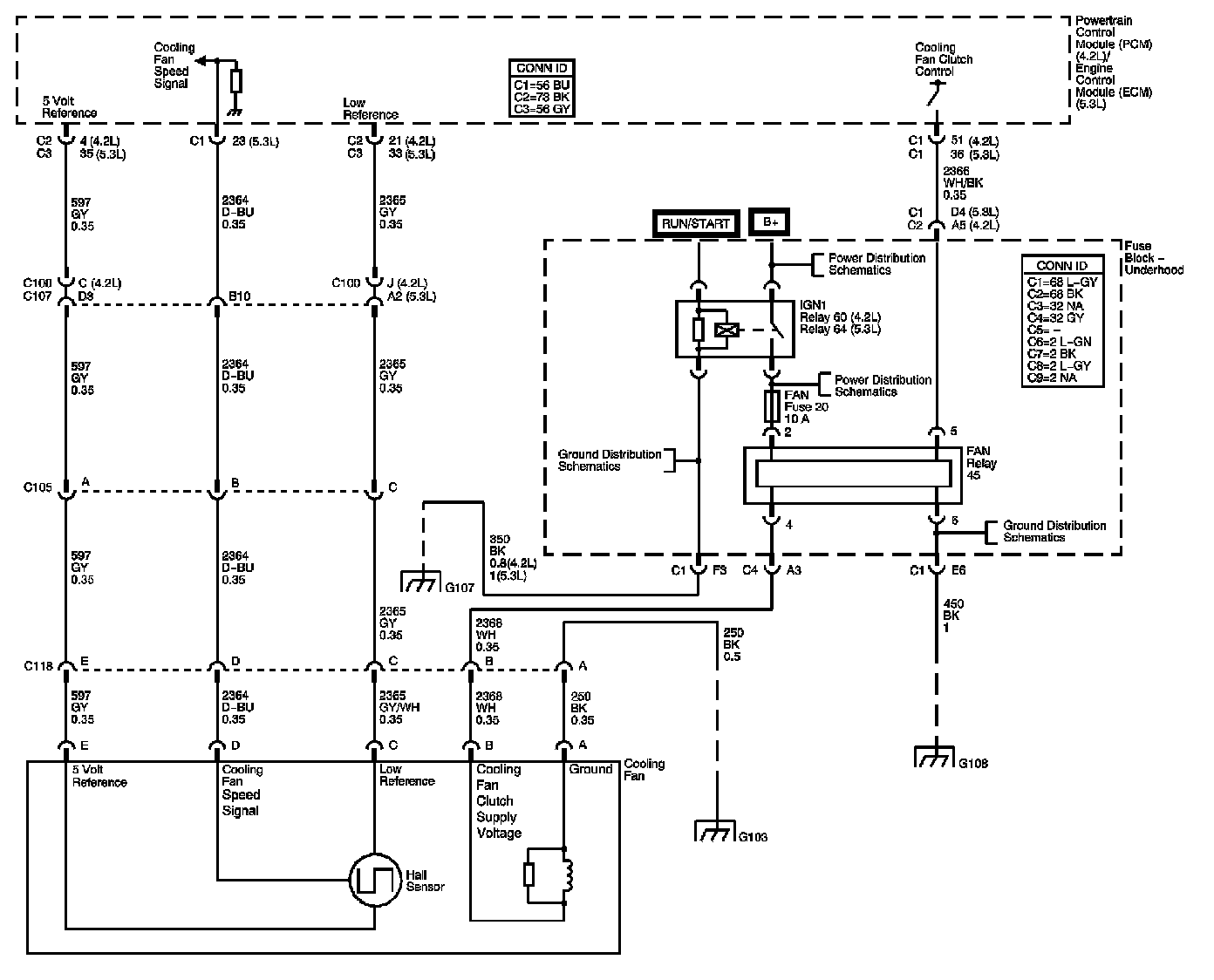

Engine Cooling System Schematic:

Locations: The locations for the connectors, Ground, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
