Home >> Saab >> 2006 >> 9-7X L6-4.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Inline Harness Connector End Views >> C200 - C299 >> C221

C221

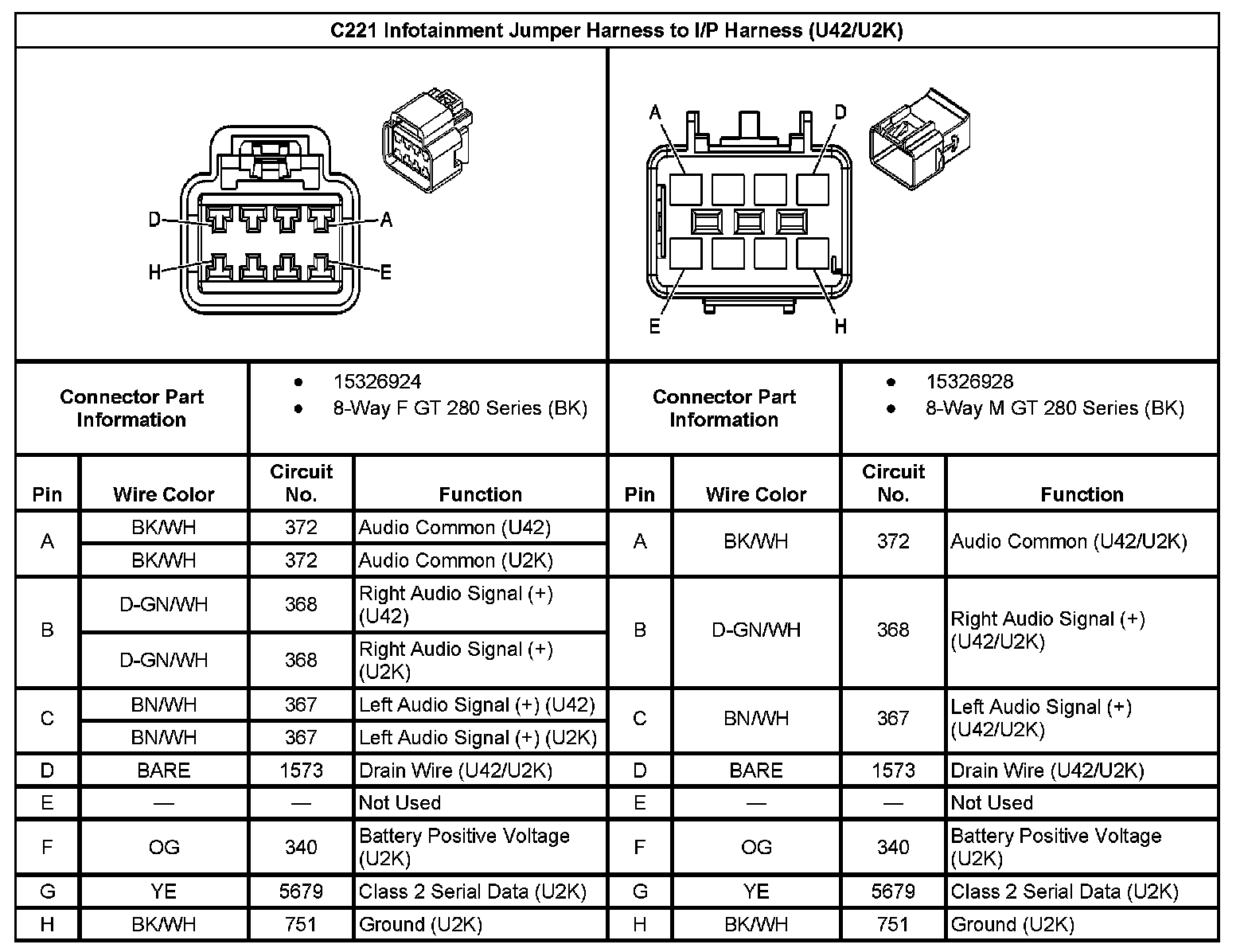

C221 Infotainment Jumper Harness to I/P Harness (With RPO Code U42/U2K):
