C103
C103

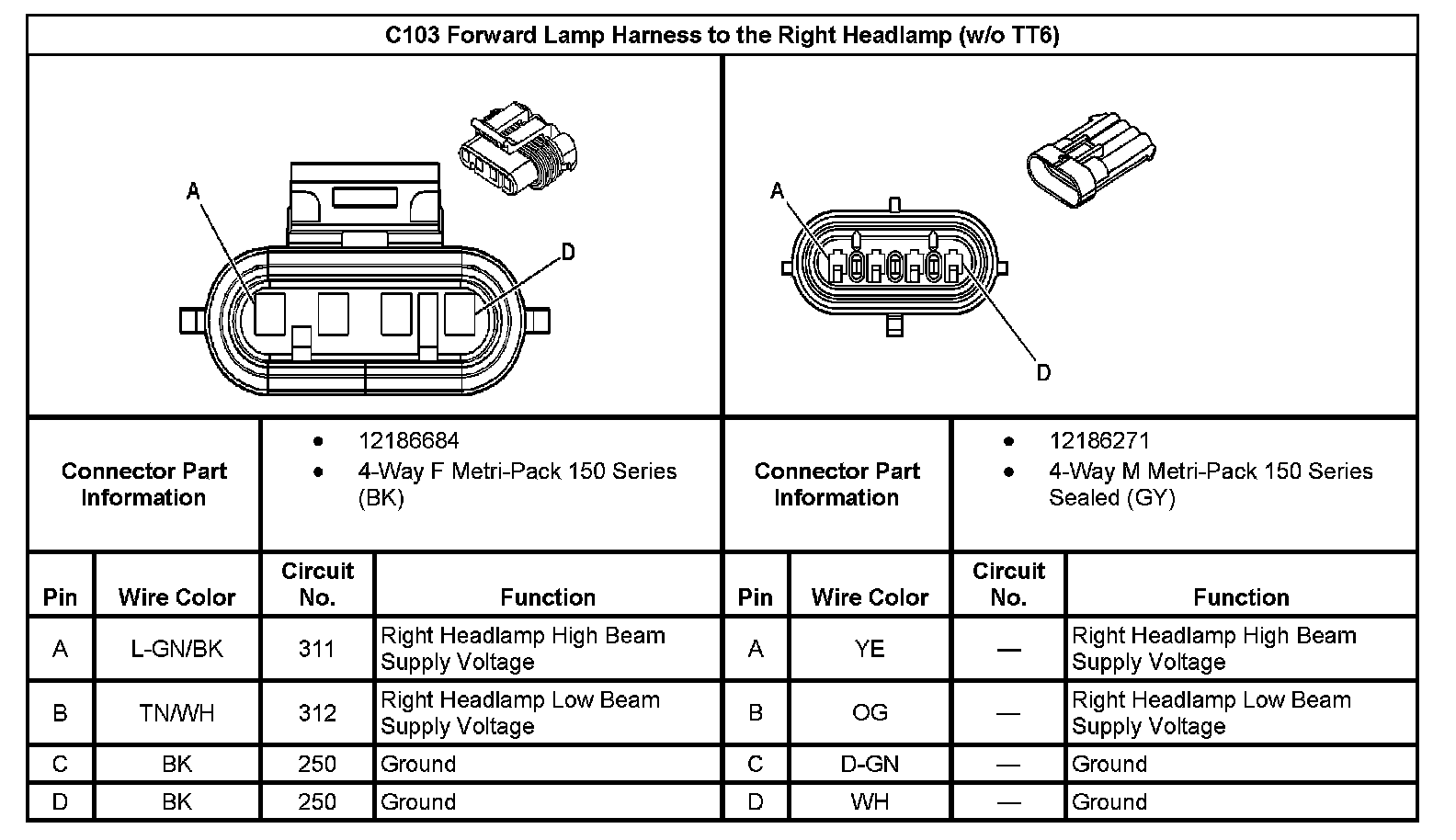

C103 Forward Lamp Harness to the Right Headlamp (Without RPO Code TT6):
C103 Forward Lamp Harness to the Right Headlamp (With RPO Code TT6):
