Electrical Diagrams

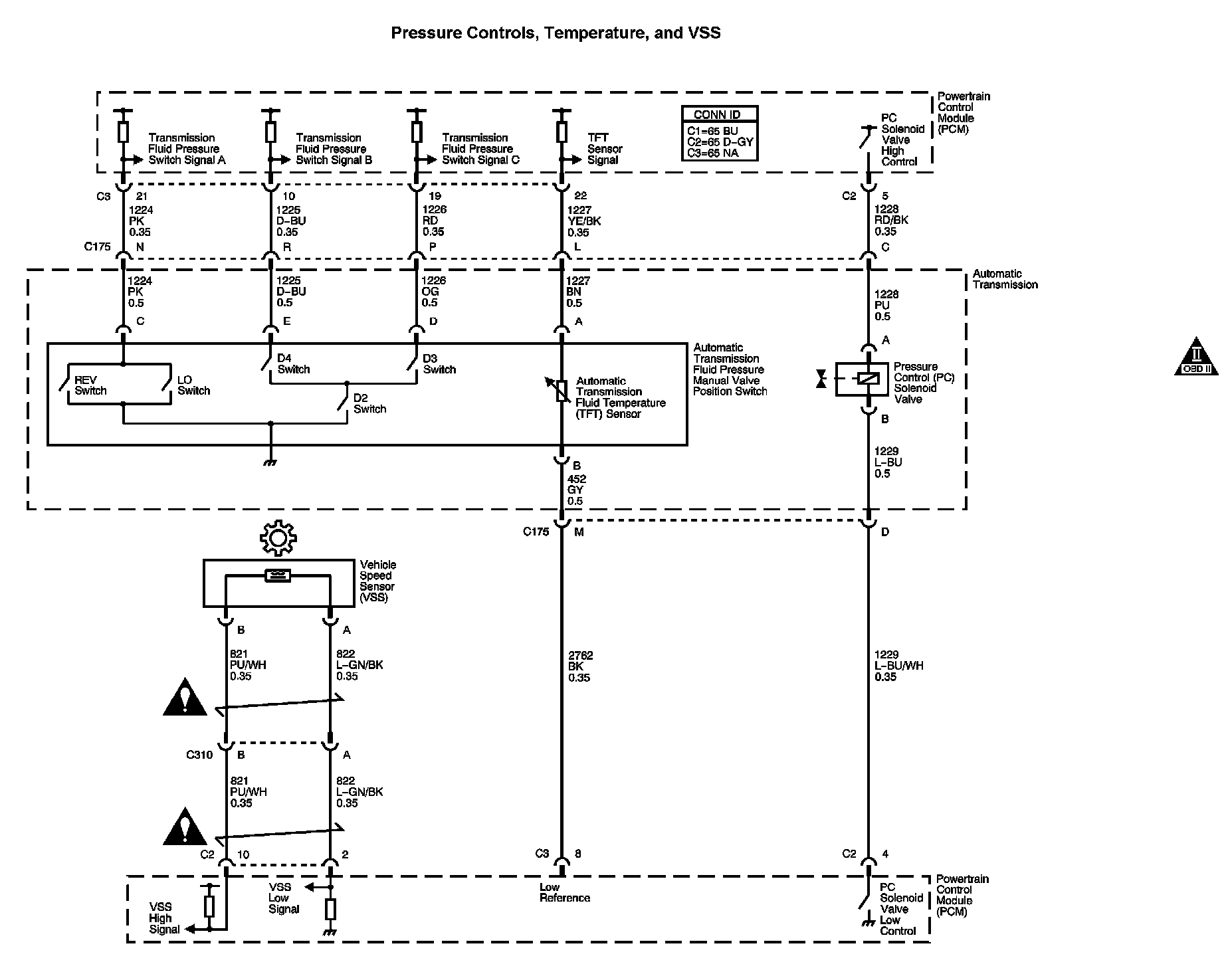

Automatic Transmission Controls Diagram 1:

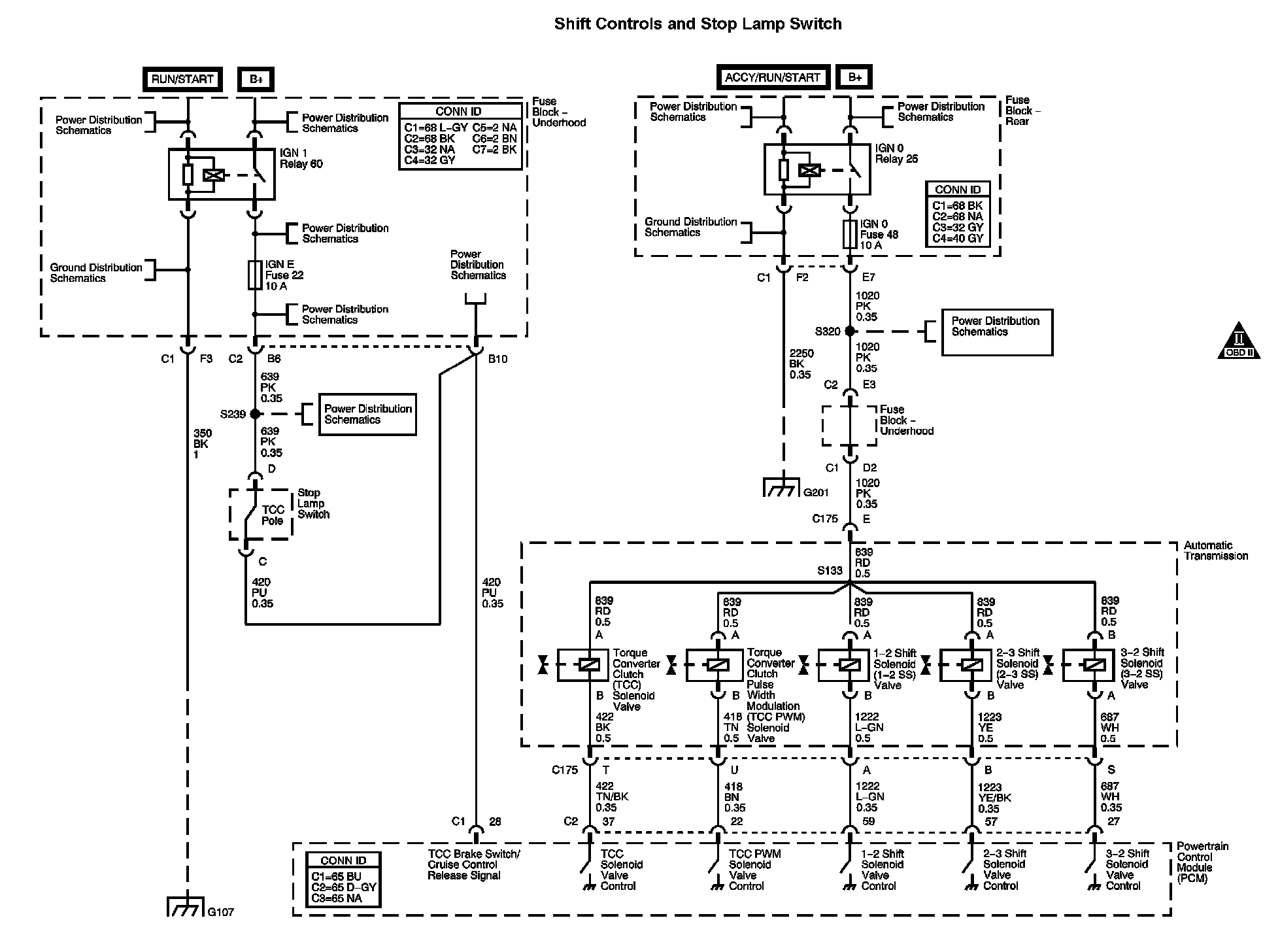

Automatic Transmission Controls Diagram 2:




Automatic Transmission Controls Diagram 3:






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
