Wiring Diagram Index

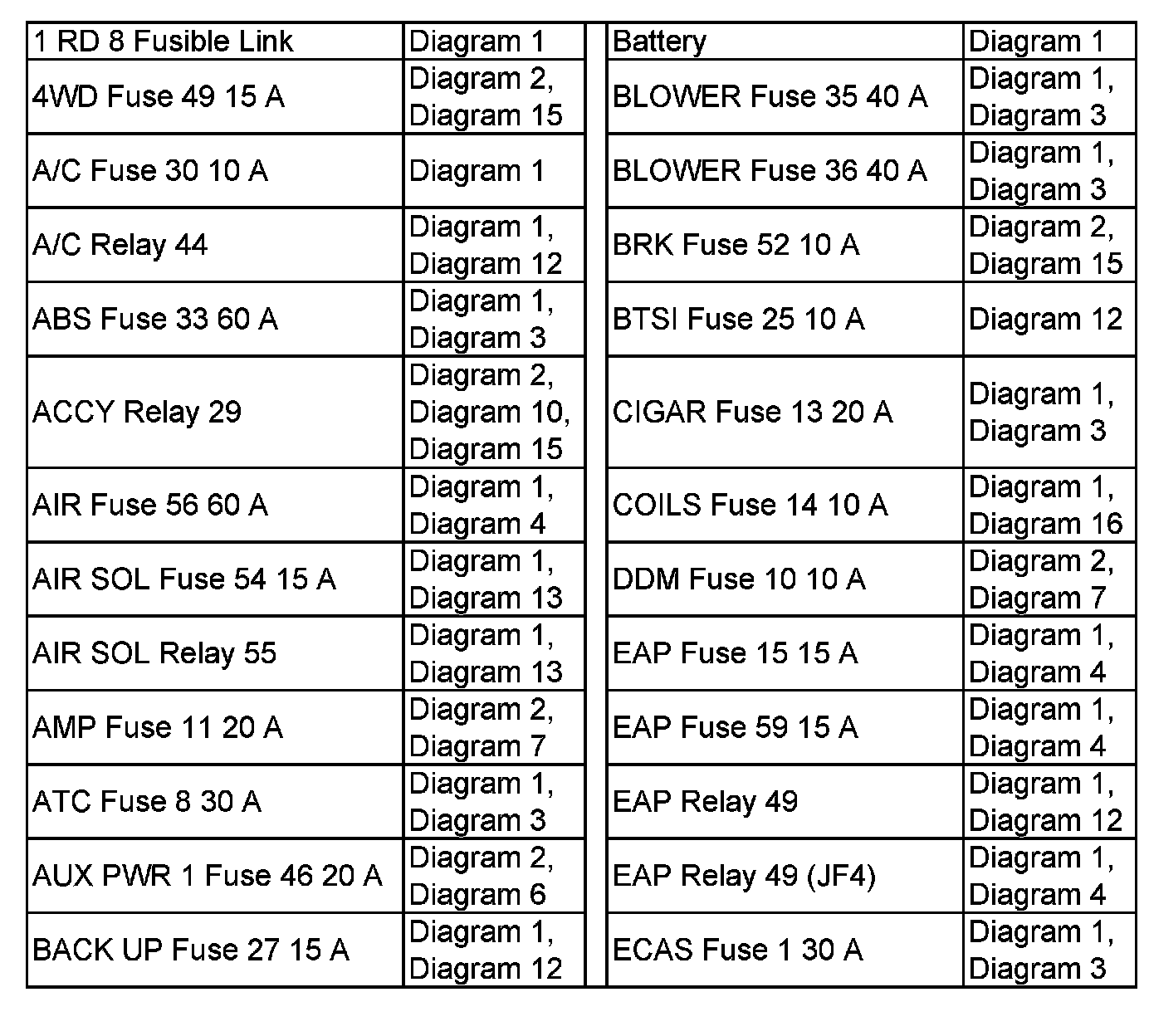

1 RD 8 Fusible - ECAS Fuse:

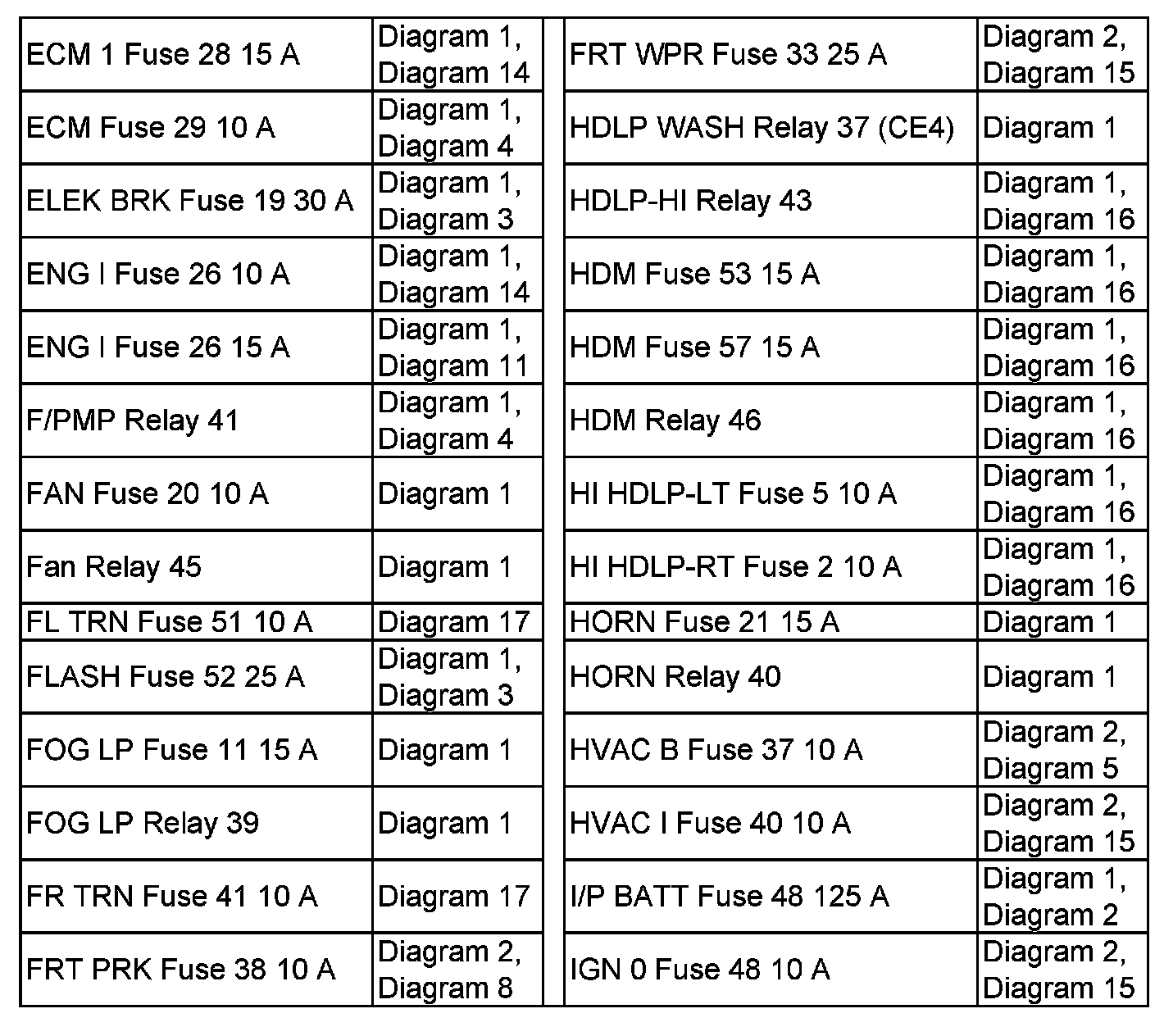

ECM 1 Fuse - IGN 0 Fuse:

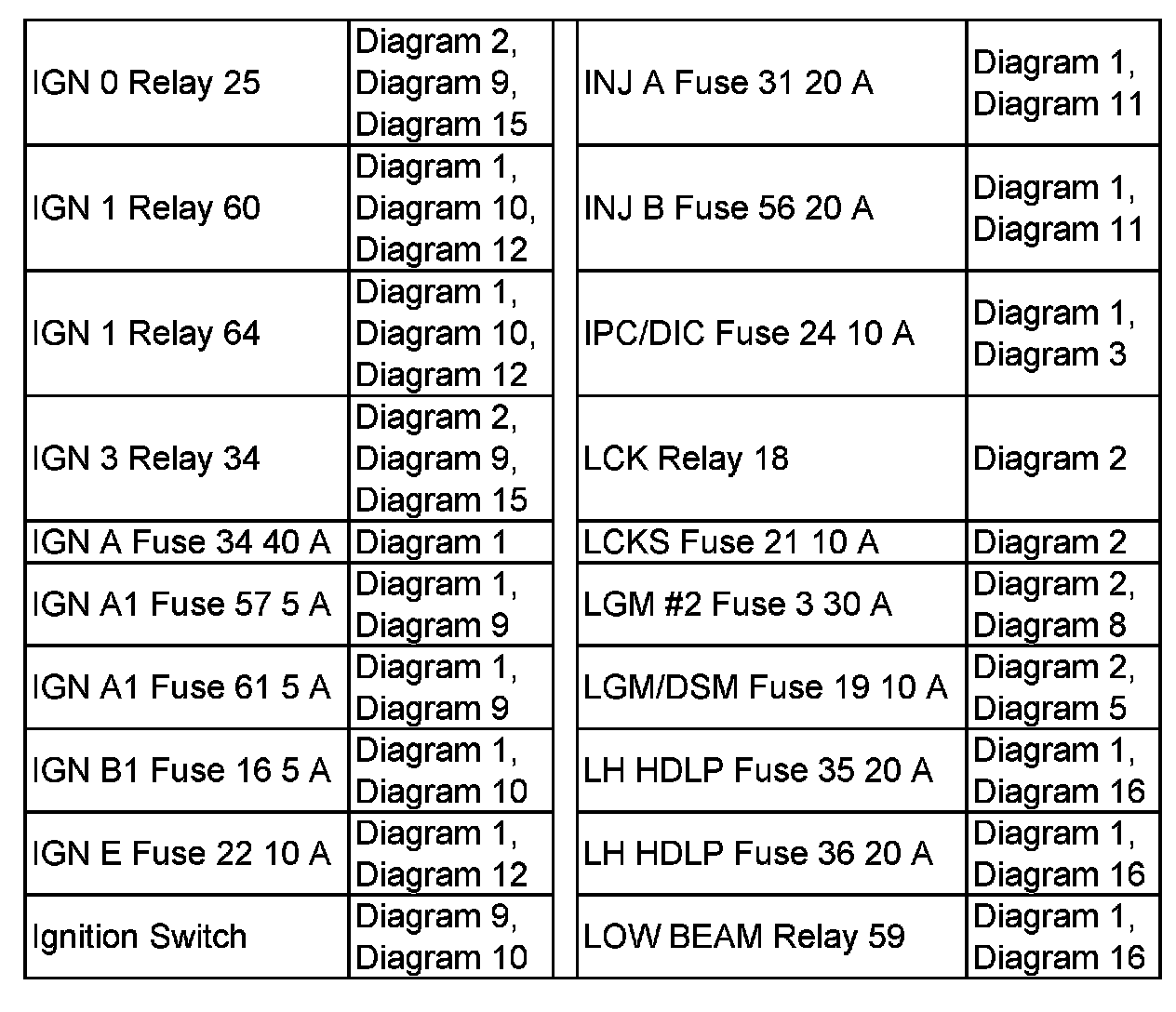

IGN 0 Relay - LOW BEAM:

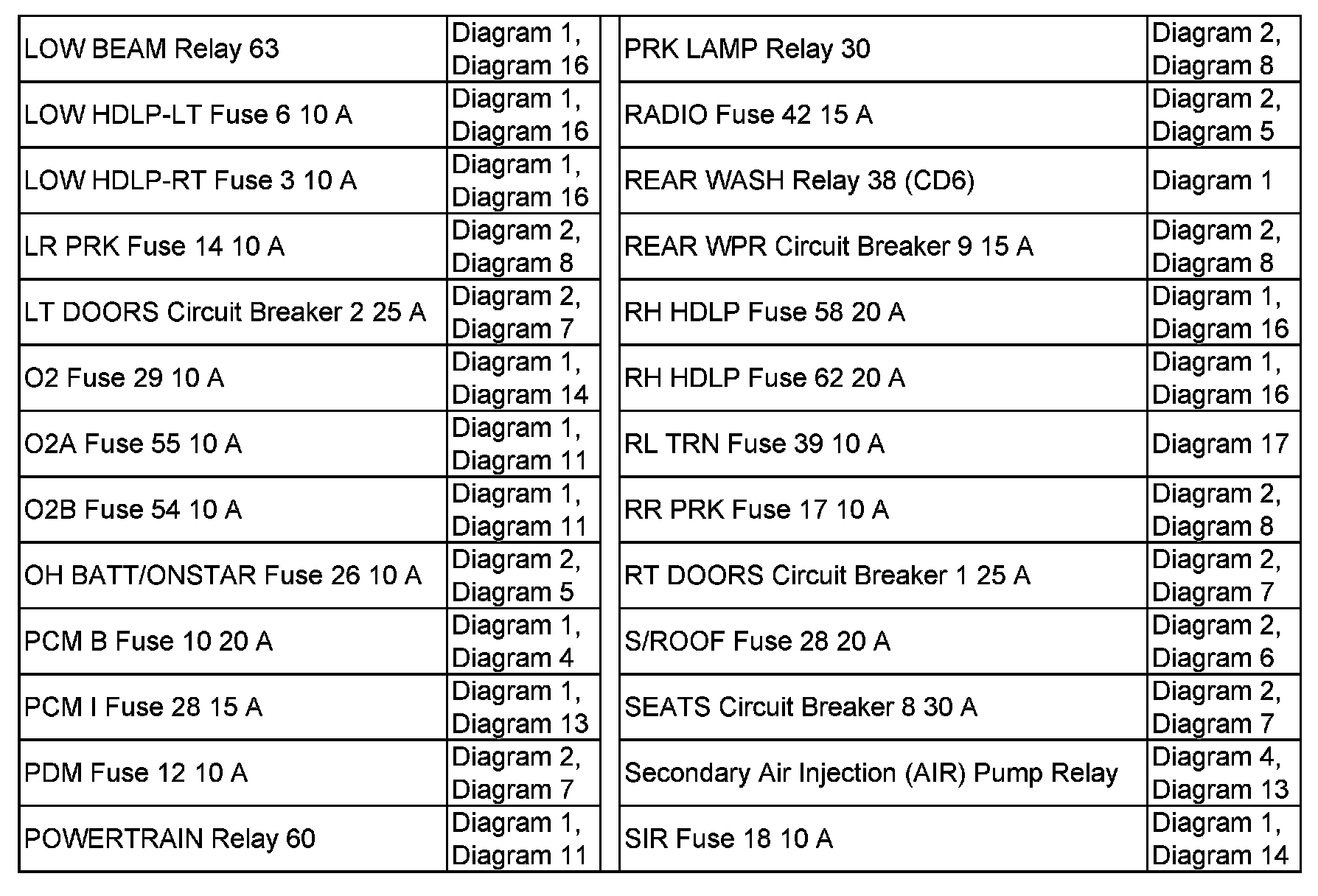

LOW BEAM - SIR Fuse:

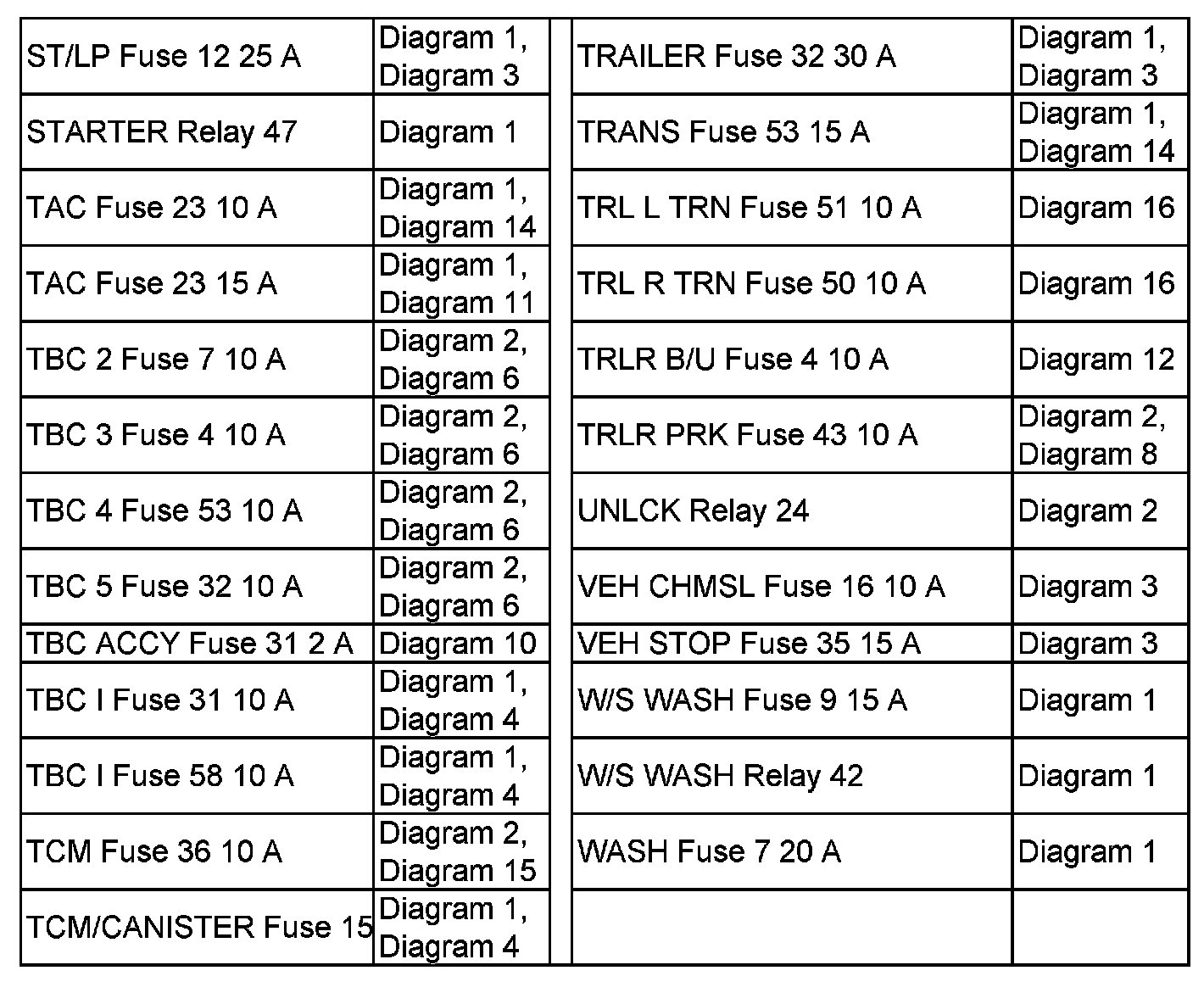

ST/LP Fuse - WASH Fuse:
