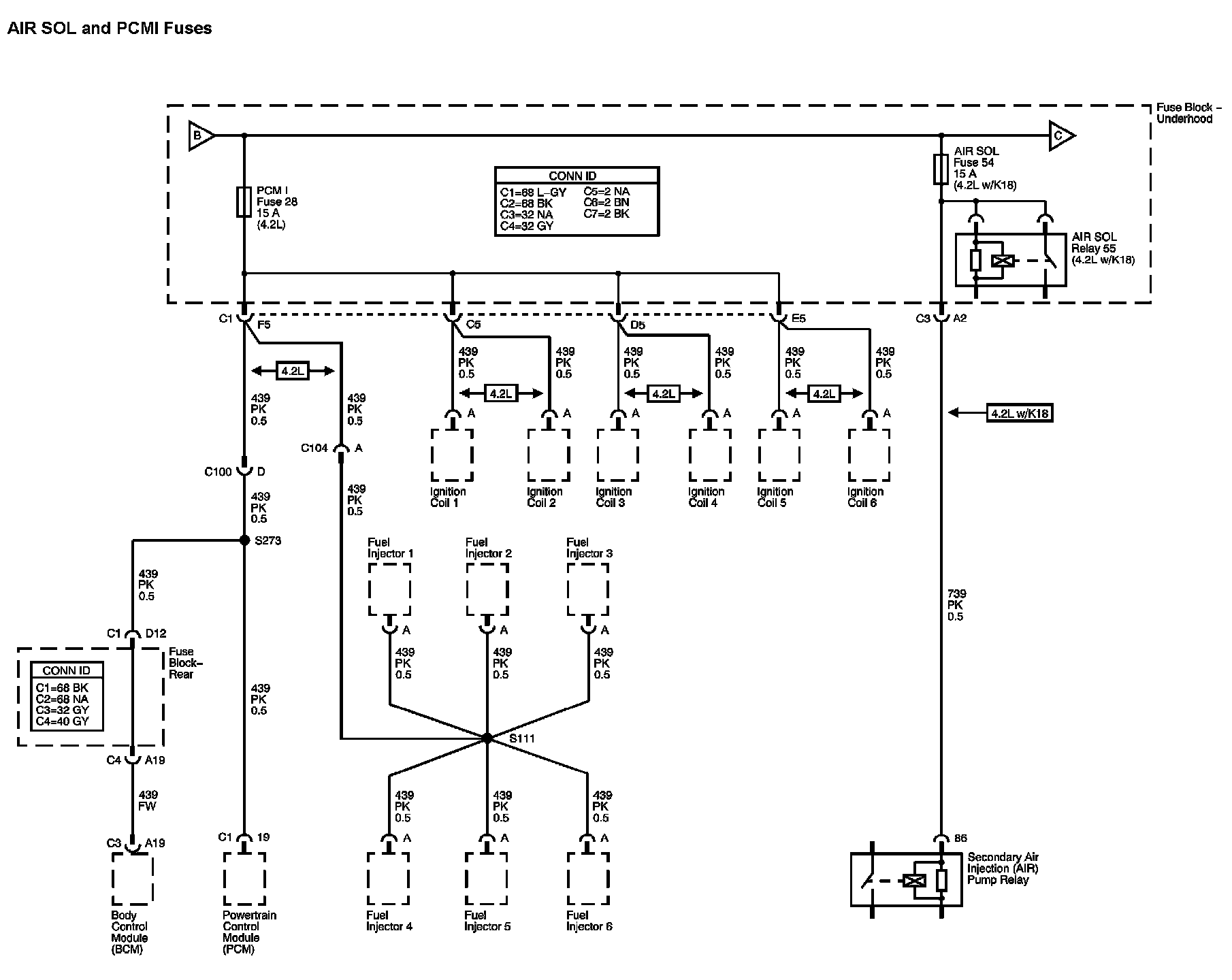

Power Distribution Diagram 13

Power Distribution Diagram 13:

Next Diagram Power Distribution Diagram 14

Previous Diagram Power Distribution Diagram 12

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
