Home >> Saab >> 2005 >> 9-7X L6-4.2L >> Repair and Diagnosis >> Maintenance >> Fuses and Circuit Breakers >> Fuse >> Locations >> Fuse Block - Underhood

Fuse Block - Underhood

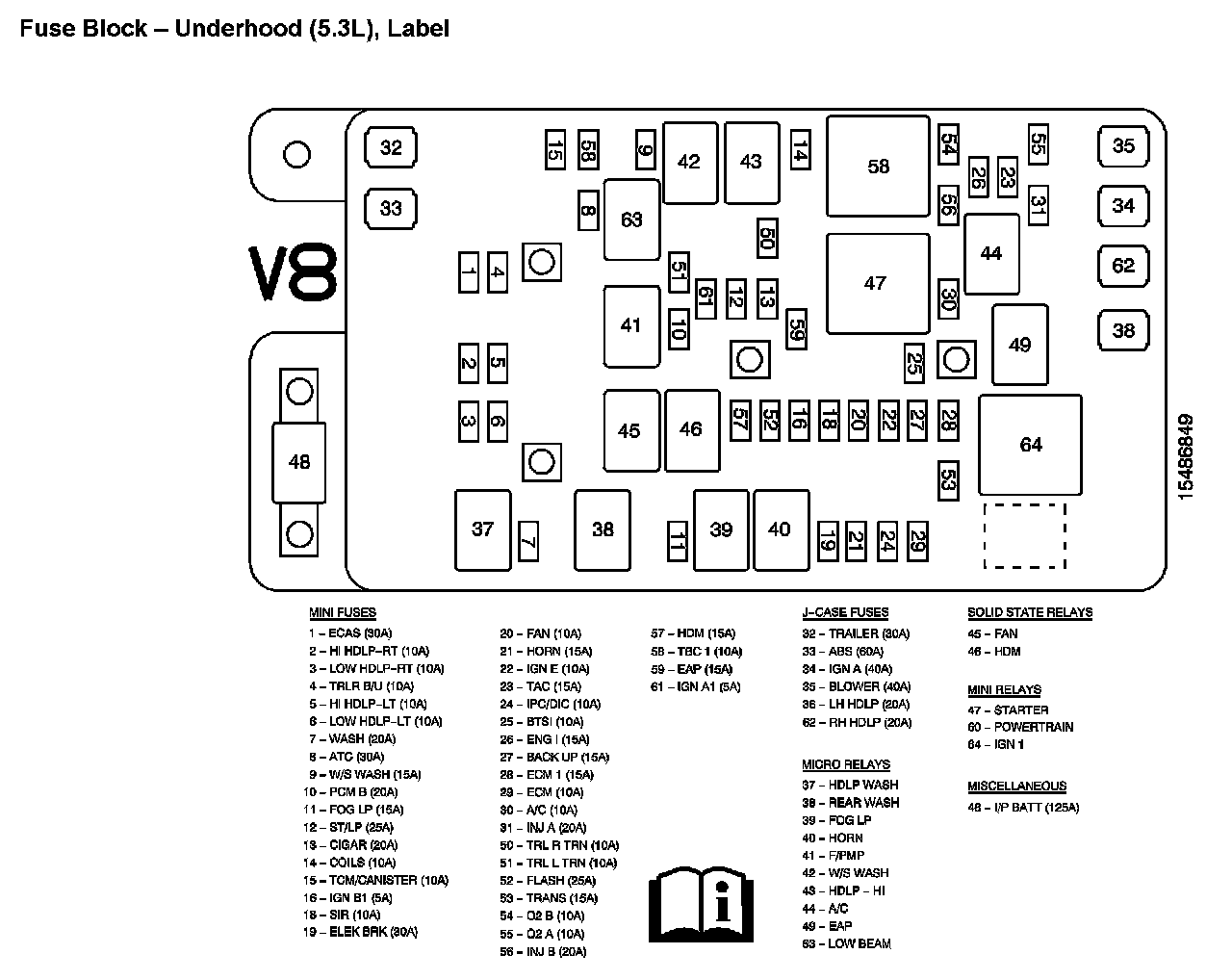

Location View:

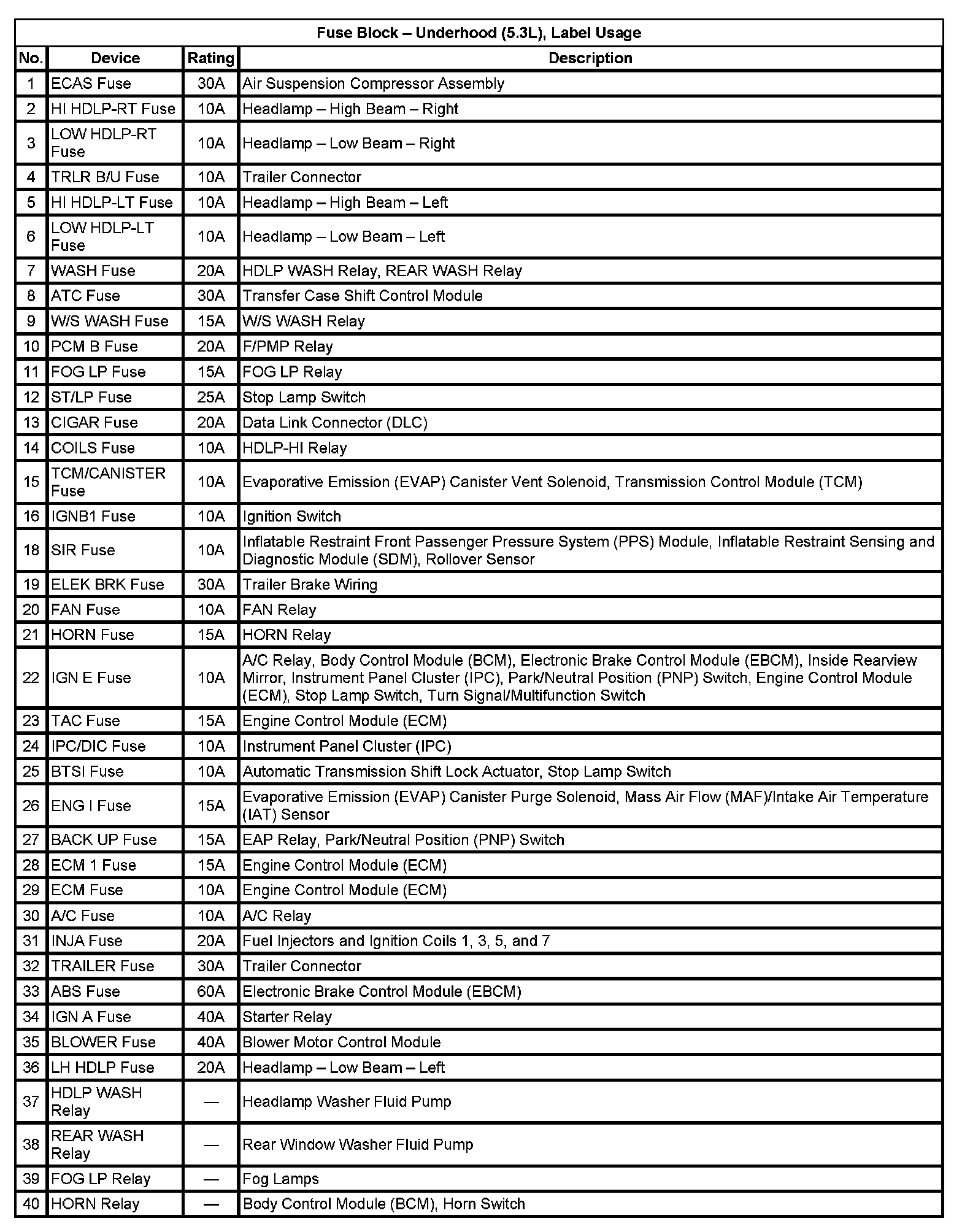

Application Table Part 1:

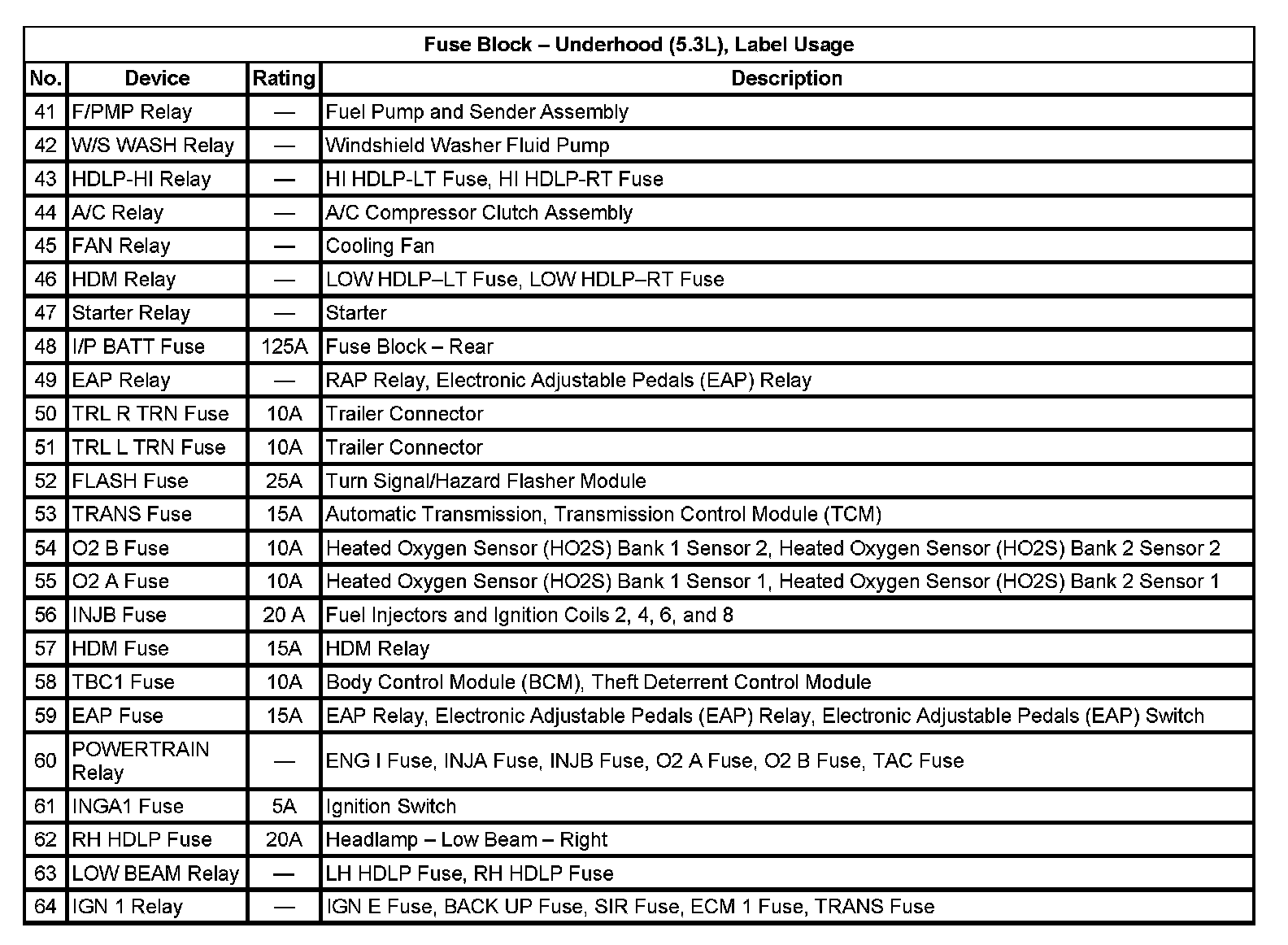

Application Table Part 2:

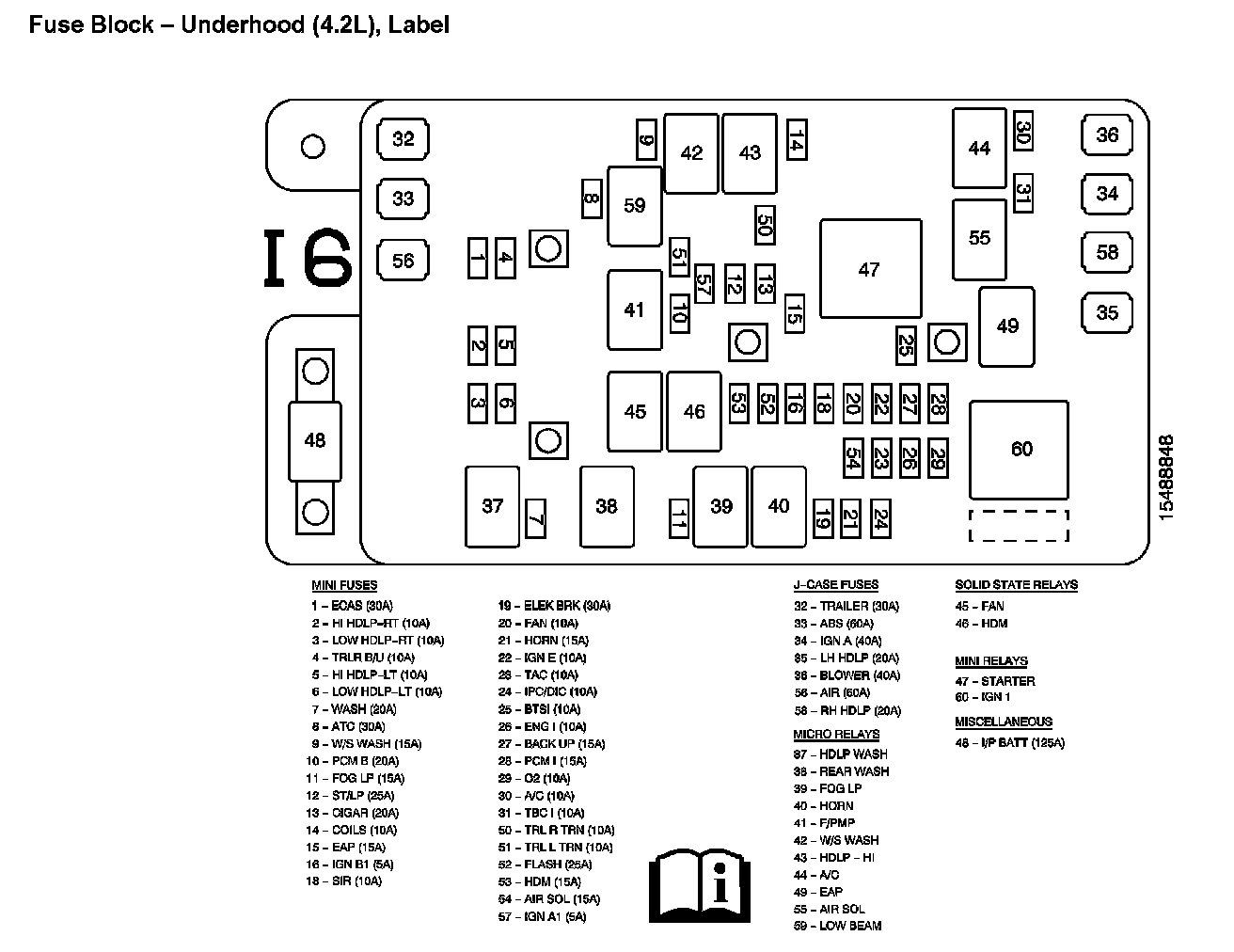

Location View:

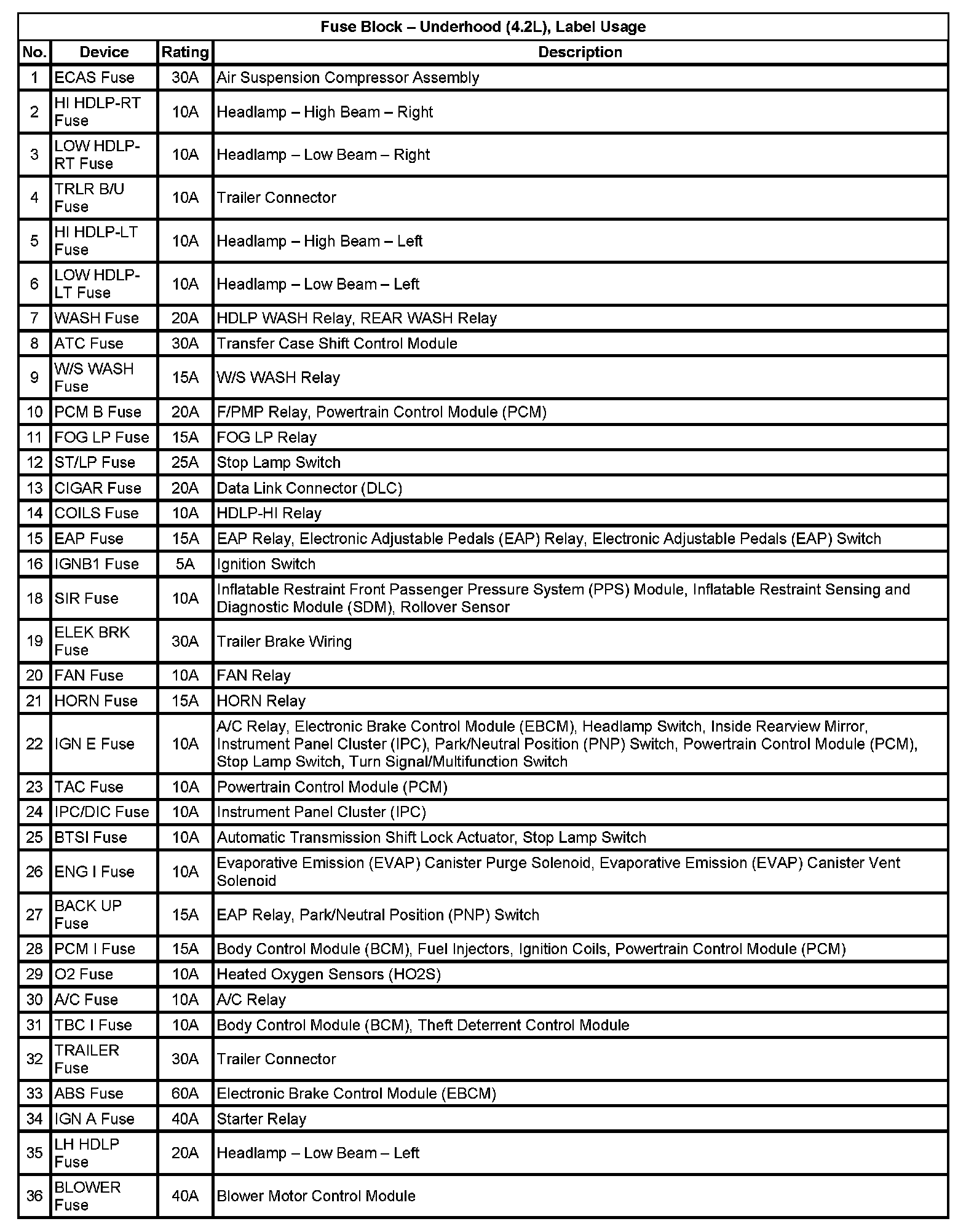

Application Table Part 1:

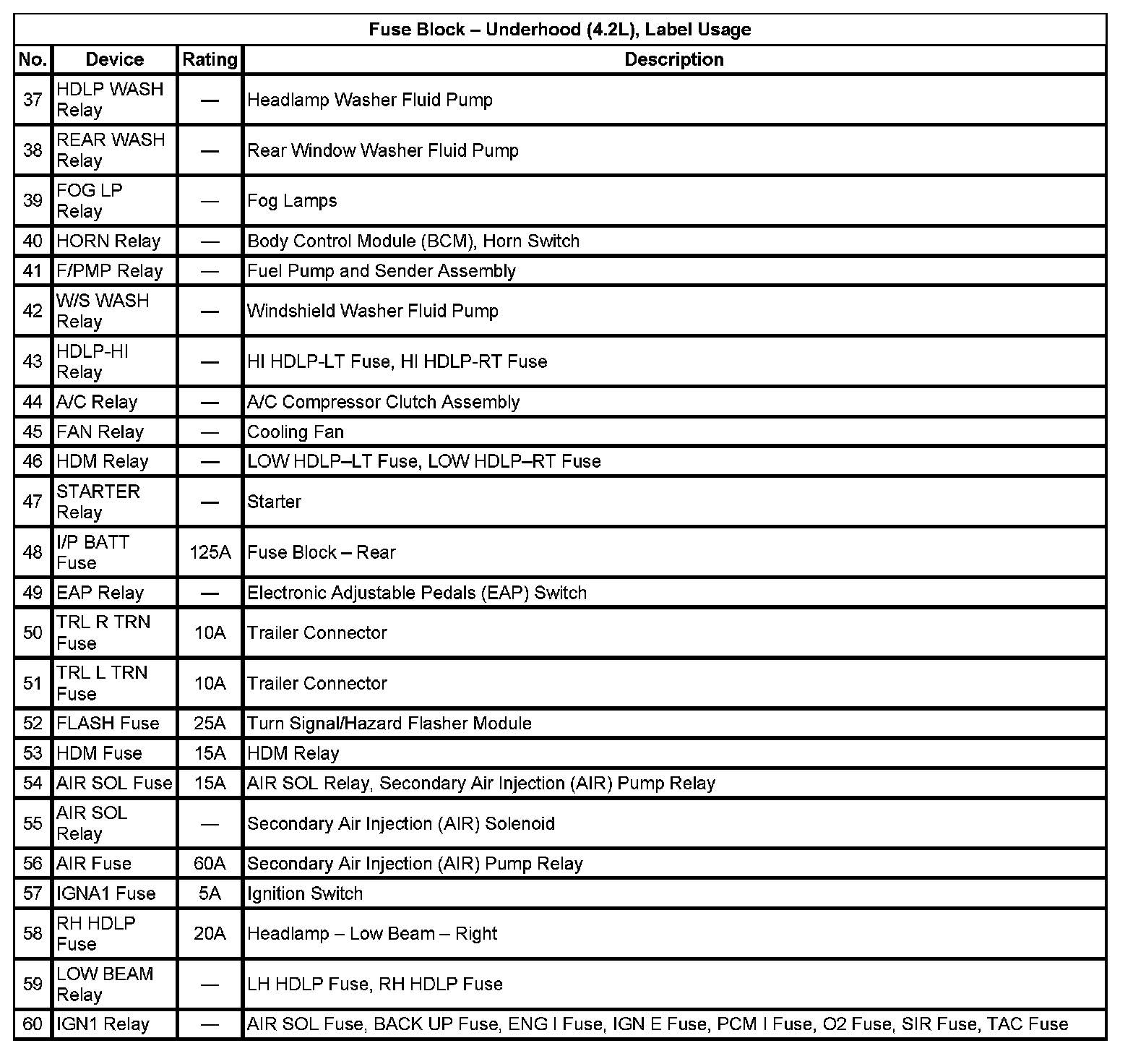

Application Table Part 2:
