Air Door Actuator / Motor: Diagrams



Component Connector End Views

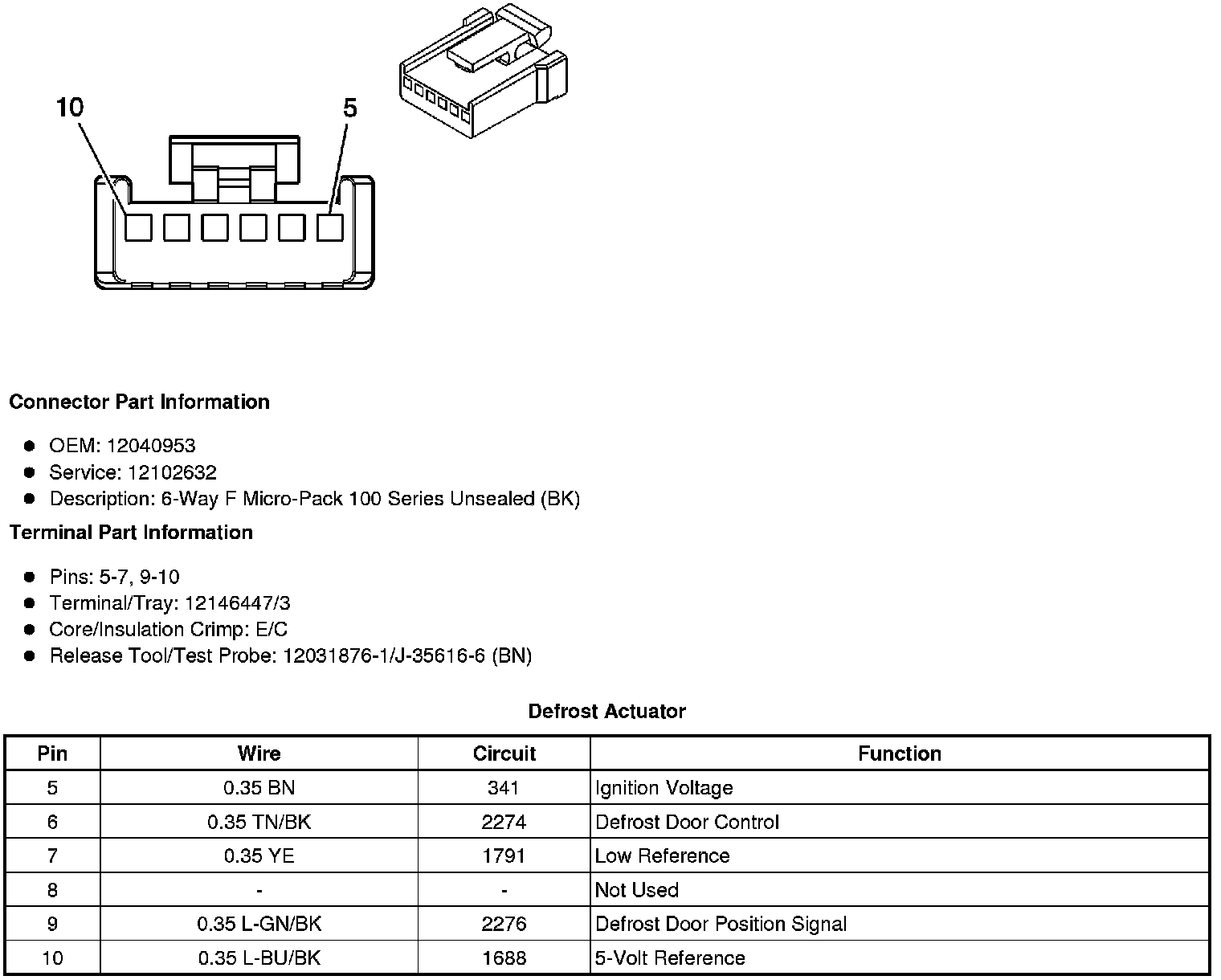

Defrost Actuator

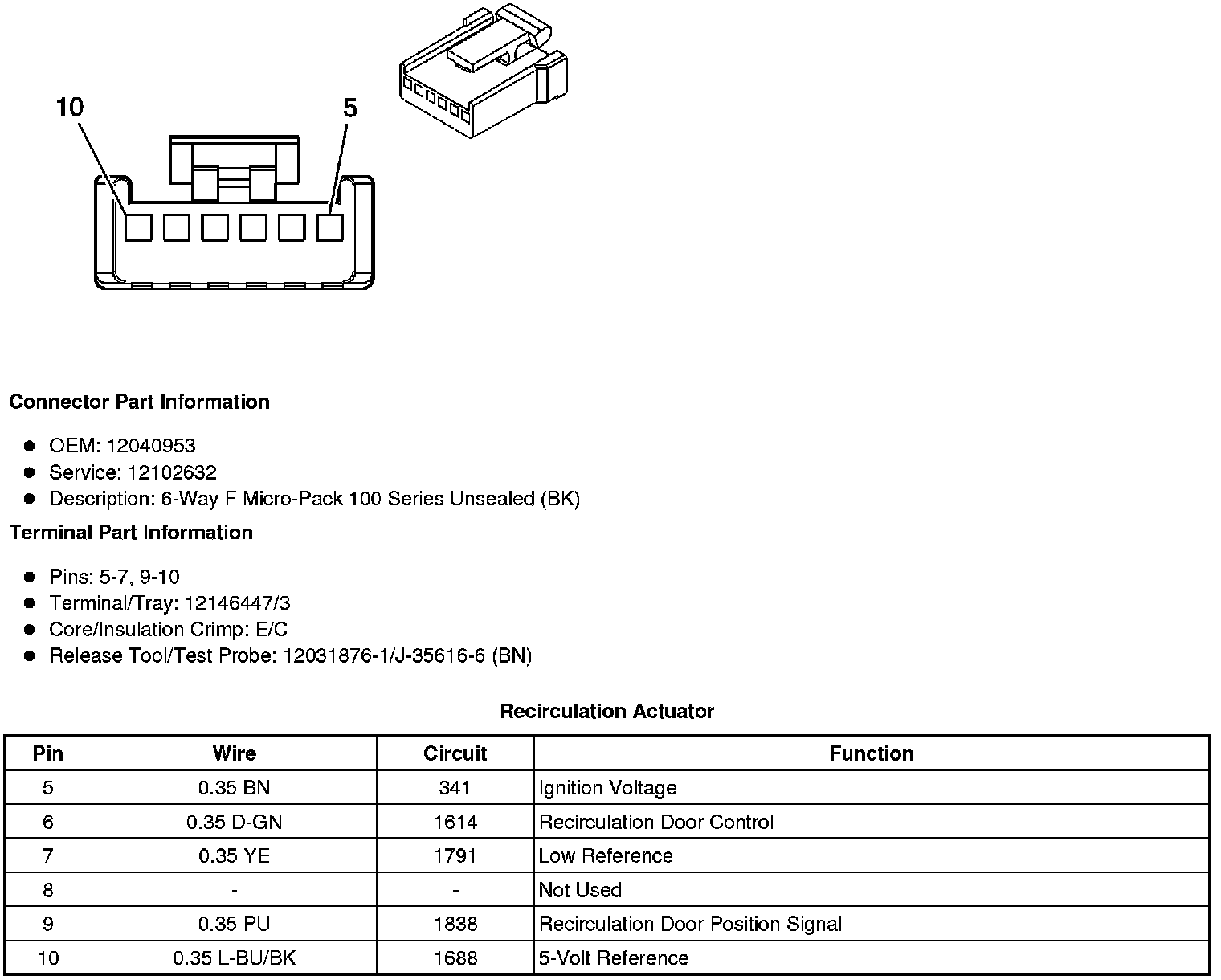

Recirculation Actuator
