Home >> Saab >> 2005 >> 9-7X L6-4.2L >> Repair and Diagnosis >> Diagrams >> Splices >> Splices/Splice Packs By Number >> S200 - S299 >> S232

S232

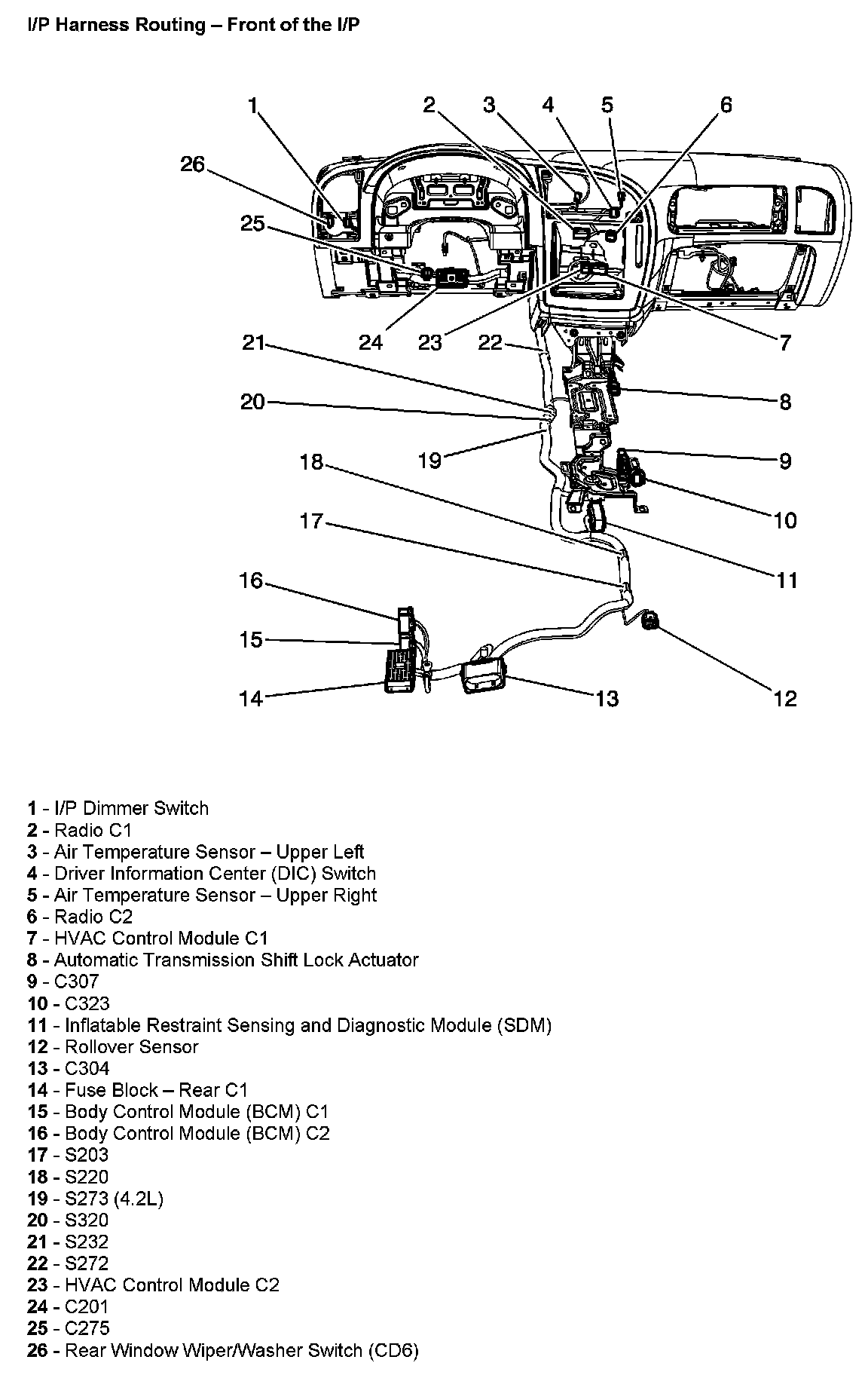

I/P Harness Routing - Front Of The I/P:
