Home >> Saab >> 2005 >> 9-7X L6-4.2L >> Repair and Diagnosis >> Diagrams >> Splices >> Splices/Splice Packs By Number >> S100 - S199 >> S110

S110

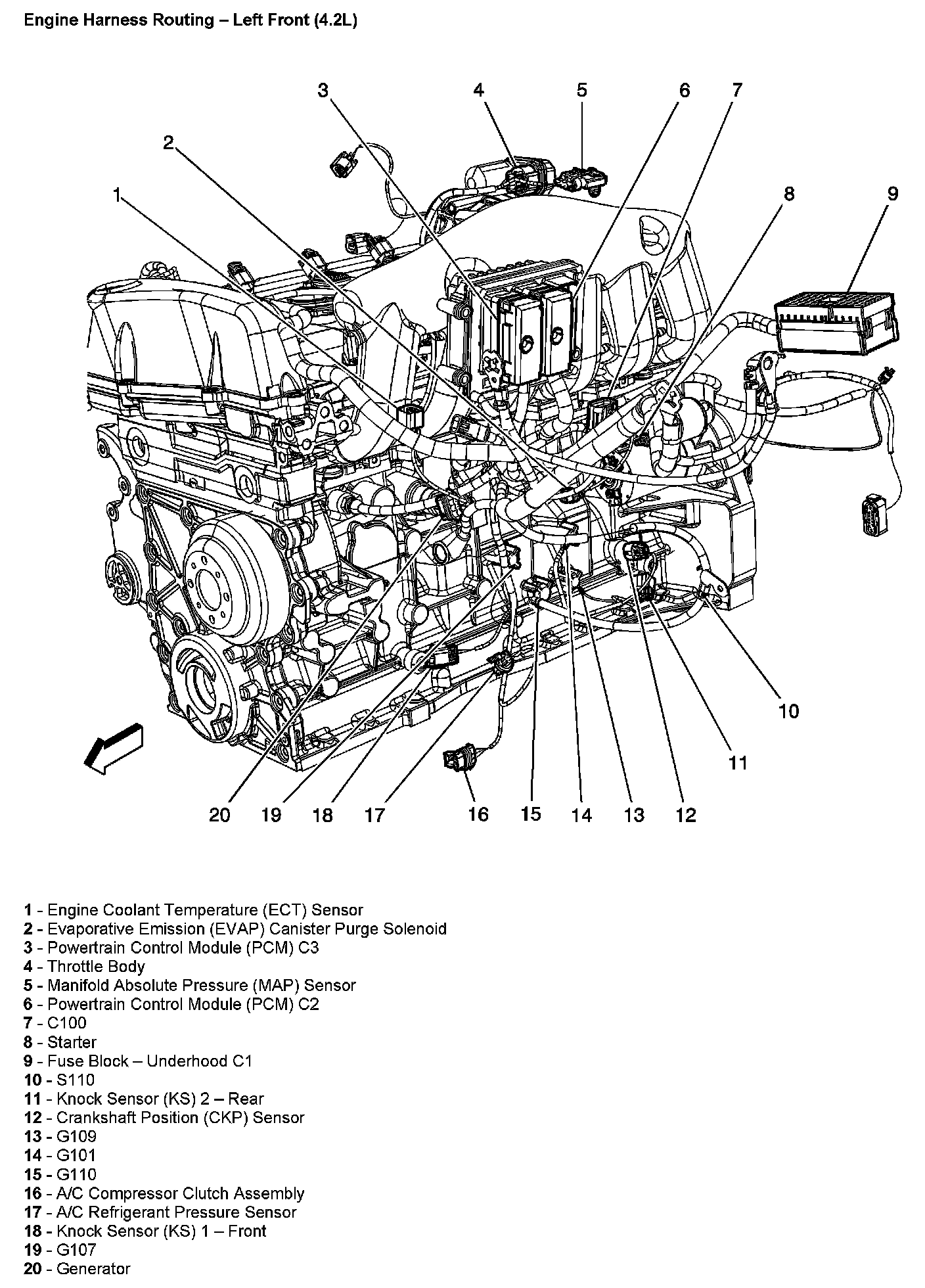

Engine Harness Routing - Left Front:
