Home >> Saab >> 2005 >> 9-7X L6-4.2L >> Repair and Diagnosis >> Diagrams >> Harness >> Door Views >> Left Rear Door Harness Routing

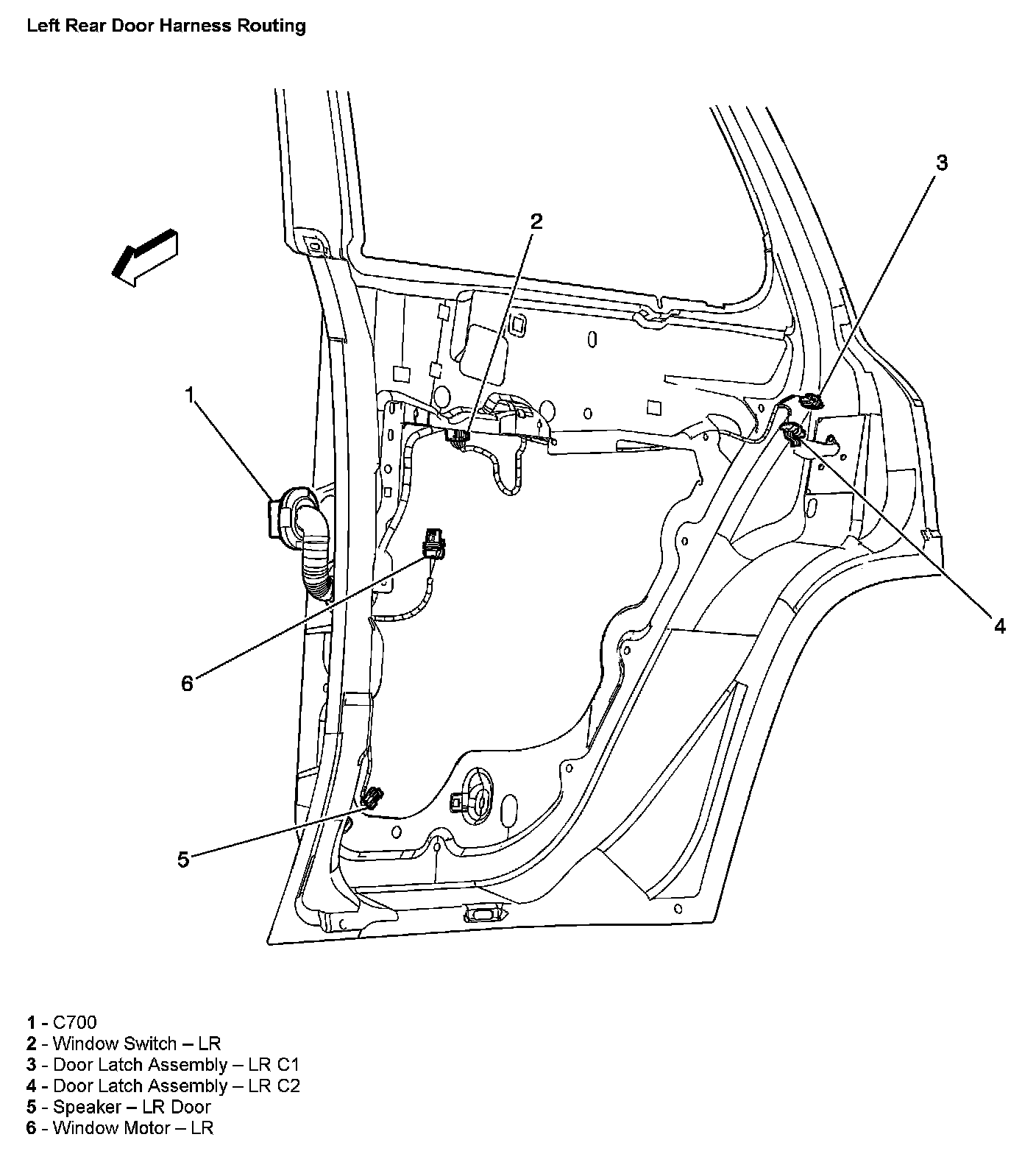

Left Rear Door Harness Routing

Left Rear Door Harness Routing:
