Passenger Seat Schematics



Passenger Seat Diagram 1:

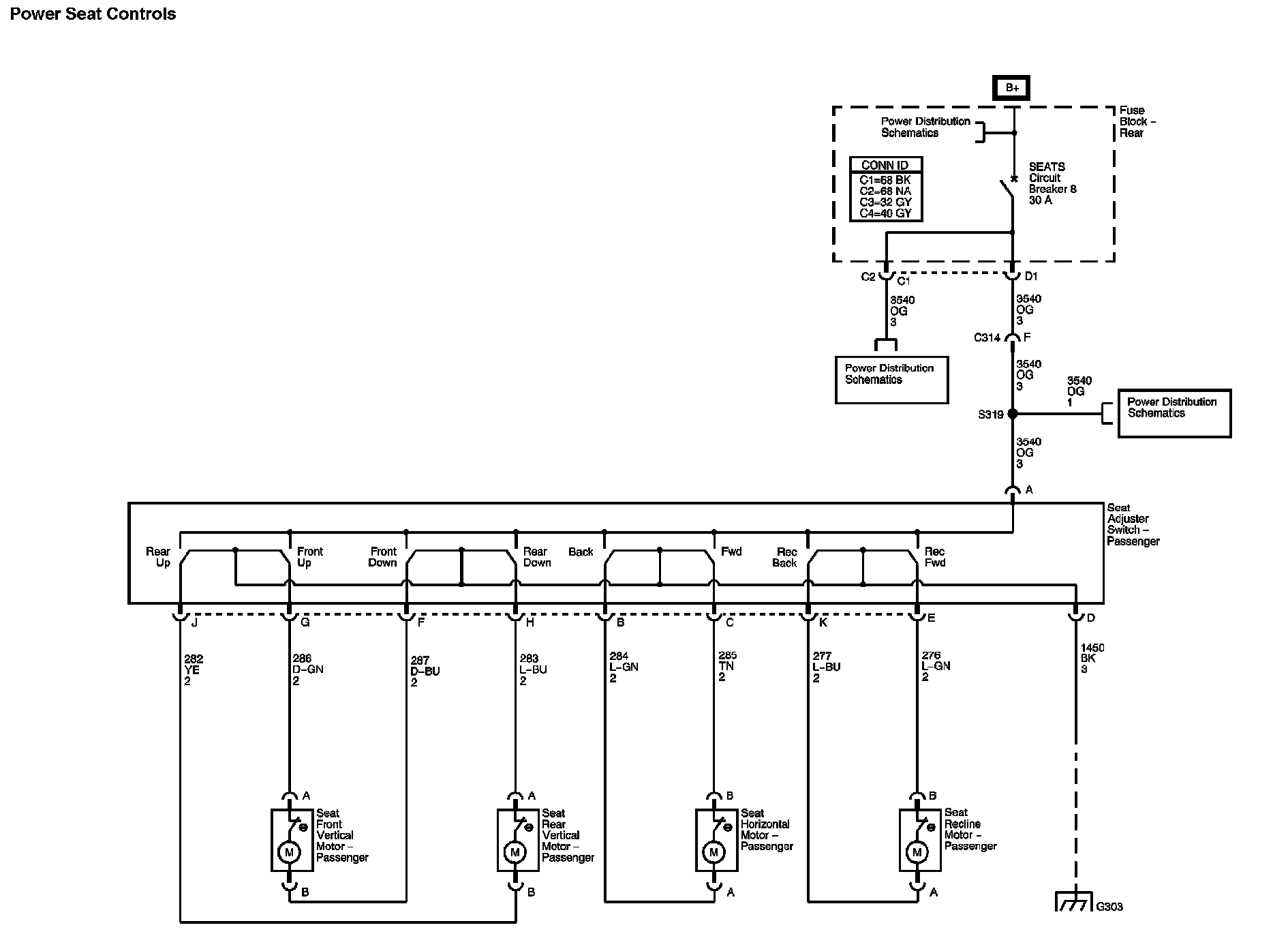

Passenger Seat Diagram 2:




Passenger Seat Diagram 3:






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
