C225
C225

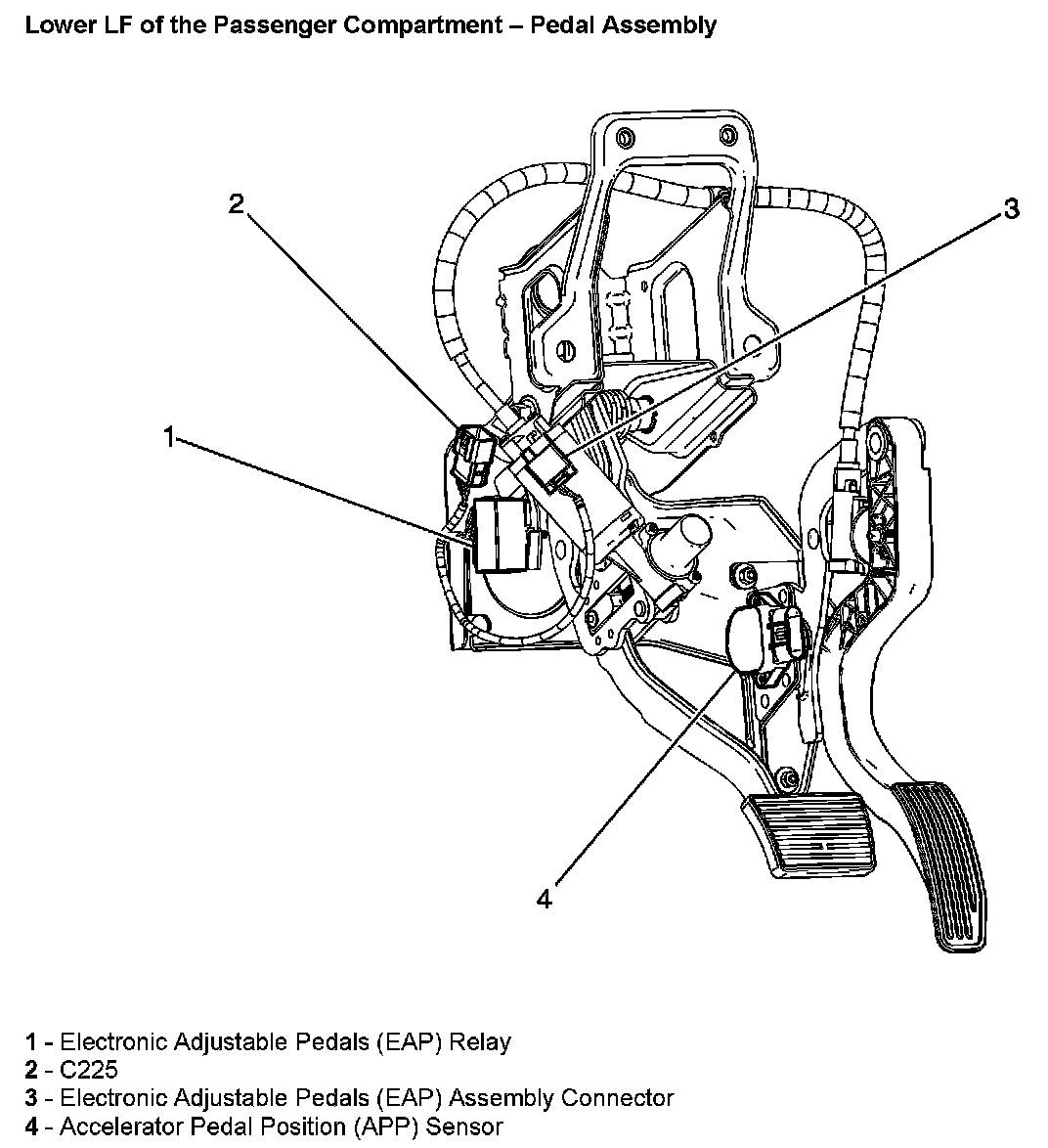

Lower LF Of The Passenger Compartment - Pedal Assembly:
Electronic Adjustable Pedals Harness Routing (JF4):
I/P Harness Routing - Rear Of The I/P:
