Home >> Saab >> 2005 >> 9-7X L6-4.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Inline Harness Connector End Views >> C900 - C999 >> C907

C907

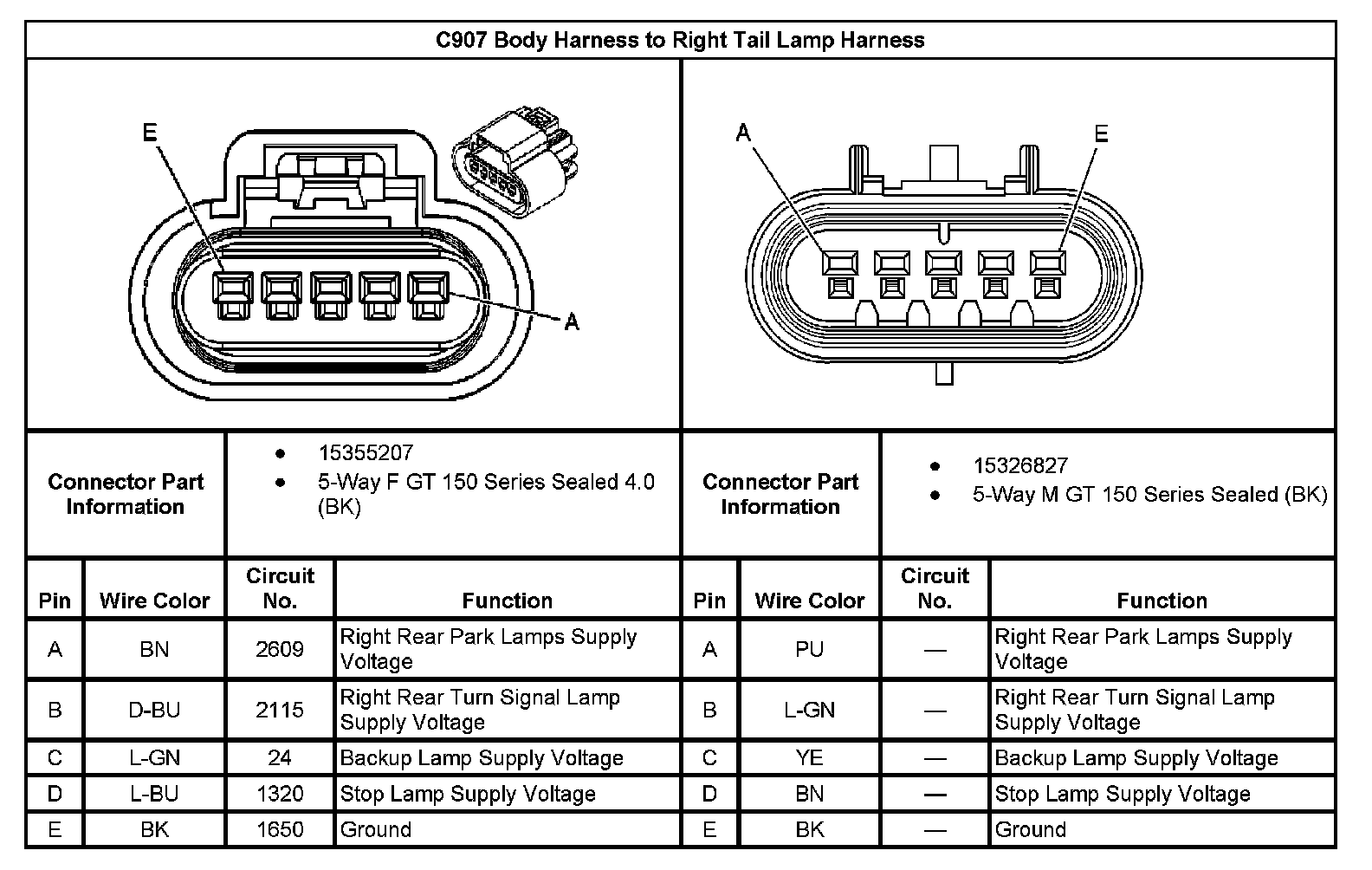

C907 Body Harness to Right Tail Lamp Harness:
