Home >> Saab >> 2005 >> 9-7X L6-4.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Inline Harness Connector End Views >> C900 - C999 >> C906

C906

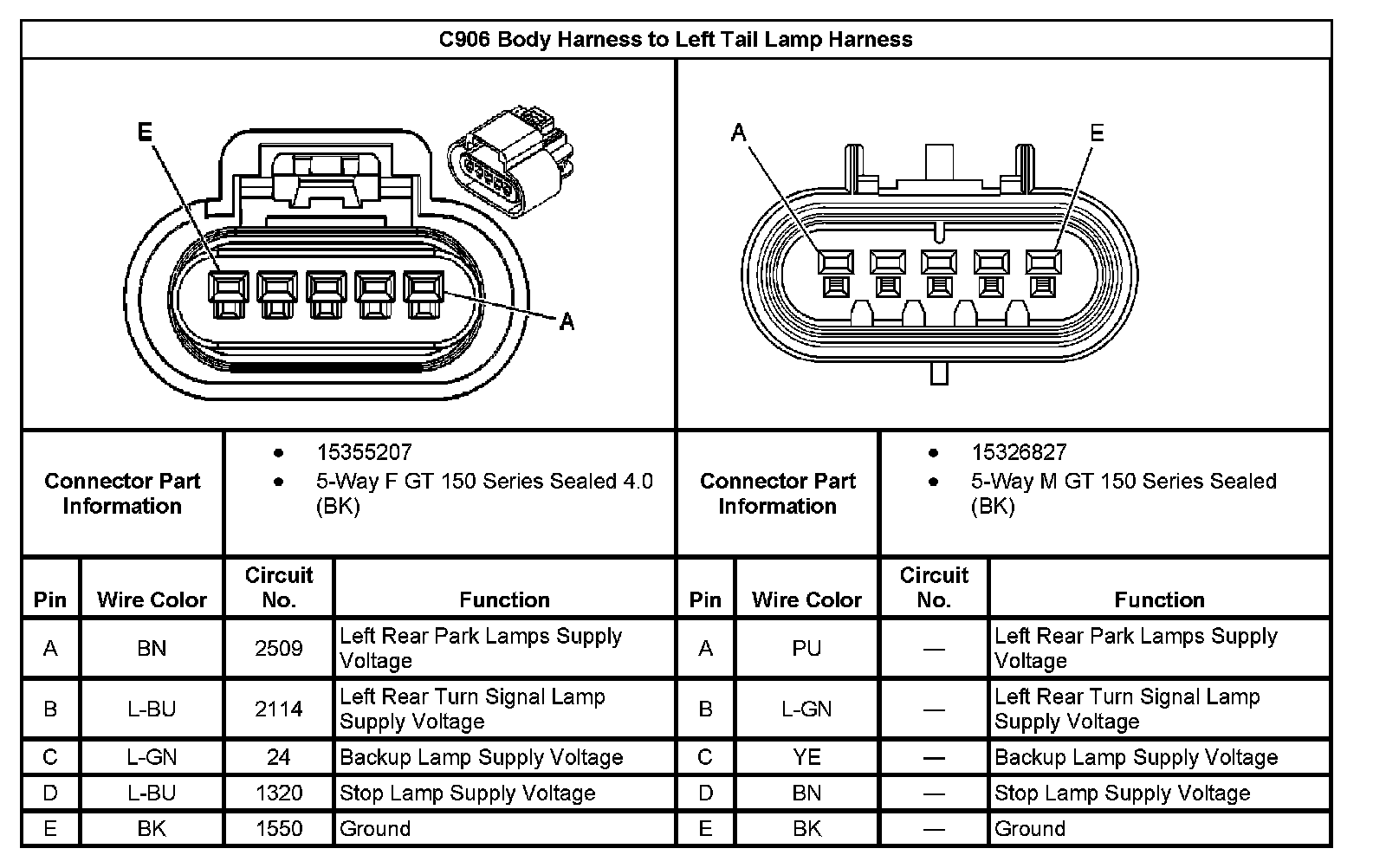

C906 Body Harness to Left Tail Lamp Harness:
