Home >> Saab >> 2005 >> 9-7X L6-4.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Inline Harness Connector End Views >> C200 - C299 >> C275

C275

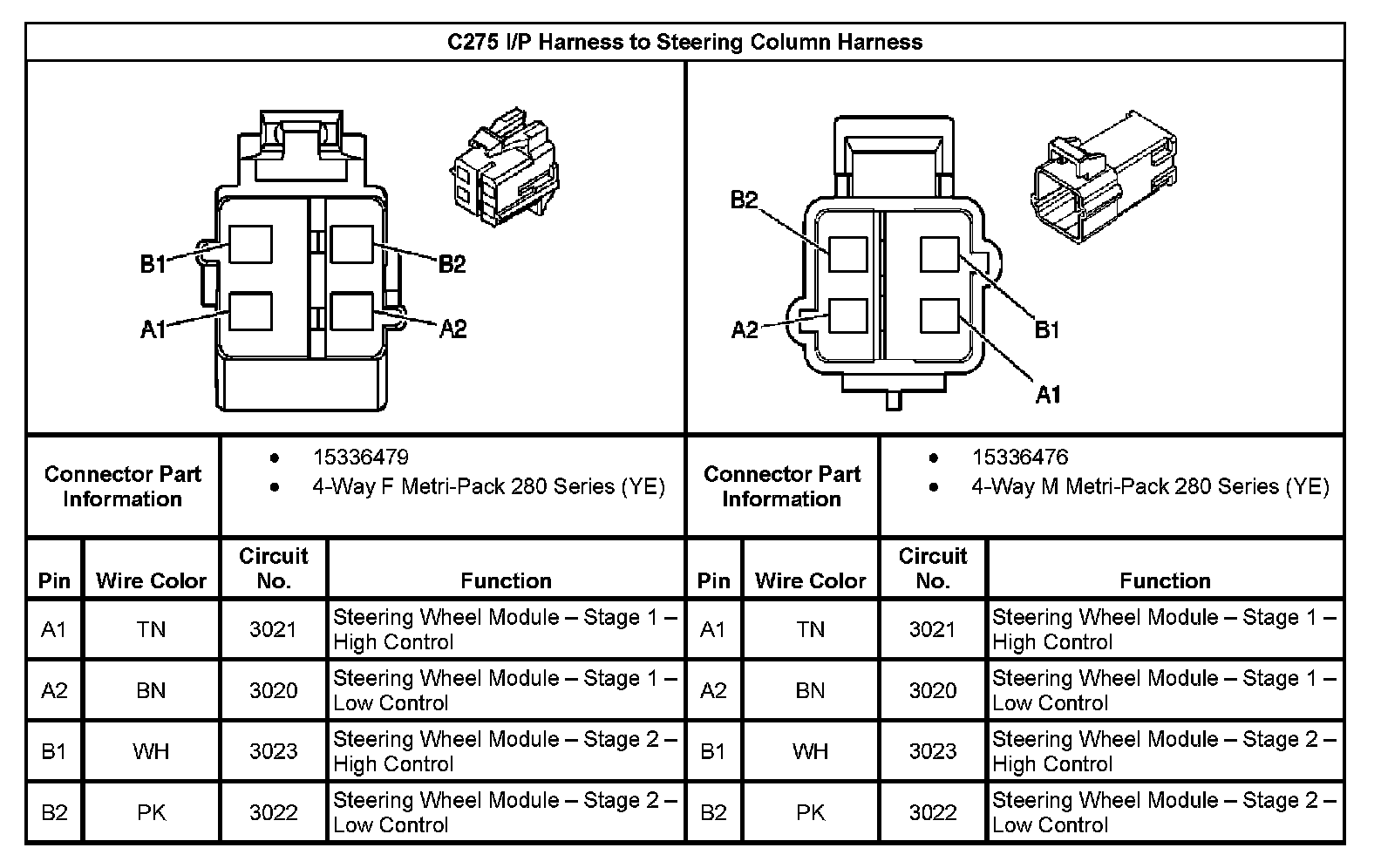

C275 I/P Harness To Steering Column Harness:
