C201
C201

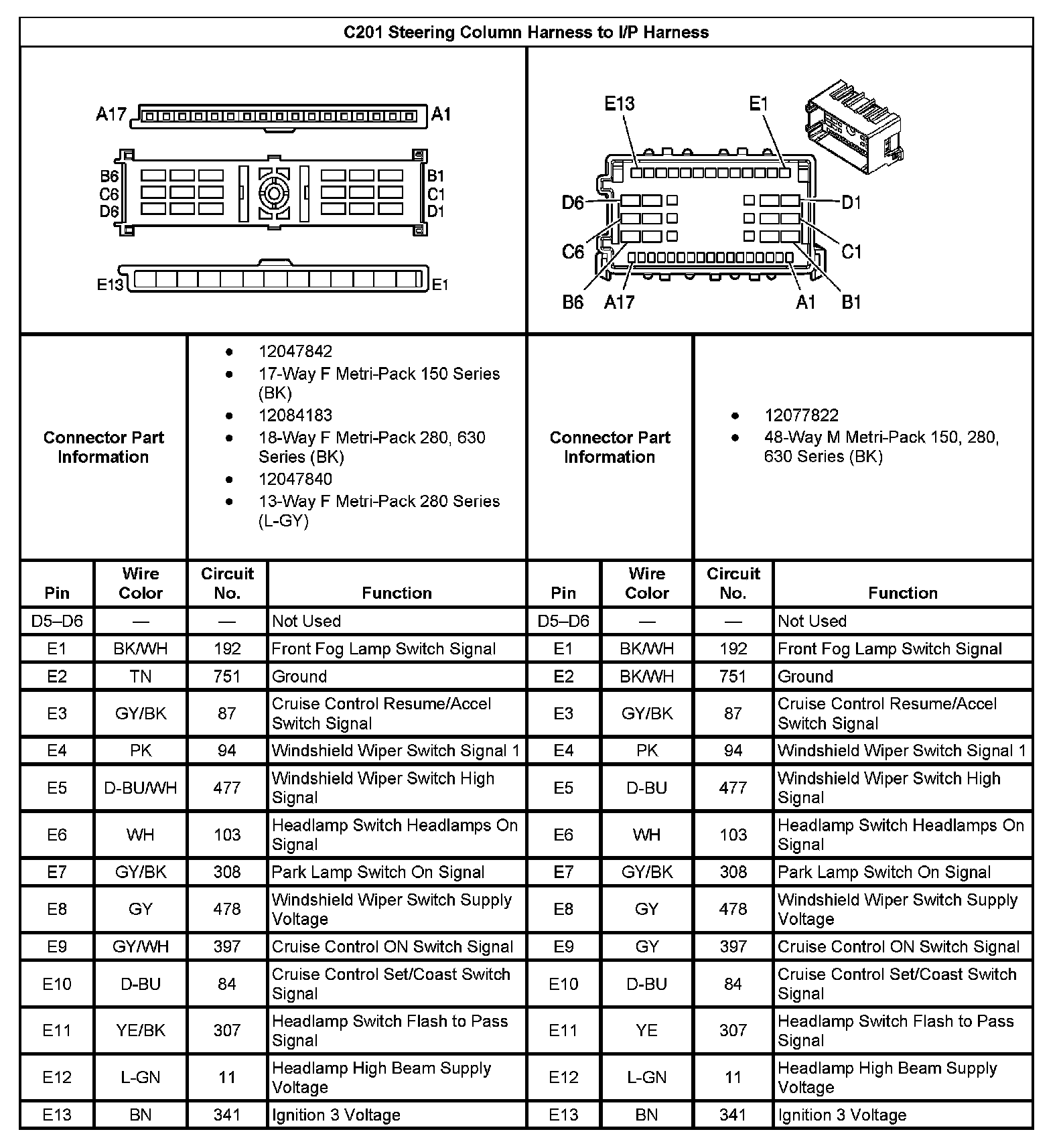

C201 Steering Column Harness To I/P Harness Part 1:

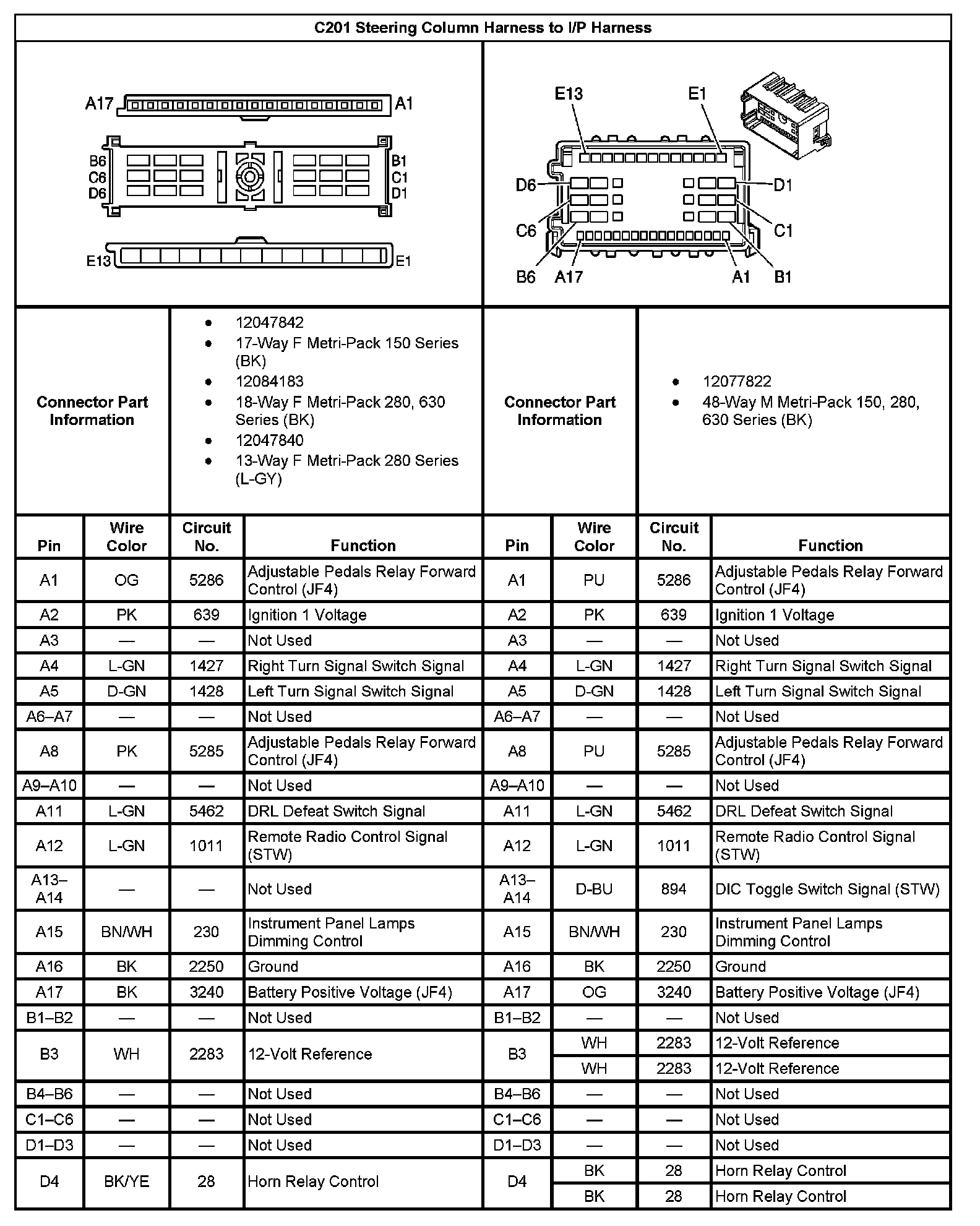

C201 Steering Column Harness To I/P Harness Part 2:
