Home >> Saab >> 2005 >> 9-7X L6-4.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Inline Harness Connector End Views >> C100 - C199 >> C175

C175

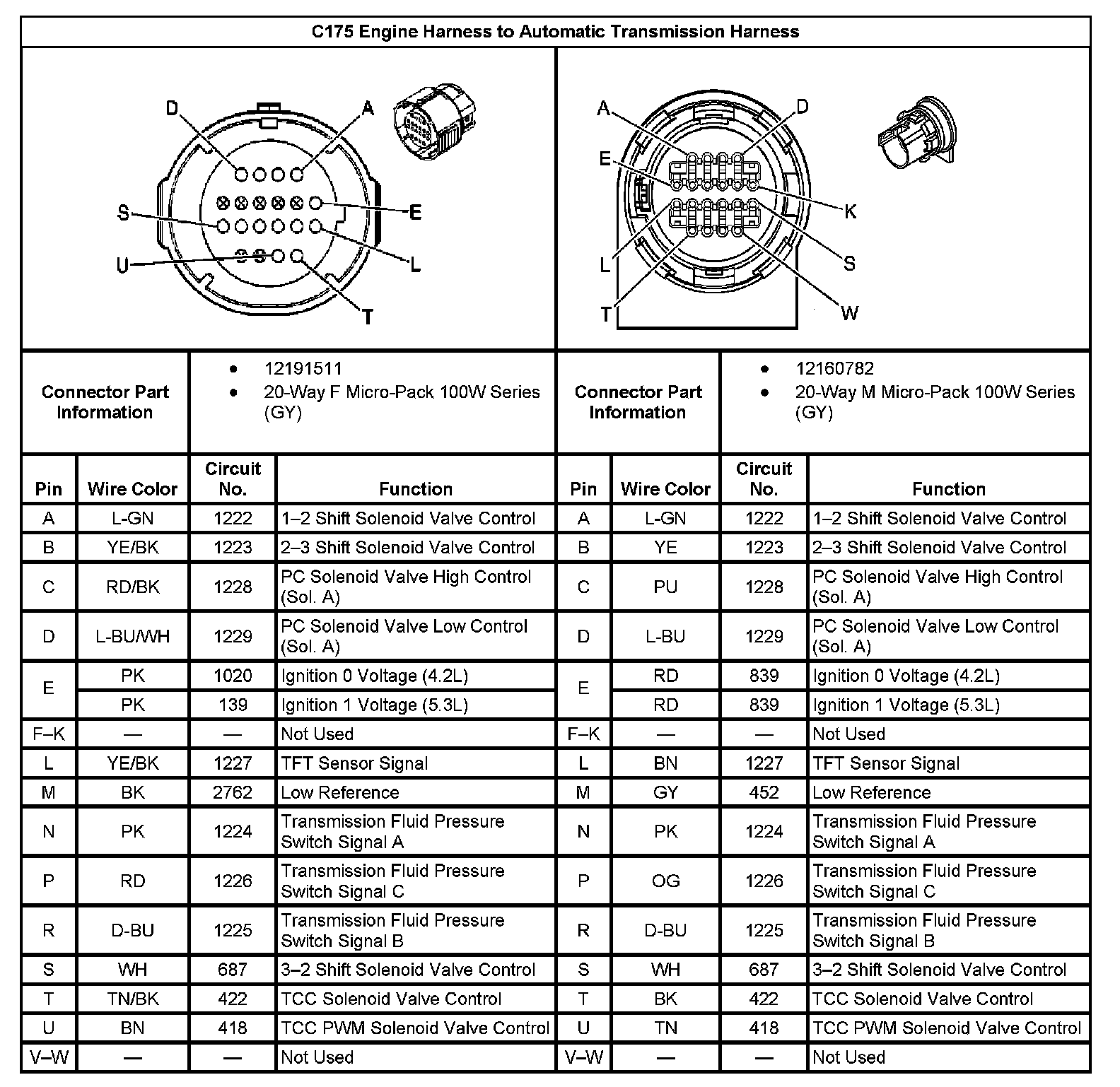

C175 Engine Harness To Automatic Transmission Harness:
