C102
C102

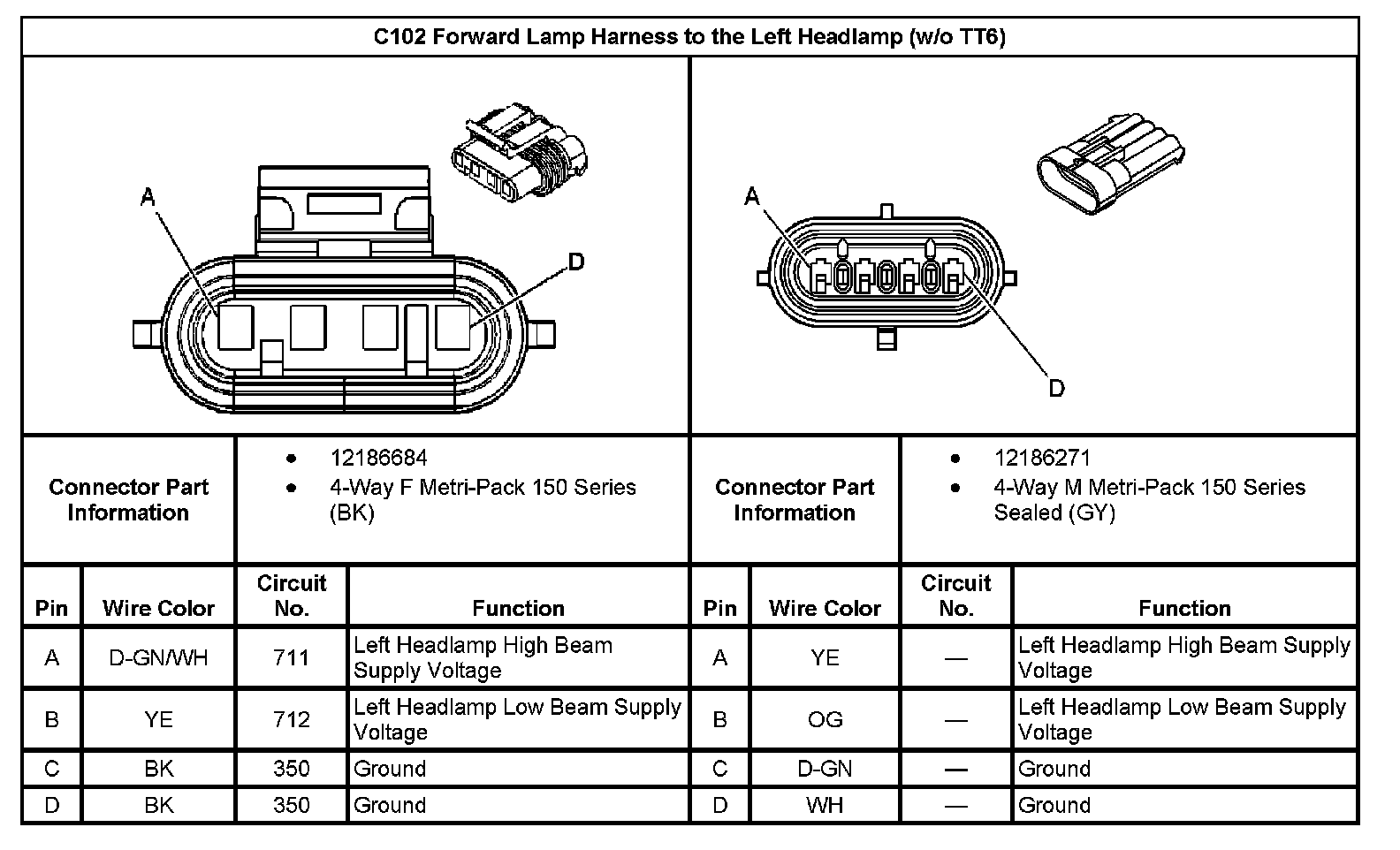

C102 Forward Lamp Harness To The Left Headlamp (Without RPO Code TT6):

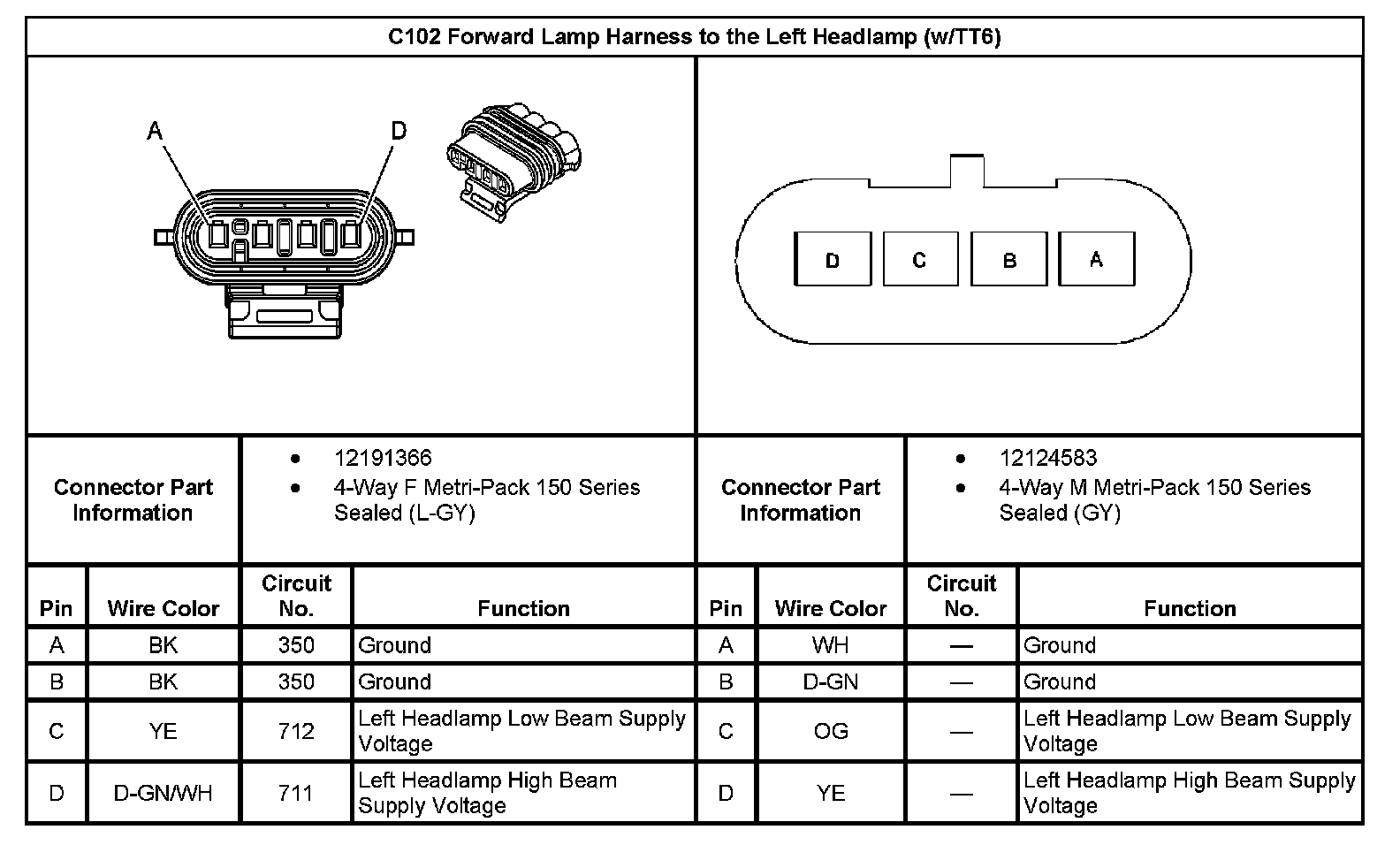

C102 Forward Lamp Harness To The Left Headlamp (With RPO Code TT6):
