Home >> Saab >> 2005 >> 9-7X L6-4.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Inline Harness Connector End Views >> C100 - C199 >> C101

C101

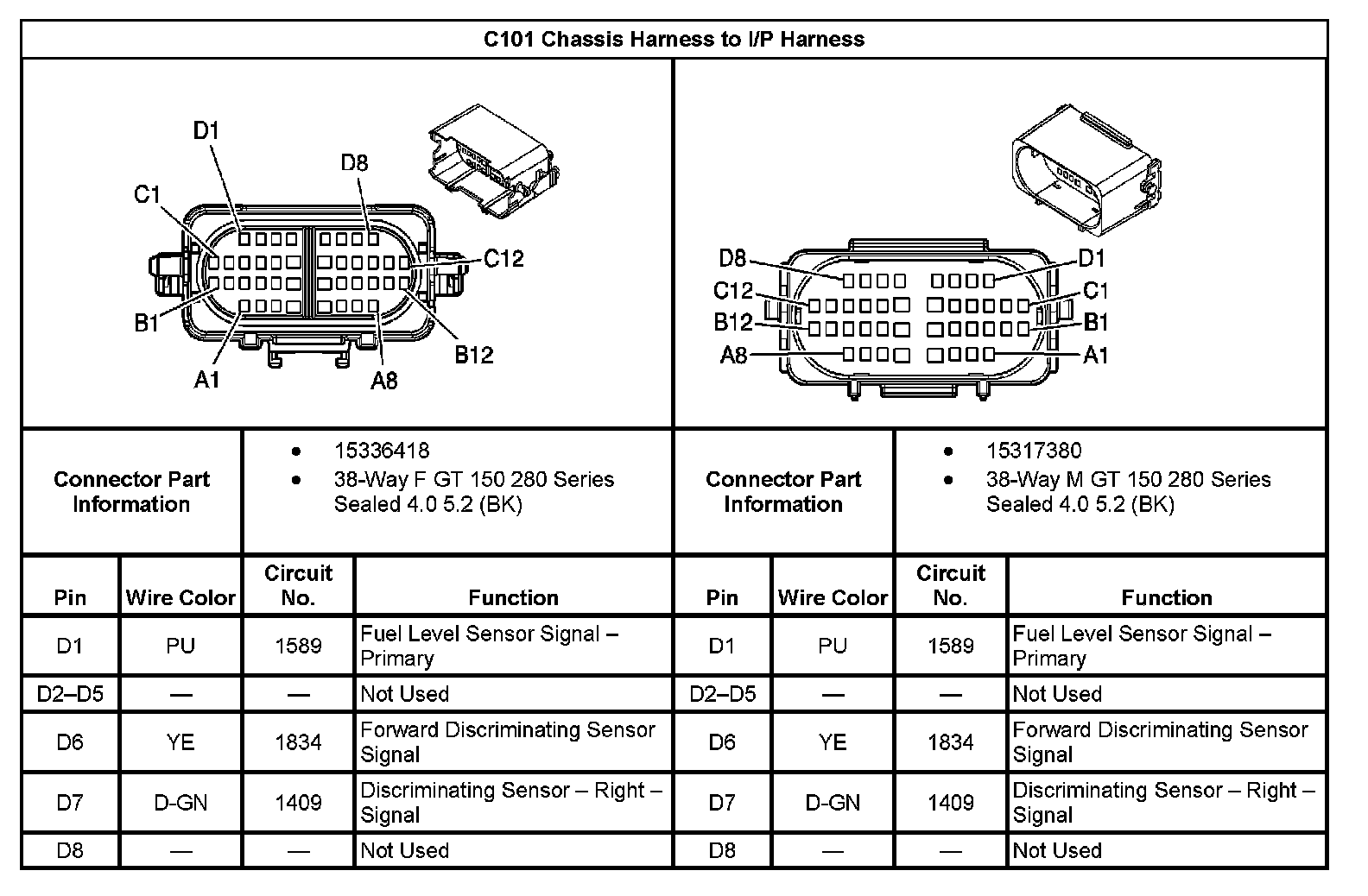

C101 Chassis Harness To I/P Harness Part 1:

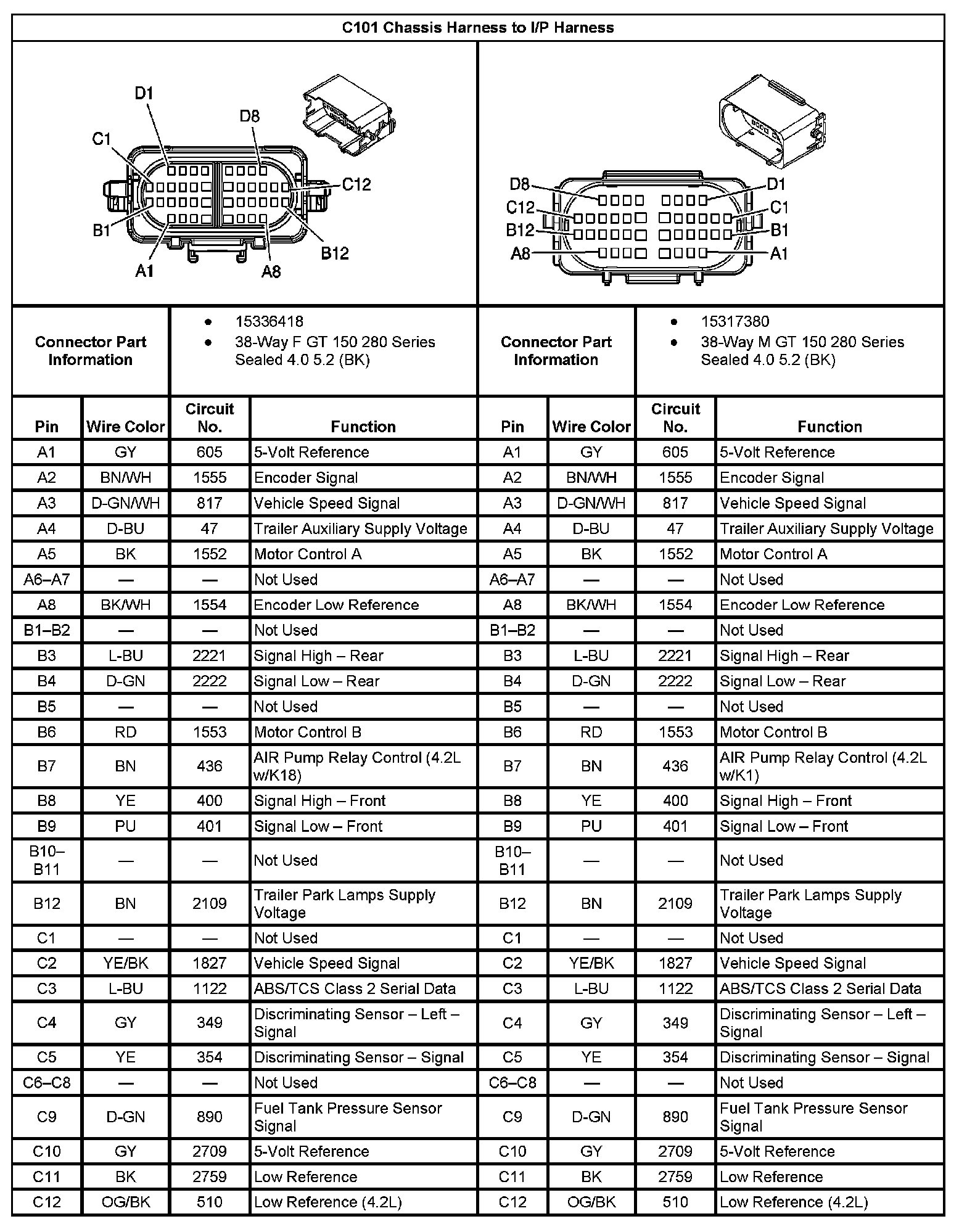

C101 Chassis Harness To I/P Harness Part 2:
