Home >> Saab >> 2005 >> 9-7X L6-4.2L >> Repair and Diagnosis >> Body and Frame >> Seats >> Diagrams >> Electrical Diagrams >> Driver Seat Schematics

Driver Seat Schematics

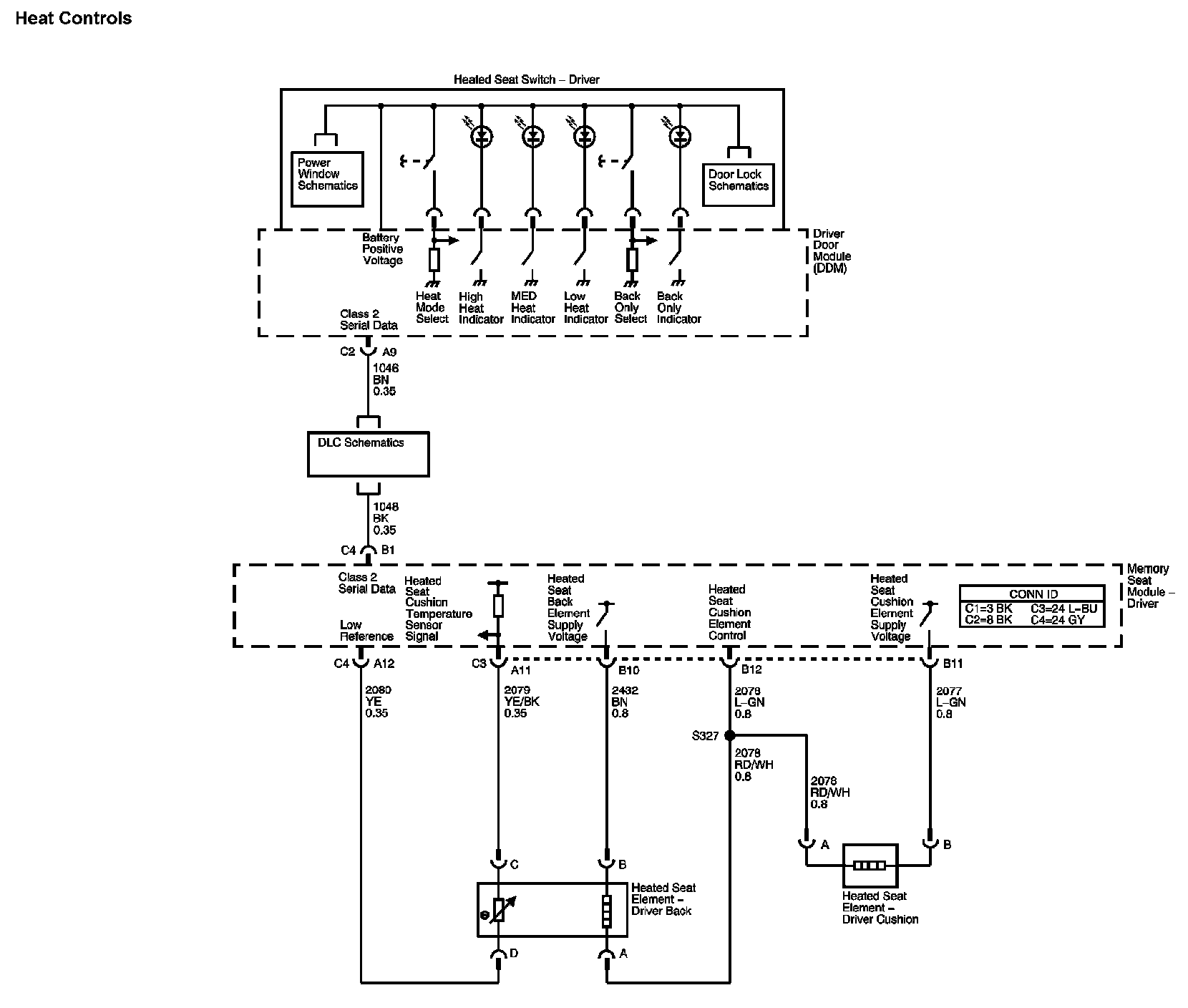

Driver Seat Diagram 1:

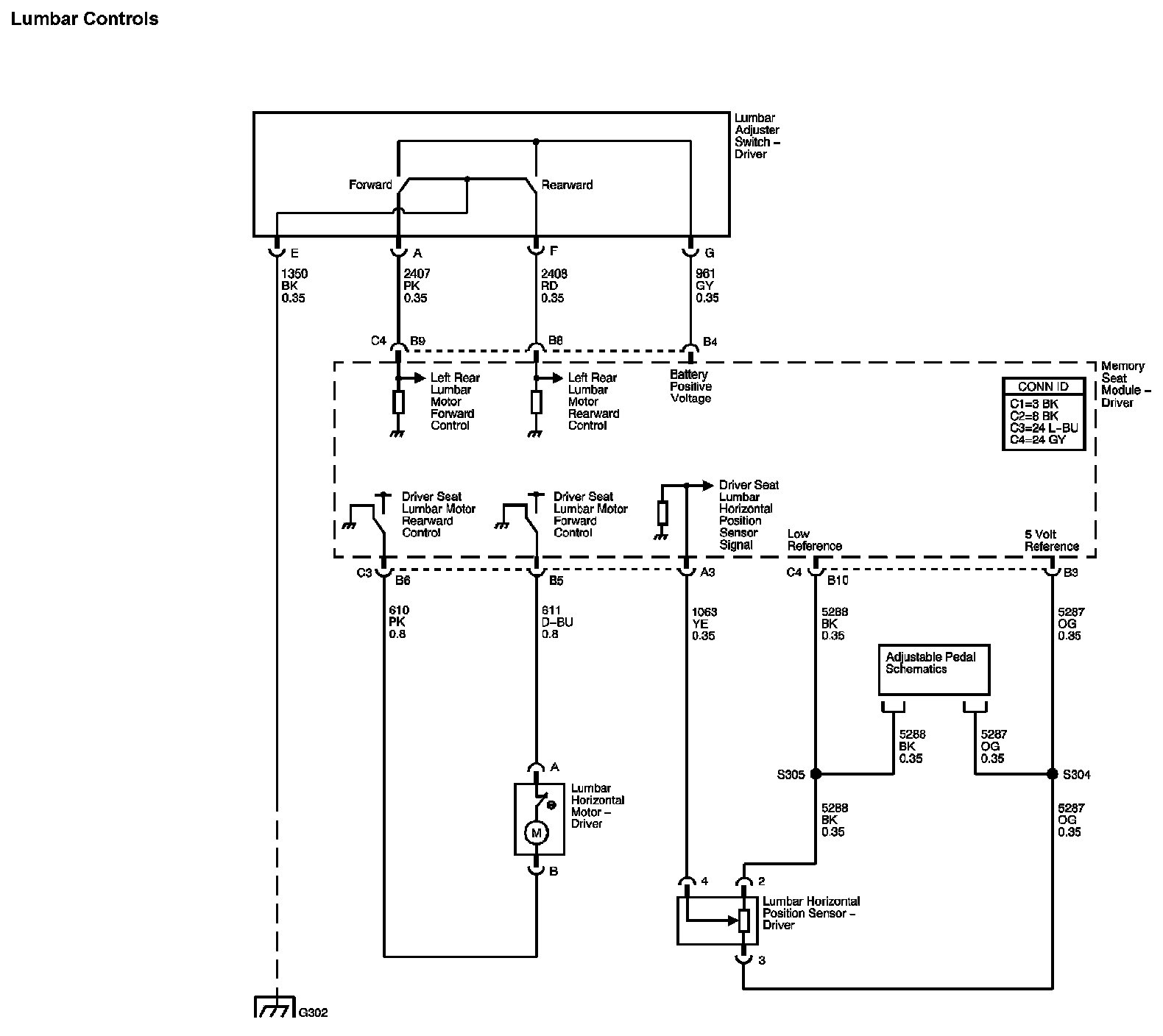

Driver Seat Diagram 2:

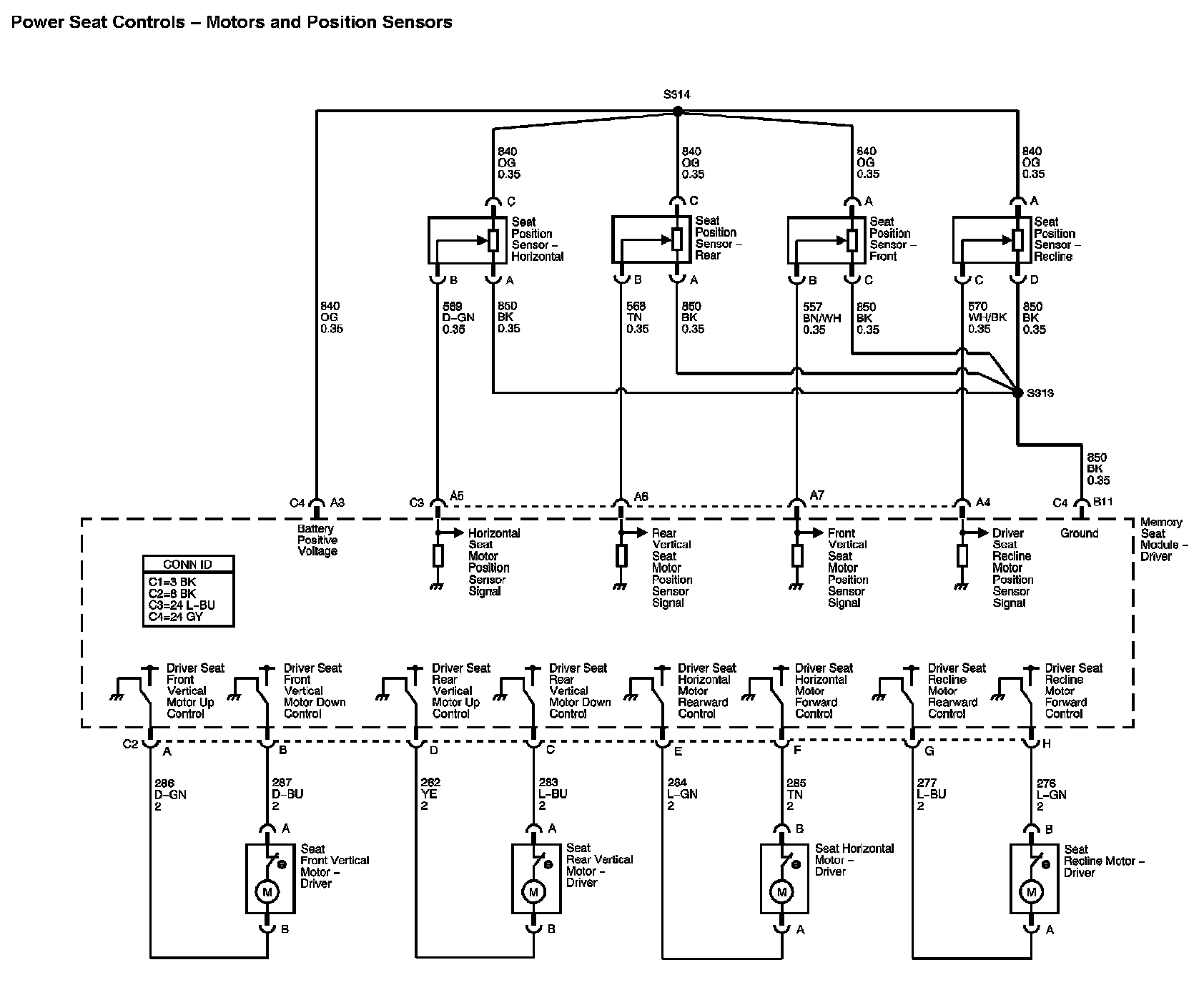

Driver Seat Diagram 3:

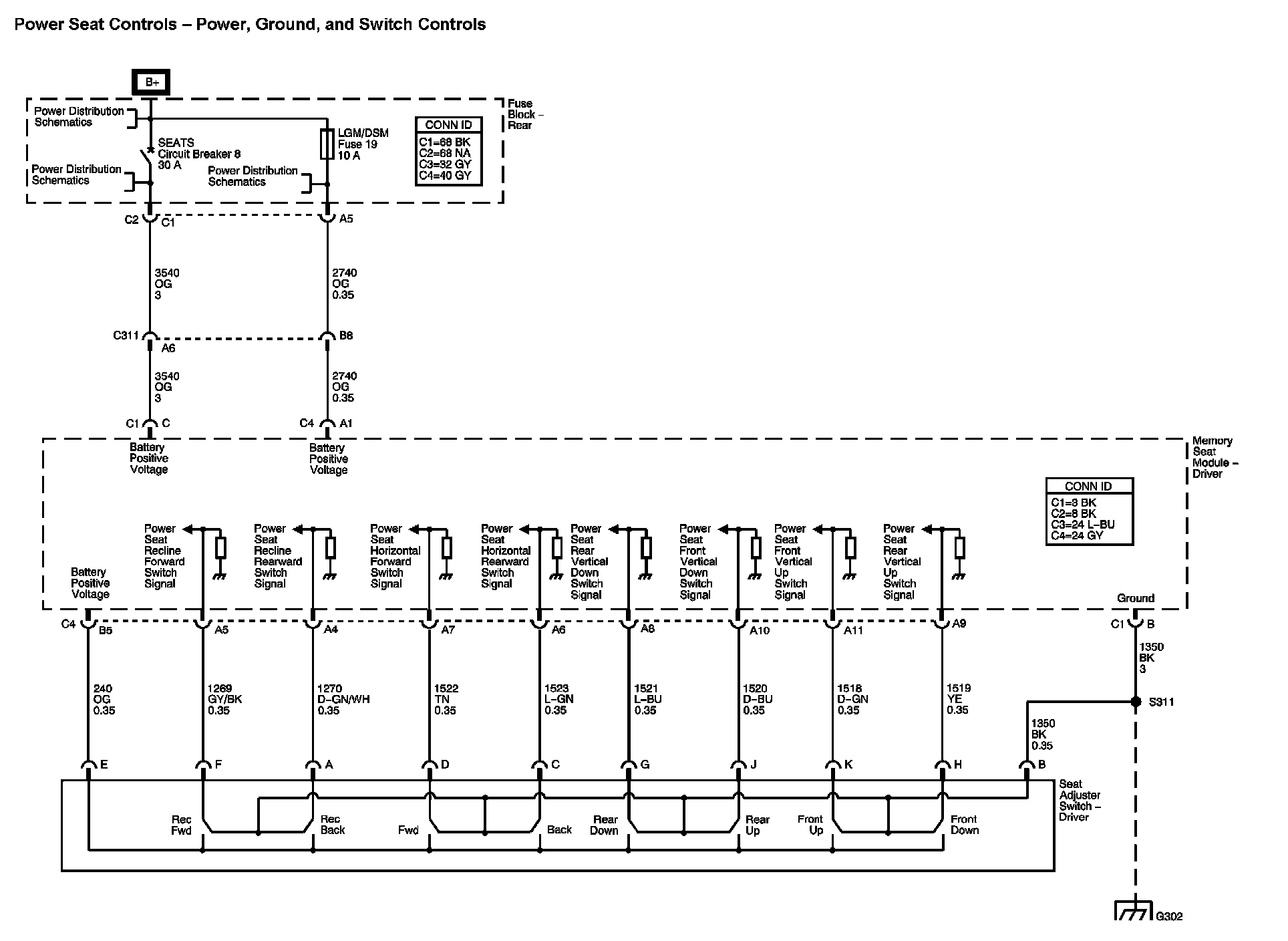

Driver Seat Diagram 4:




Driver Seat Diagram 5:






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
