Fitting in a new or rebored cylinder

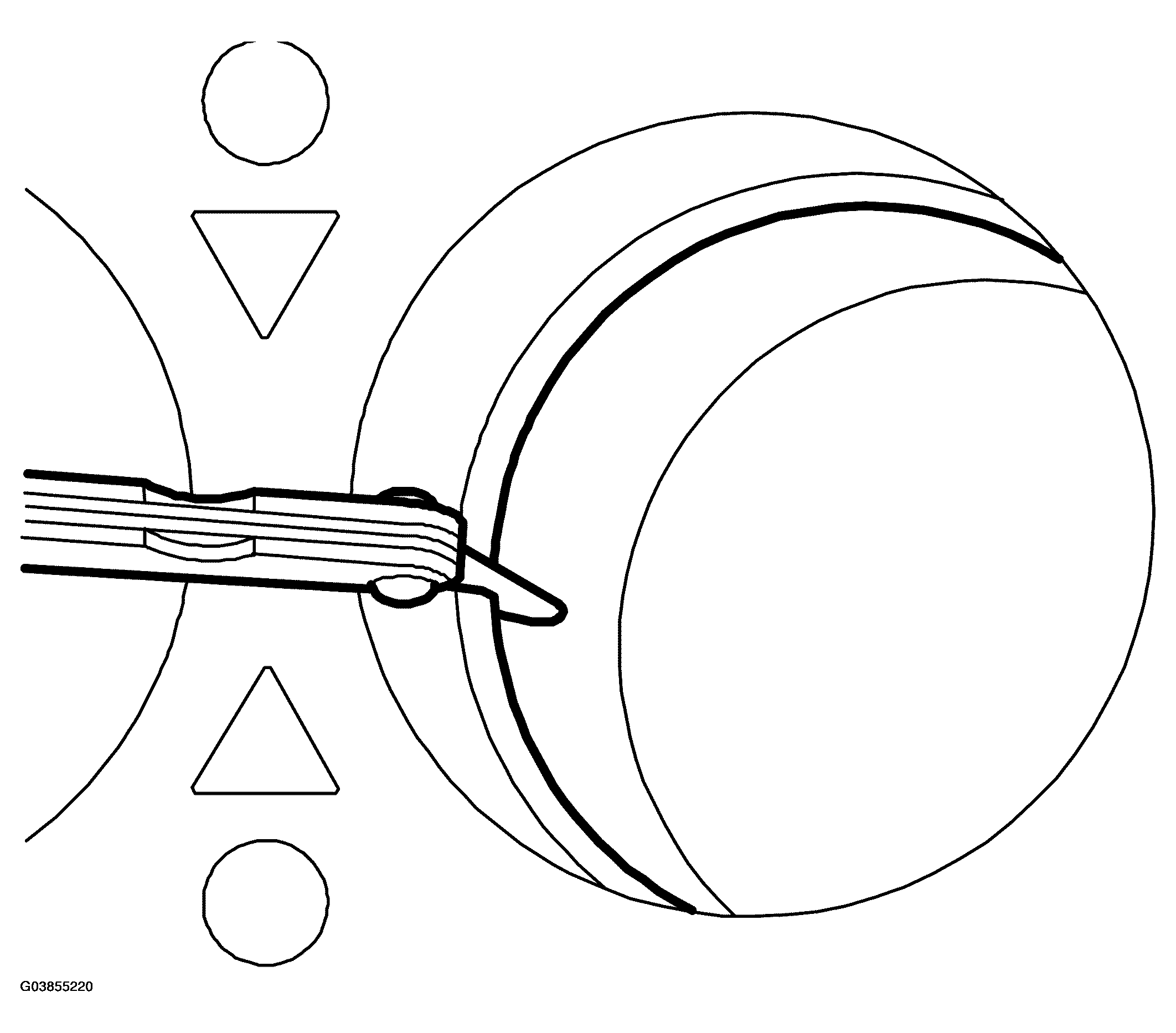

Fig 1: Identifying Fitting In A New Or Rebored Cylinder
G03855220Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Push the piston rings down into the cylinder one by one, using a piston to position them correctly.
  2. Measure the ring gap with a feeler gauge, see illustration. If necessary, the gap can be increased with a special file. For measurement information, see PISTONS  .
