To remove

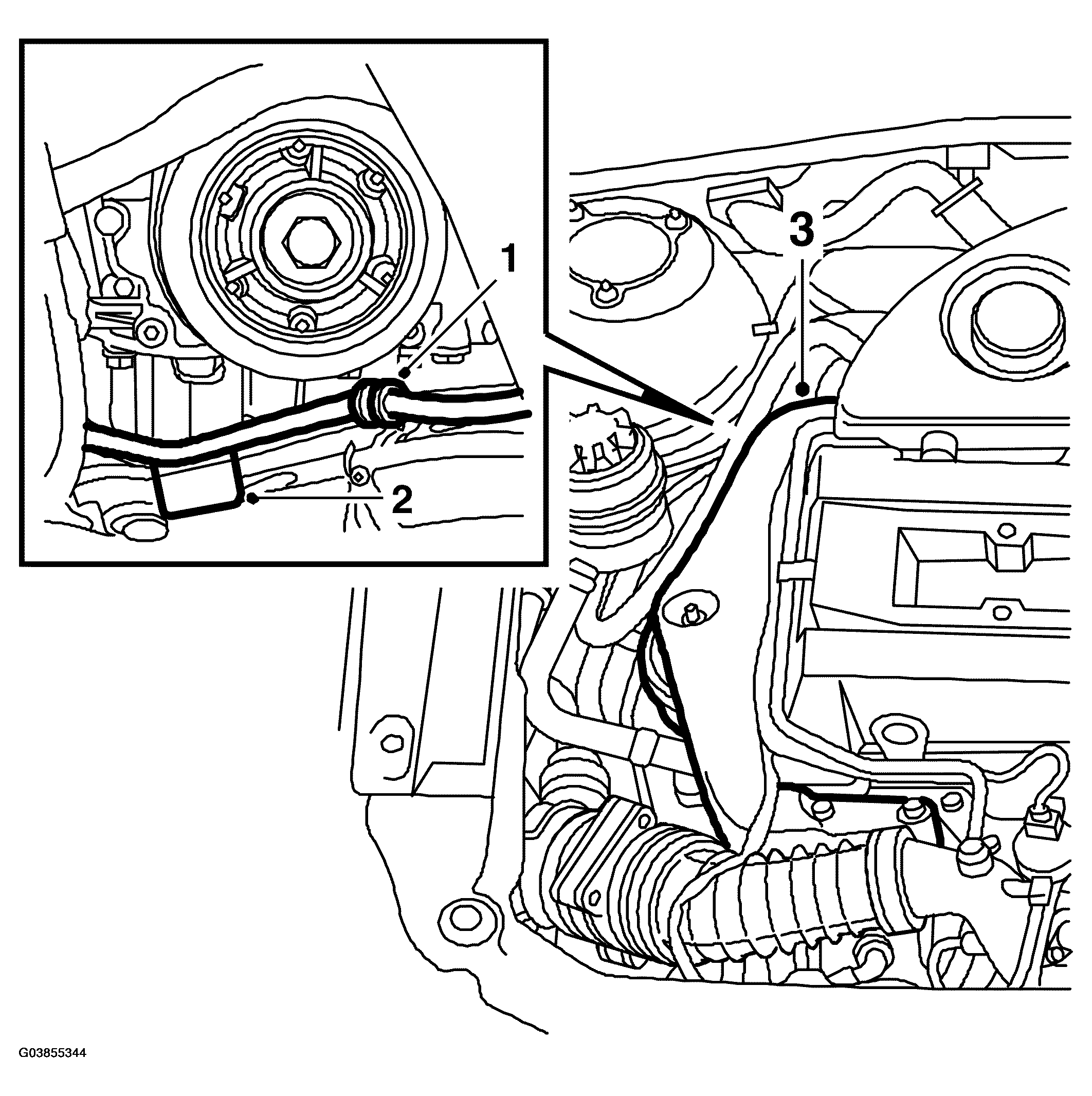

Fig 1: Illustration For Steps 1-3
G03855344Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Raise the car. Remove the right-hand front wheel and detach the power steering pump from the subframe.
  2. Remove the cover for the belt circuit. Fit a WEDGE  83 95 238 between the oil sump and the subframe so that it can be driven in to raise the engine for fitting.
  3. Remove the right-hand engine mounting with yoke.
  4. Take the strain off the belt tensioner with the aid of a ratchet handle extension and insert a 3 mm hexagon key in the hole.

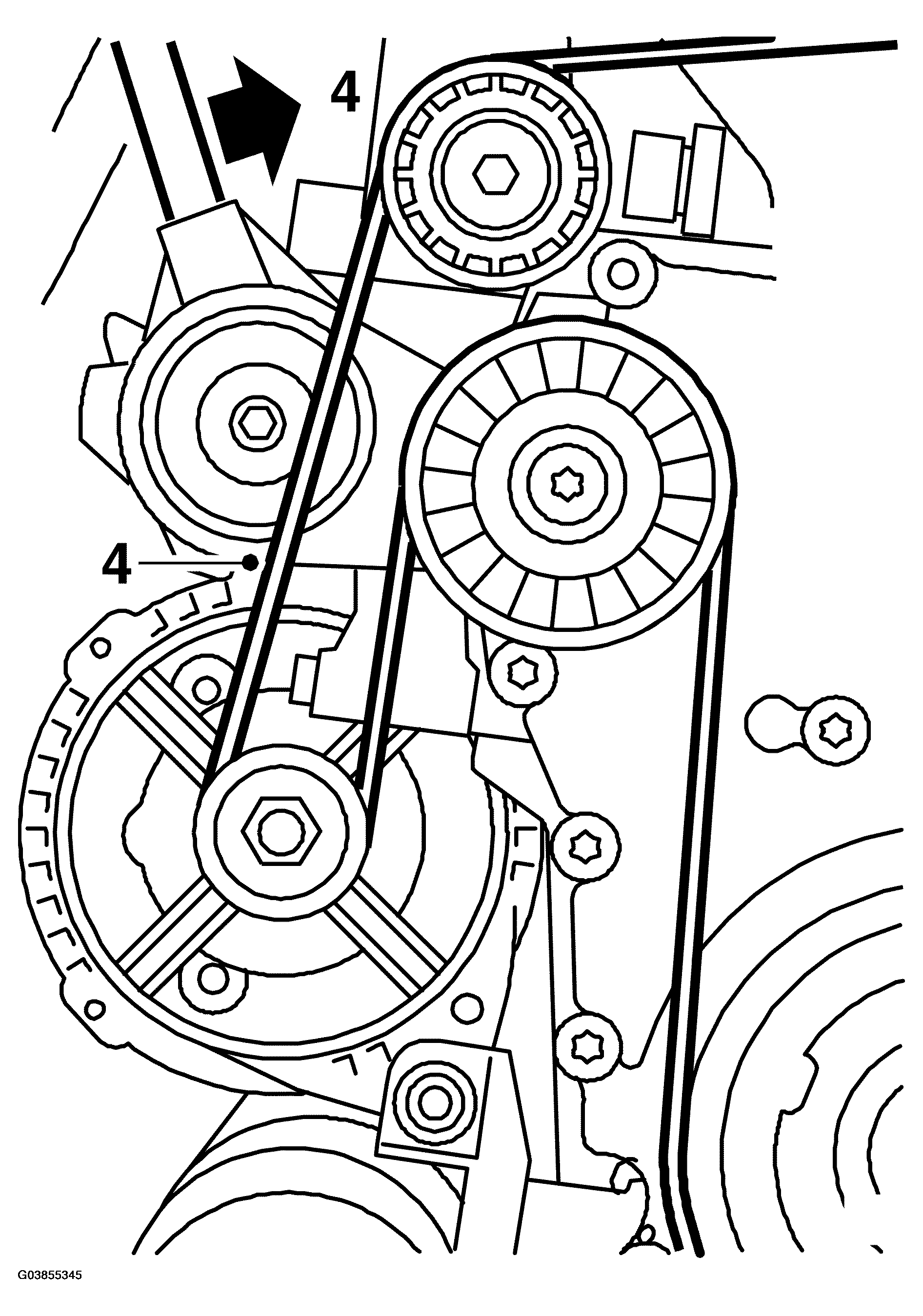

    Fig 2: Illustration For Step 4
    G03855345Courtesy of SAAB-SCANIA OF AMERICA, INC.
    IMPORTANT: Exercise the utmost care to ensure that the belt tensioner does not break at its end position!
  5. Remove the flywheel cover plate and fit FLYWHEEL LOCKING SEGMENT  83 94 868.

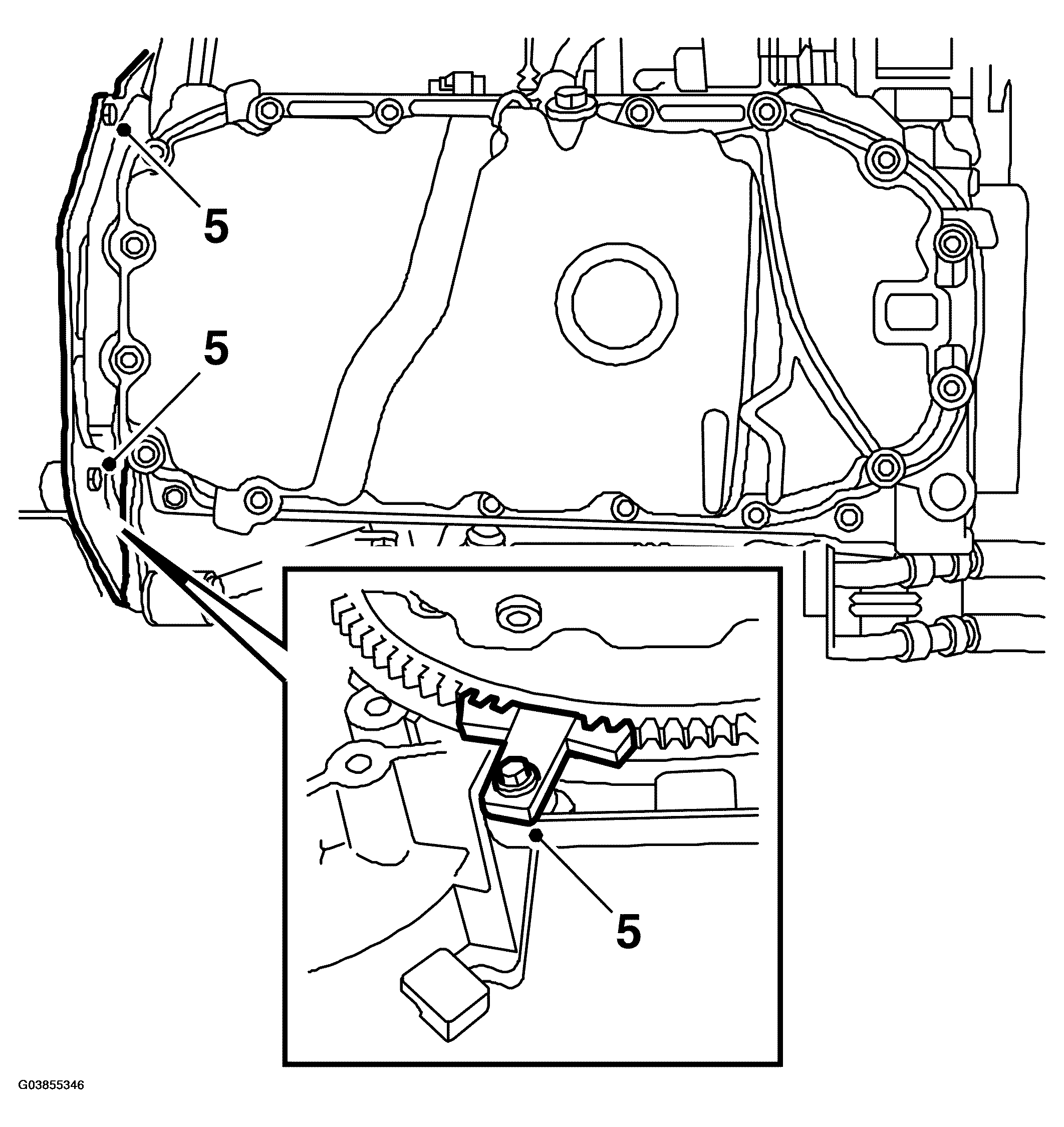

    Fig 3: Illustration For Step 5
    G03855346Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Remove the crankshaft pulley.

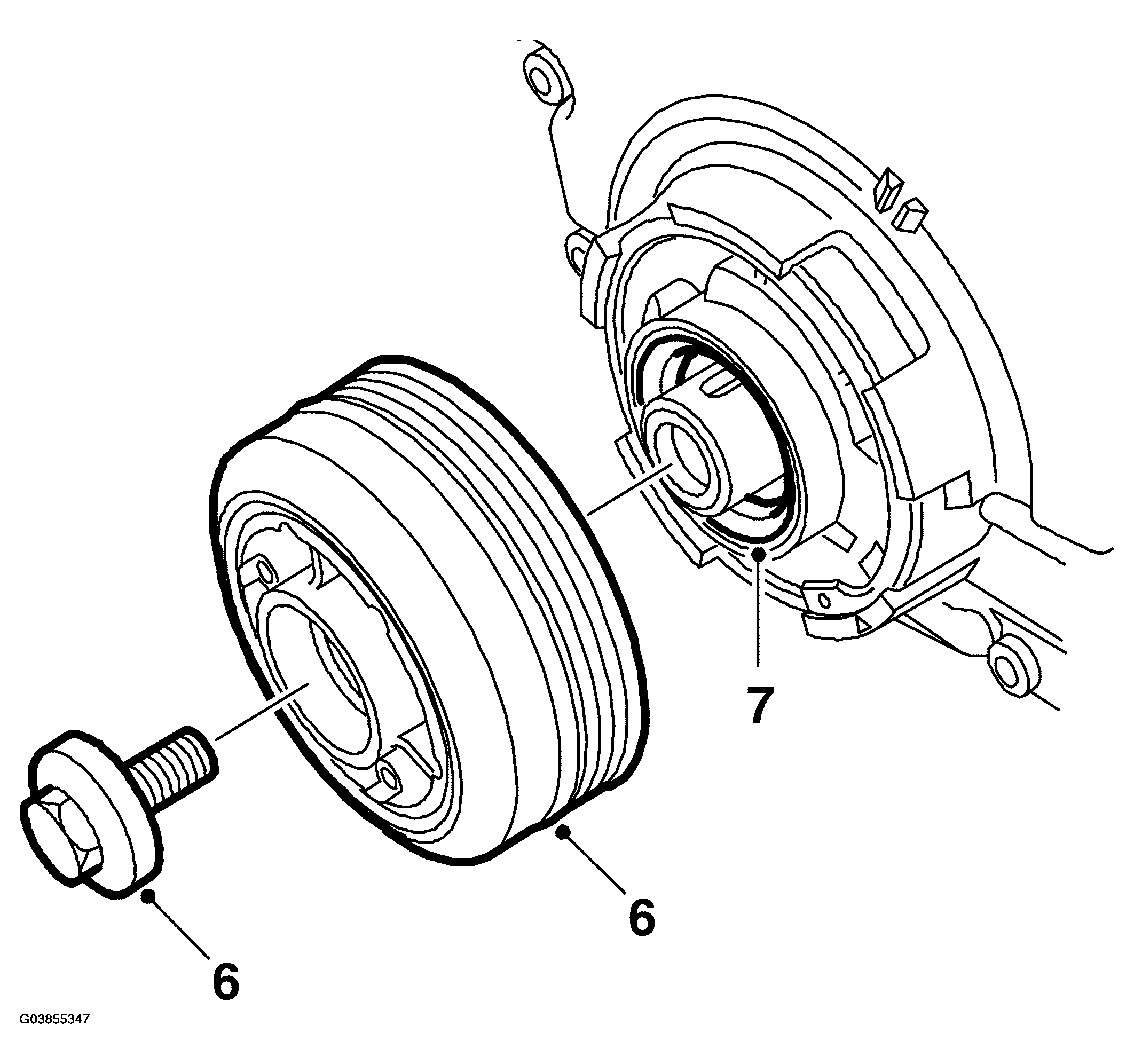

    Fig 4: Illustration For Steps 6-7
    G03855347Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Use a screwdriver to pry out the old seal, taking care not to damage the sealing surface.
