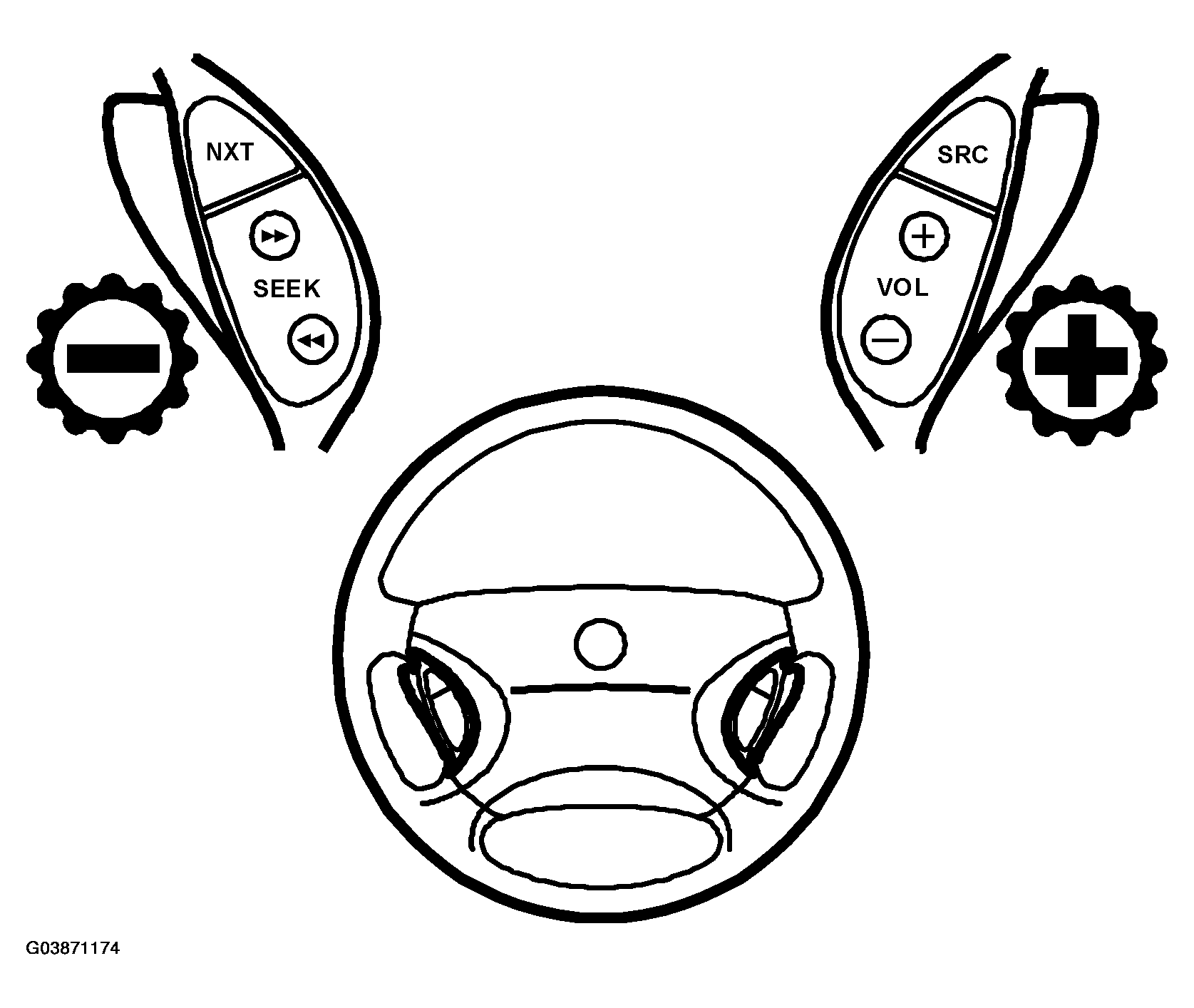

Steering wheel control (switches), Sentronic
Courtesy of SAAB-SCANIA OF AMERICA, INC. TECHNICAL DATA - STEERING WHEEL CONTROL (SWITCHES), SENTRONIC
| Power supply |
V |
5 |
| Horn |
Ohm |
0 |
| Shift gear up (+) |
Ohm |
44 |
| Shift gear down (-) |
Ohm |
95 |
| VOL - |
Ohm |
160 |
| VOL + |
Ohm |
242 |
| SRC |
Ohm |
347 |
| SEEK |
Ohm |
494 |
| << SEEK |
Ohm |
709 |
| NXT |
Ohm |
1041 |
| Normal |
Ohm |
2511 |
Tolerance 1%
