Steering wheel control, Sentronic: Notes

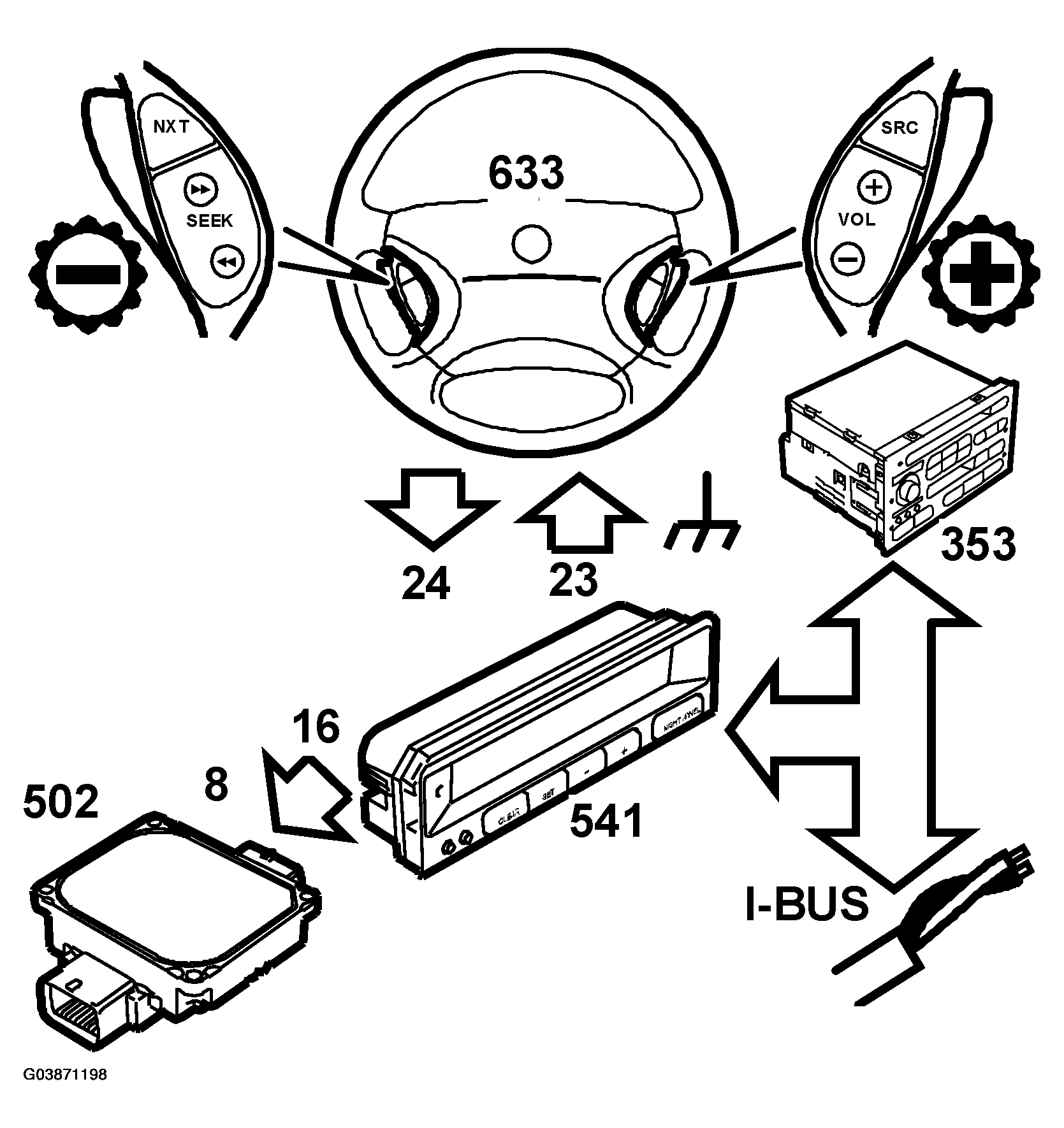

Fig 1: Steering Wheel Control, Sentronic Component
G03871198Courtesy of SAAB-SCANIA OF AMERICA, INC.

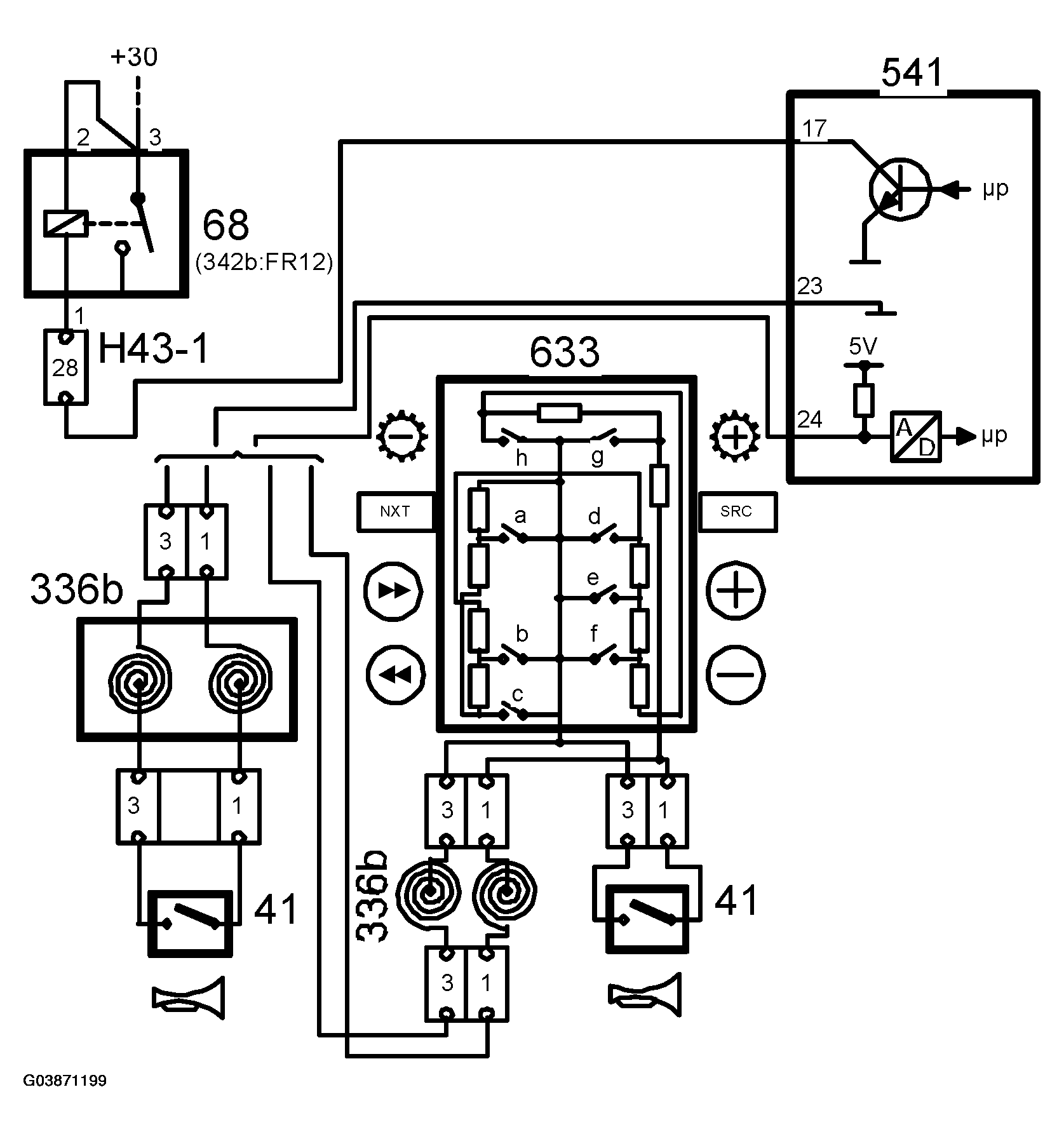

Fig 2: Steering Wheel Control, Sentronic Graph
G03871199Courtesy of SAAB-SCANIA OF AMERICA, INC.
