Home
>>
Saab
>>
2005
>>
9-5 Linear, Standard
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
SAAB Information Display (SID)
>>
Technical Description
>>
Parking Heater
>>
Notes
Parking Heater: Notes

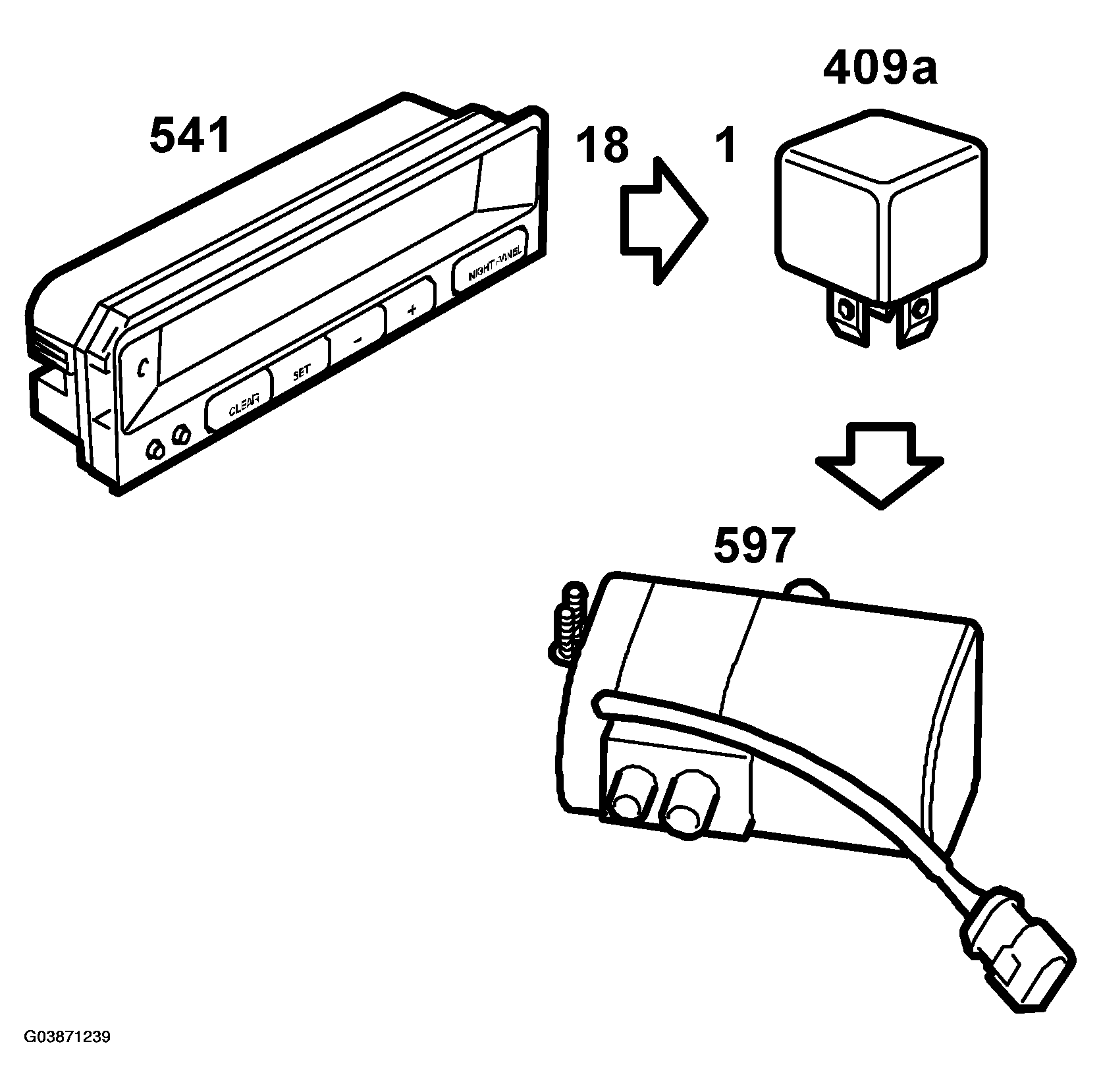

Fig 1: Parking Heater Component
Courtesy of SAAB-SCANIA OF AMERICA, INC.

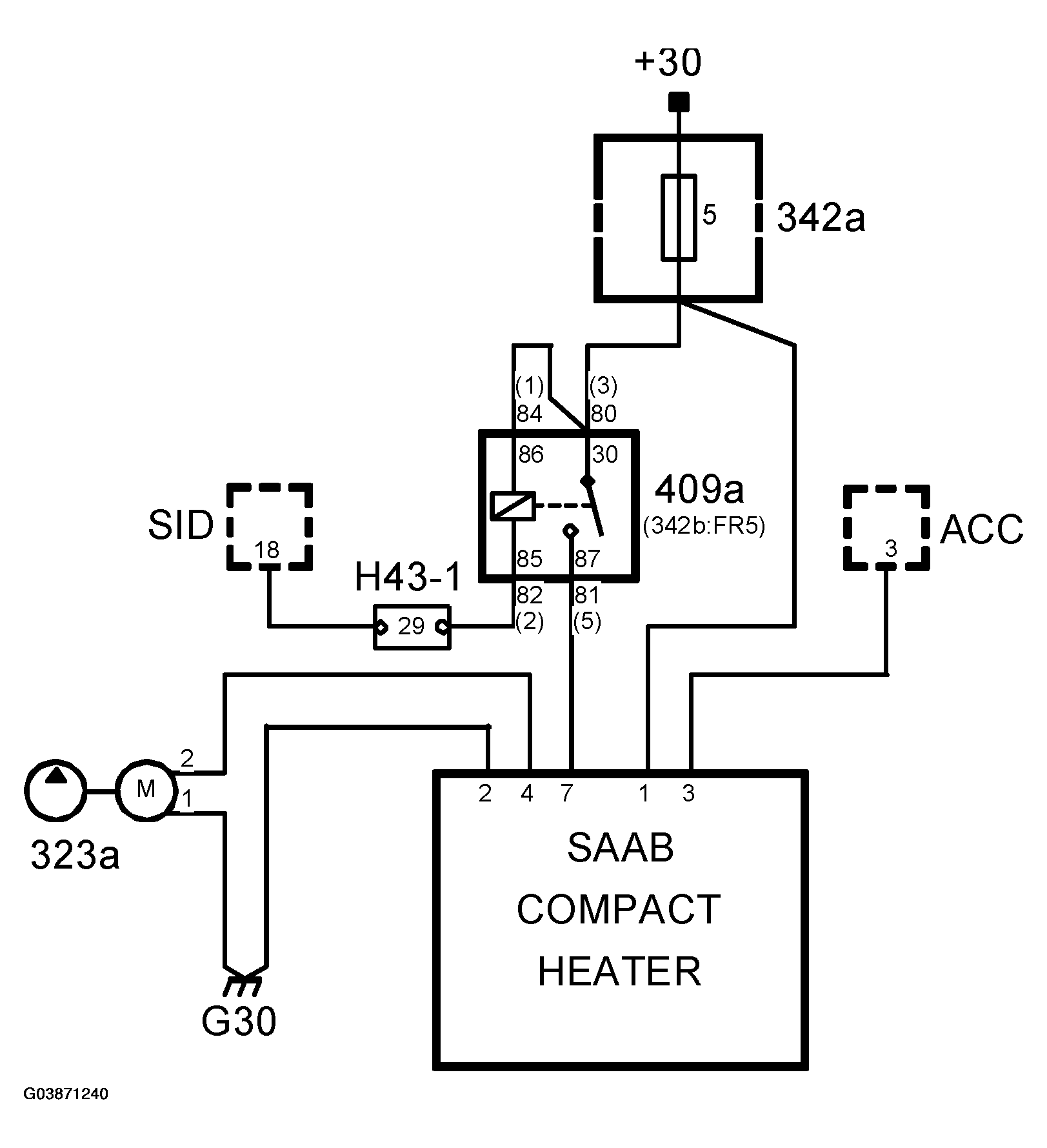

Fig 2: Parking Heater - Circuit Diagram
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
