Main components

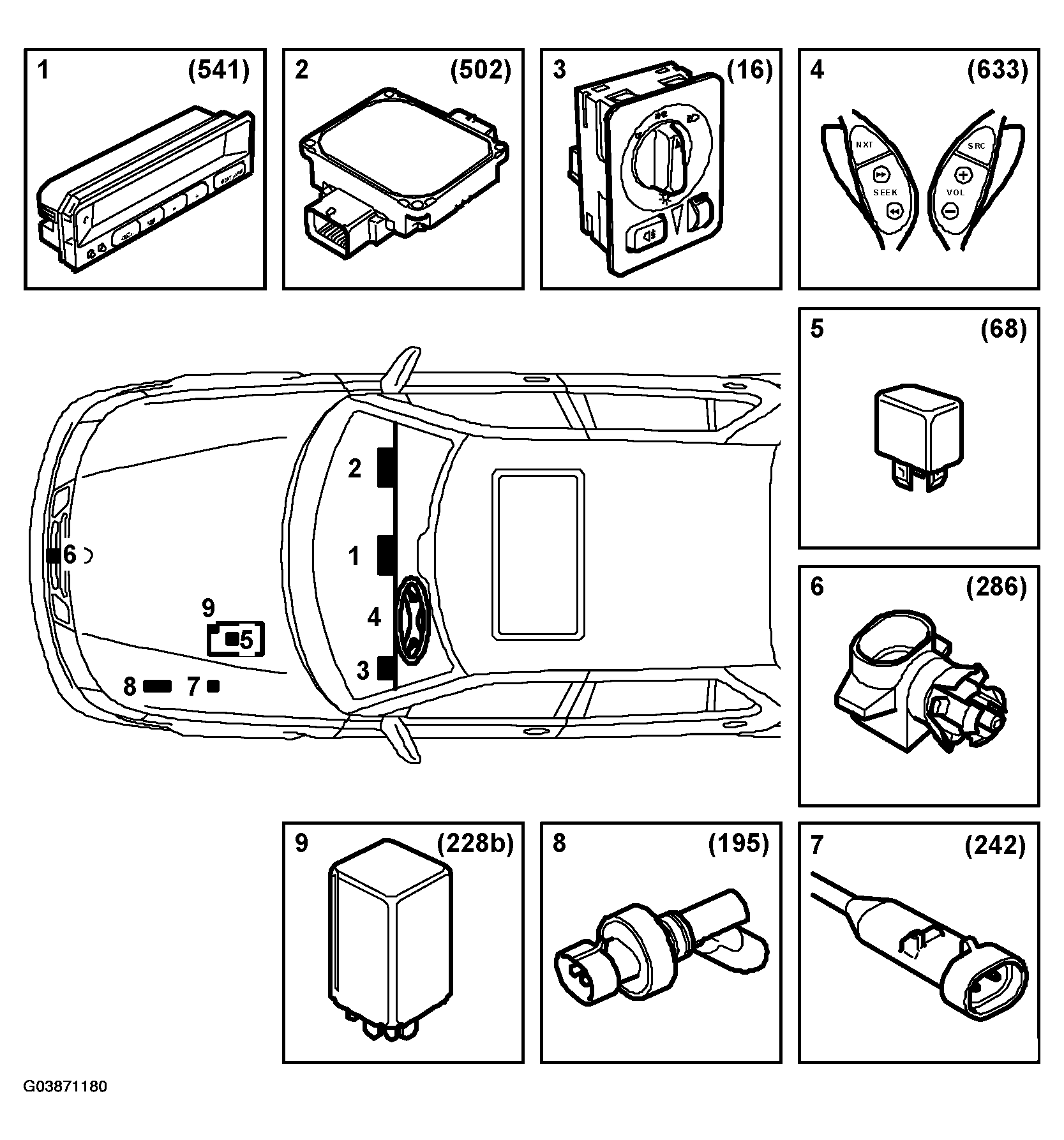

Fig 1: View Of SID And TCM Components
G03871180Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. SID, (541)
  2. TCM (502)
  3. Rheostat (16)
  4. Steering wheel controls (633)
  5. Horn relay (68)
  6. Outside temperature sensor (286)
  7. Coolant level sensor (242)
  8. Washer fluid level sensor (195)
  9. Filament monitor, front (228B)
