Technical Description
>>
Control module outputs
Control module outputs

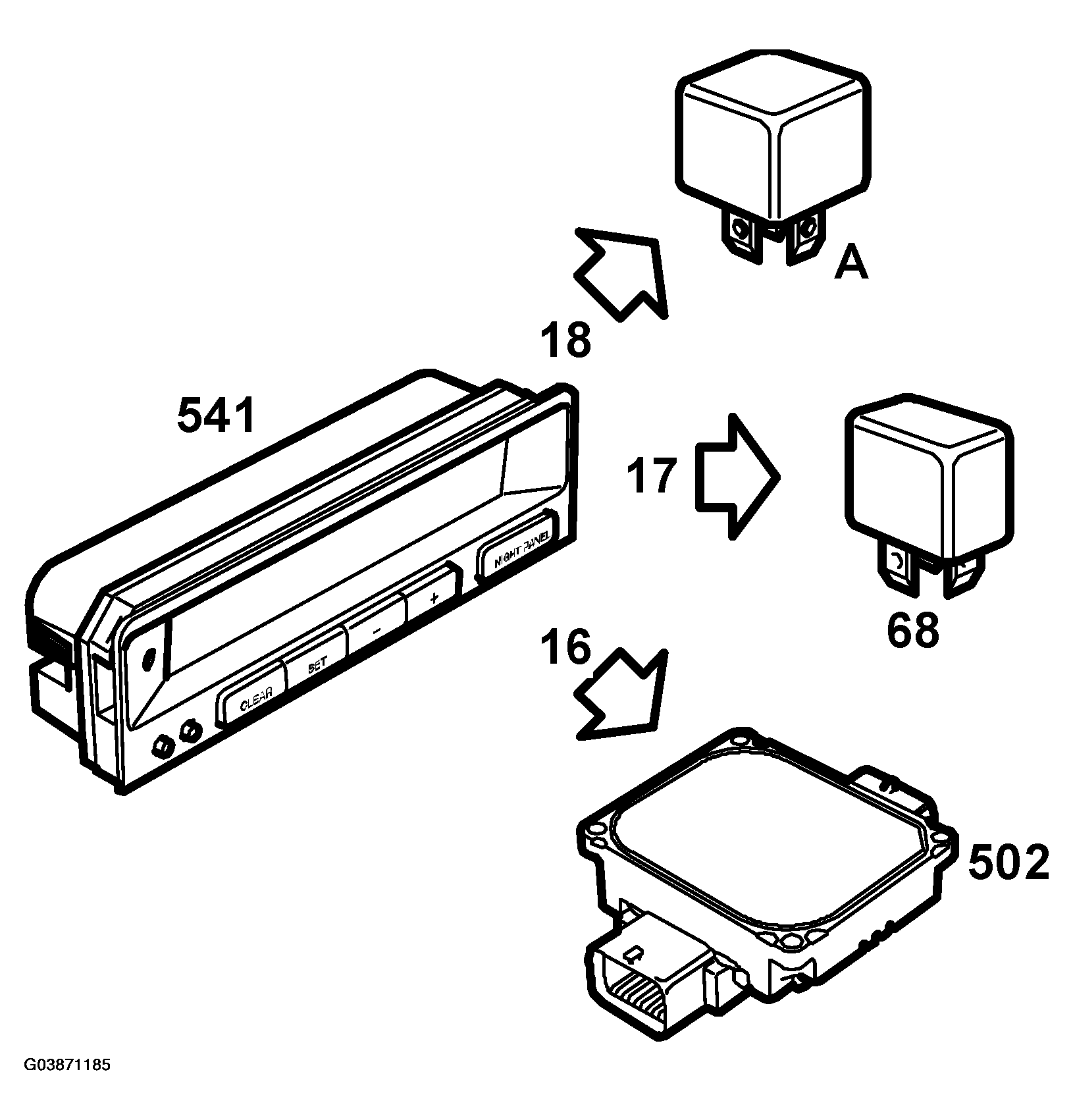

Fig 1: View Of Control Module
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Horn relay (68)
Parking heater relay (A)
TCM control module (502)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
