Technical Data: Rheostat

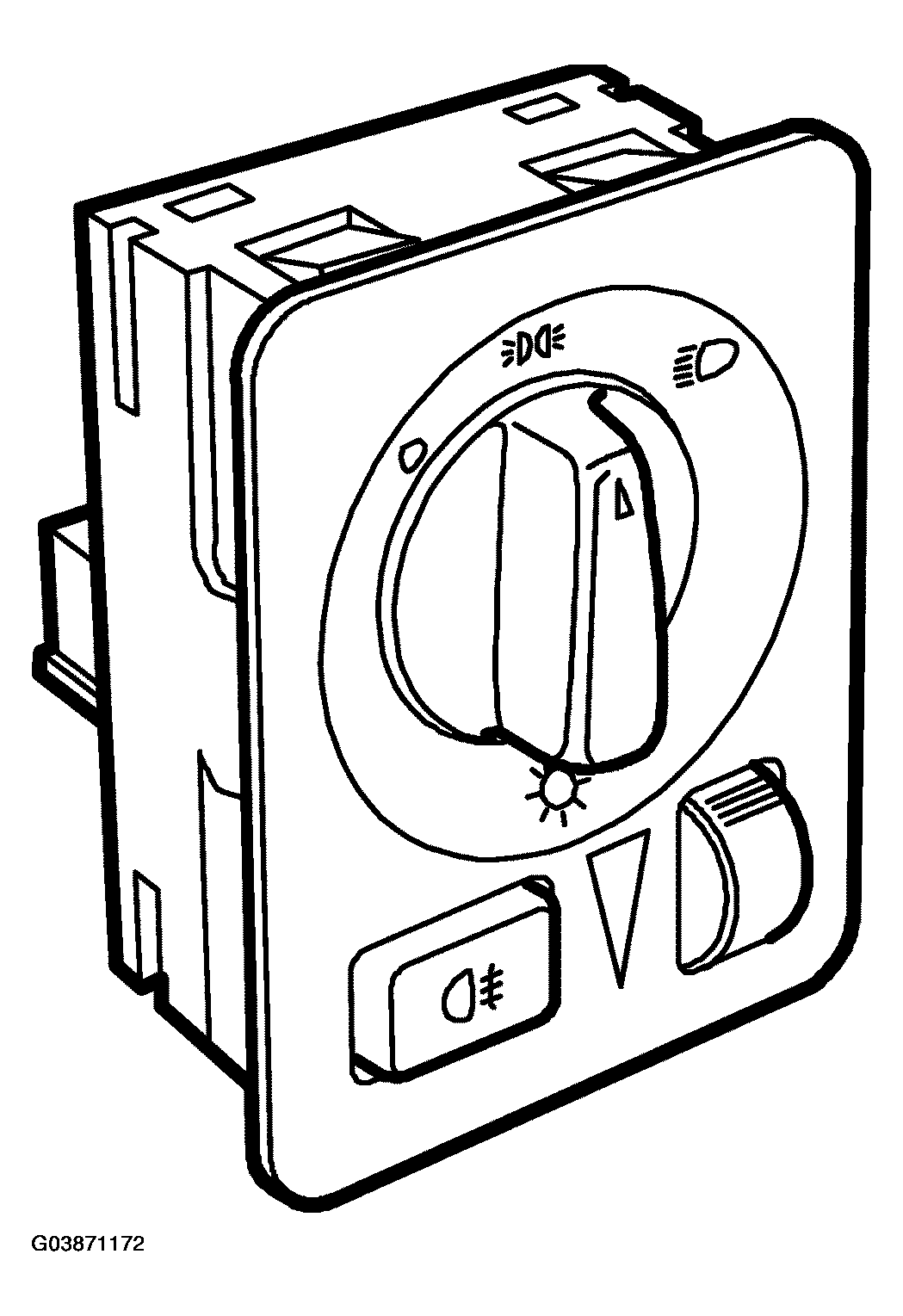

Fig 1: View Of Rheostat
G03871172Courtesy of SAAB-SCANIA OF AMERICA, INC.
TECHNICAL DATA - RHEOSTAT

Location   Integrated into the main lights switch.
Power supply V 5 (from SID)
Resistance (Rheostat potentiometer) min, ohm
max, ohm		 < 5.5
> 1000 +/- 25%
