Horn relay

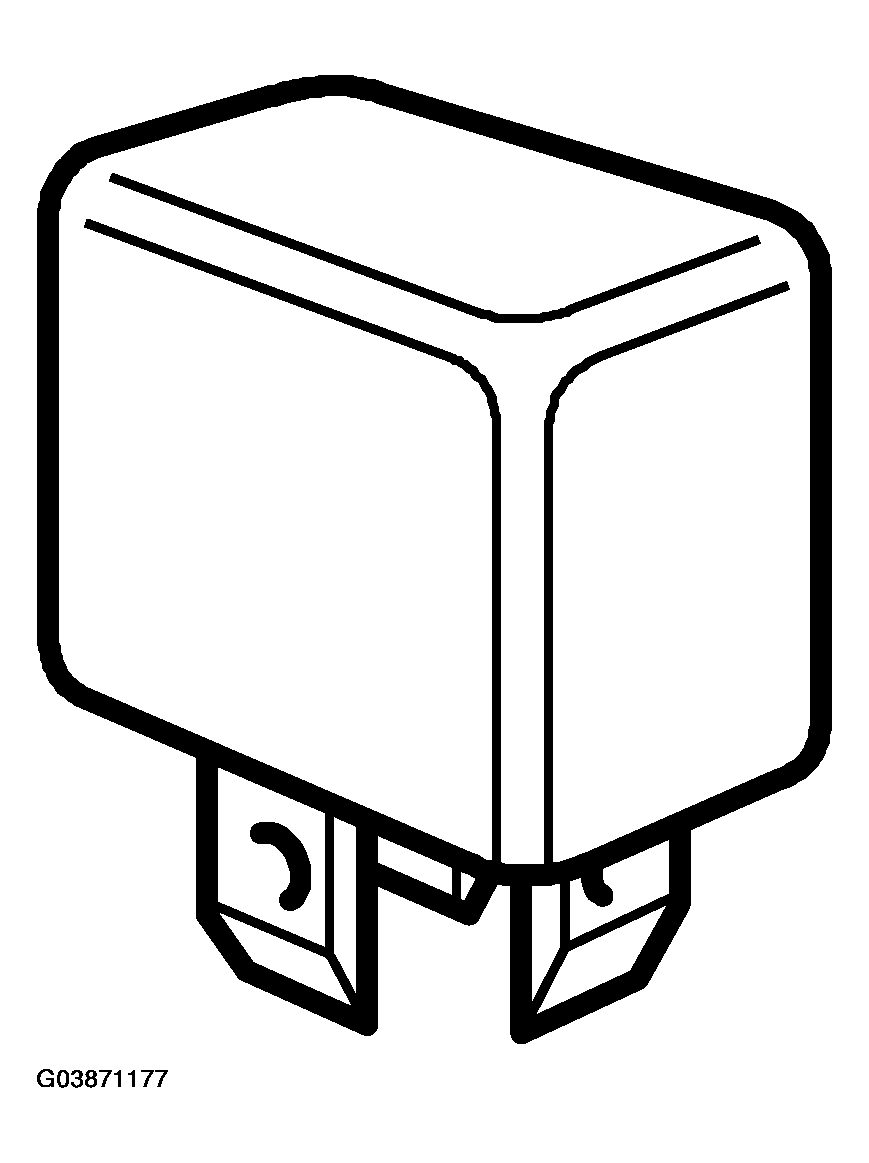

Fig 1: View Of Horn Relay
G03871177Courtesy of SAAB-SCANIA OF AMERICA, INC.
TECHNICAL DATA - HORN RELAY

Location   Main relay board in the engine bay.
Resistance of winding ohm 75 10%
Nominal operating current V 7 2
