Filament monitor

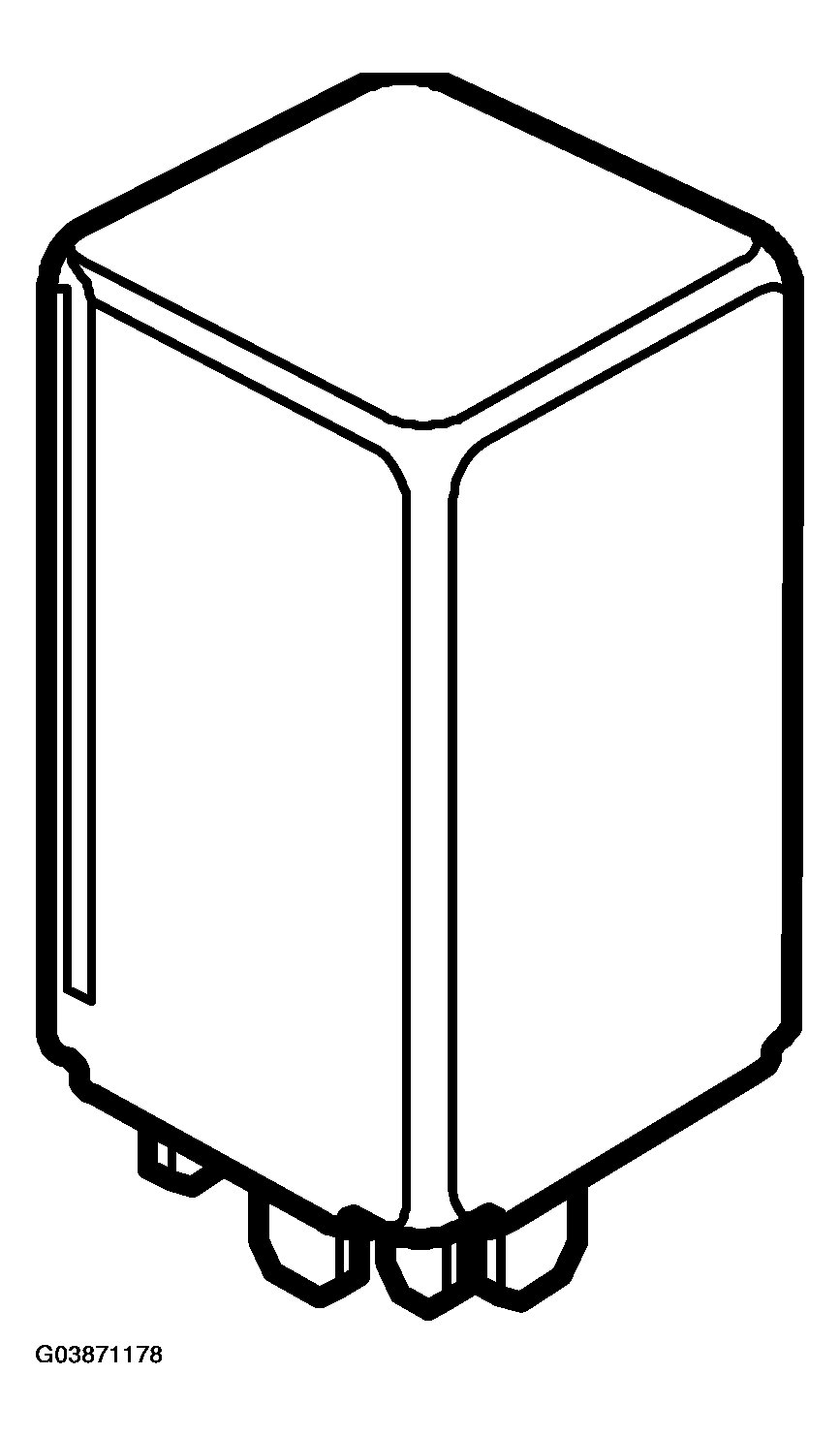

Fig 1: View Of Filament Monitor
Courtesy of SAAB-SCANIA OF AMERICA, INC.
TECHNICAL DATA - FILAMENT MONITOR
Location
Main relay board in the engine bay.
Characteristics
Faulty lamp
Closed
Courtesy of SAAB-SCANIA OF AMERICA, INC.
