Horn failure/Steering wheel controls partly inoperative: Notes

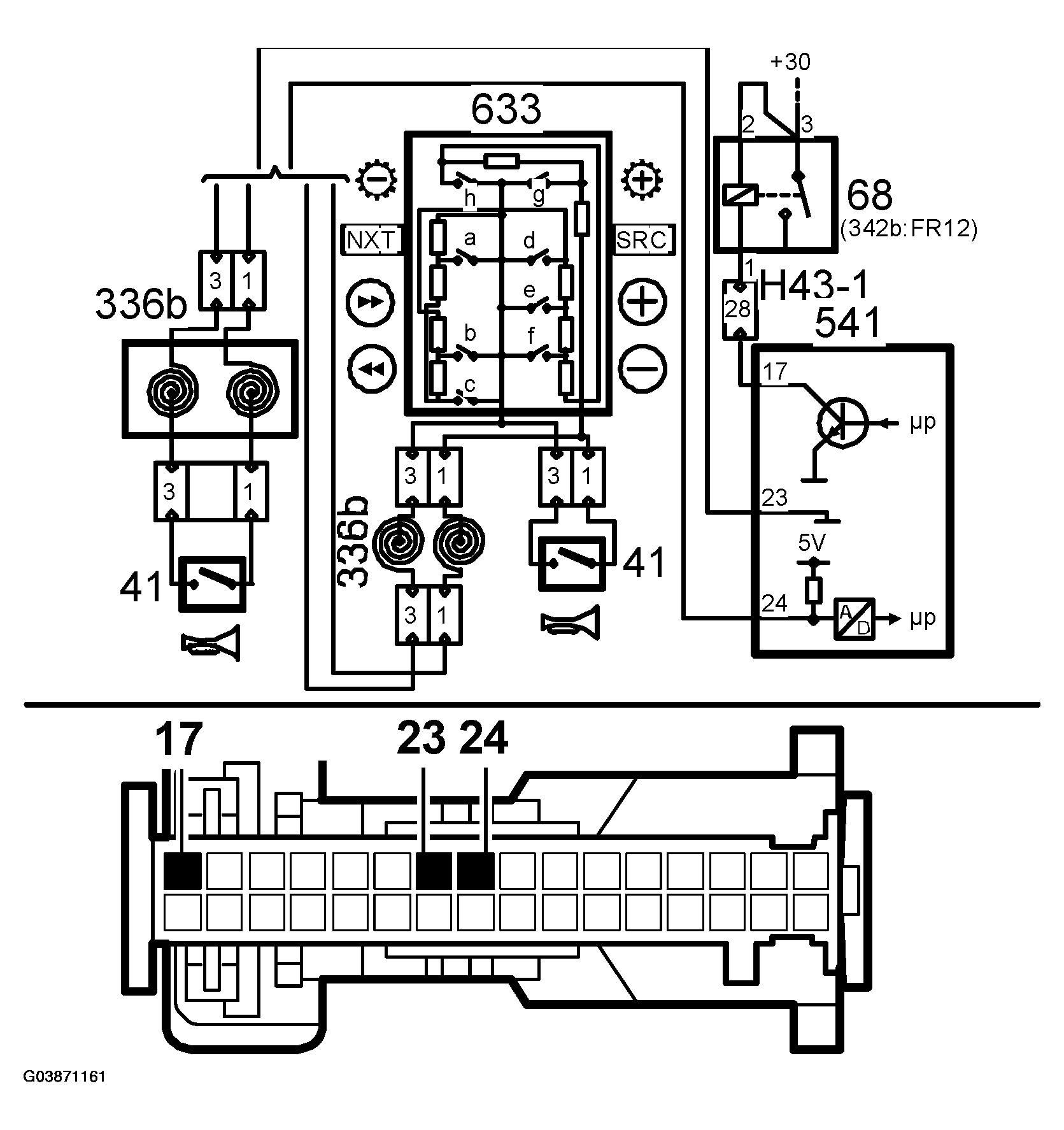

Fig 1: Horn Failure/Steering Wheel Controls Partly Inoperative - Circuit Diagram

G03871161

Courtesy of SAAB-SCANIA OF AMERICA, INC.
