Erroneous indication of "Washer fluid level low. Refill": Notes

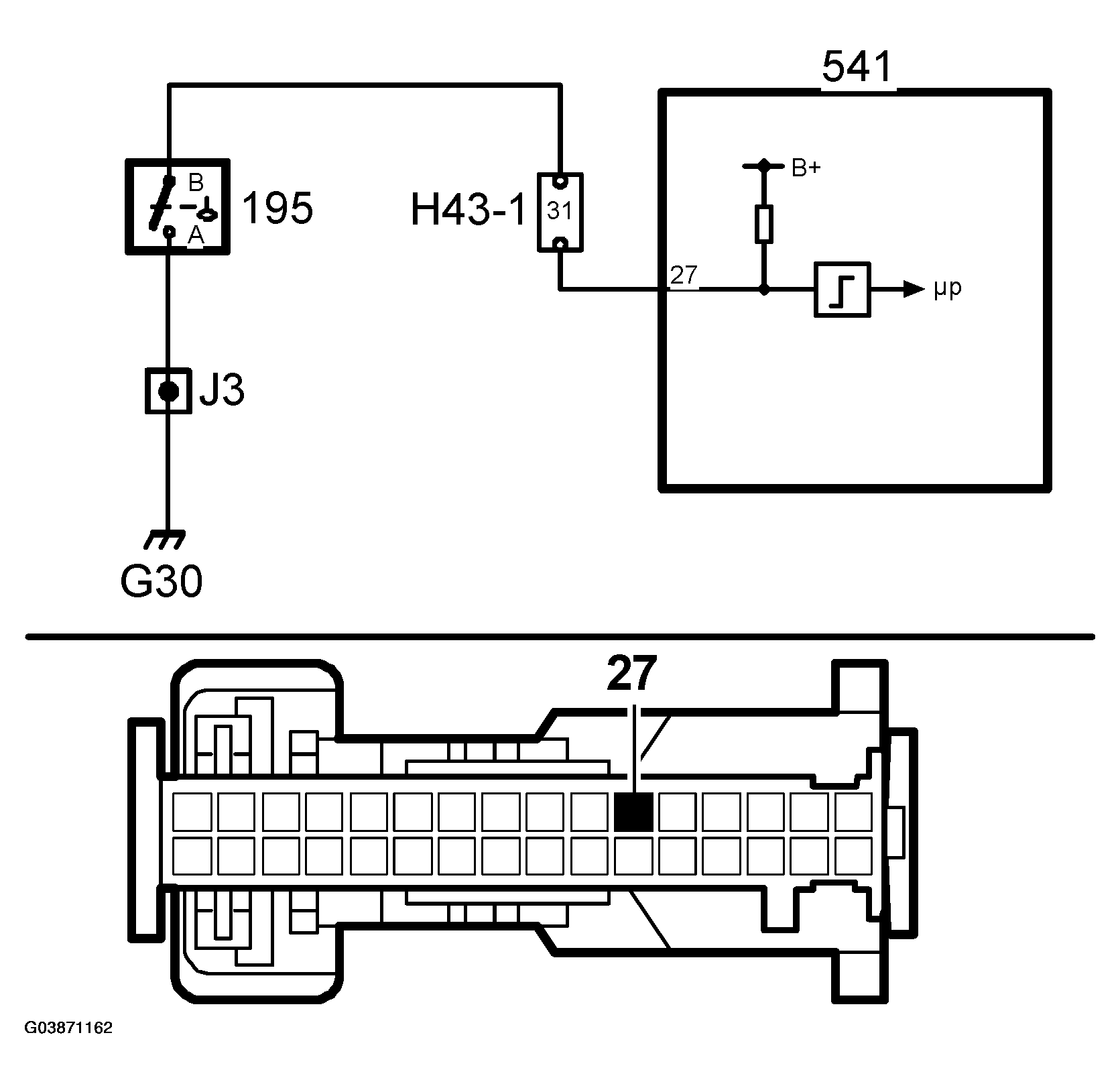

Fig 1: Erroneous Indication Of "Washer Fluid Level Low Refill" - Circuit Diagram

G03871162

Courtesy of SAAB-SCANIA OF AMERICA, INC.
