Home >> Saab >> 2005 >> 9-5 Linear, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> SAAB Information Display (SID) >> Fault Diagnosis, Symptoms >> Erroneous indication of "Coolant level low. Refill." >> Notes

Erroneous indication of "Coolant level low. Refill.": Notes

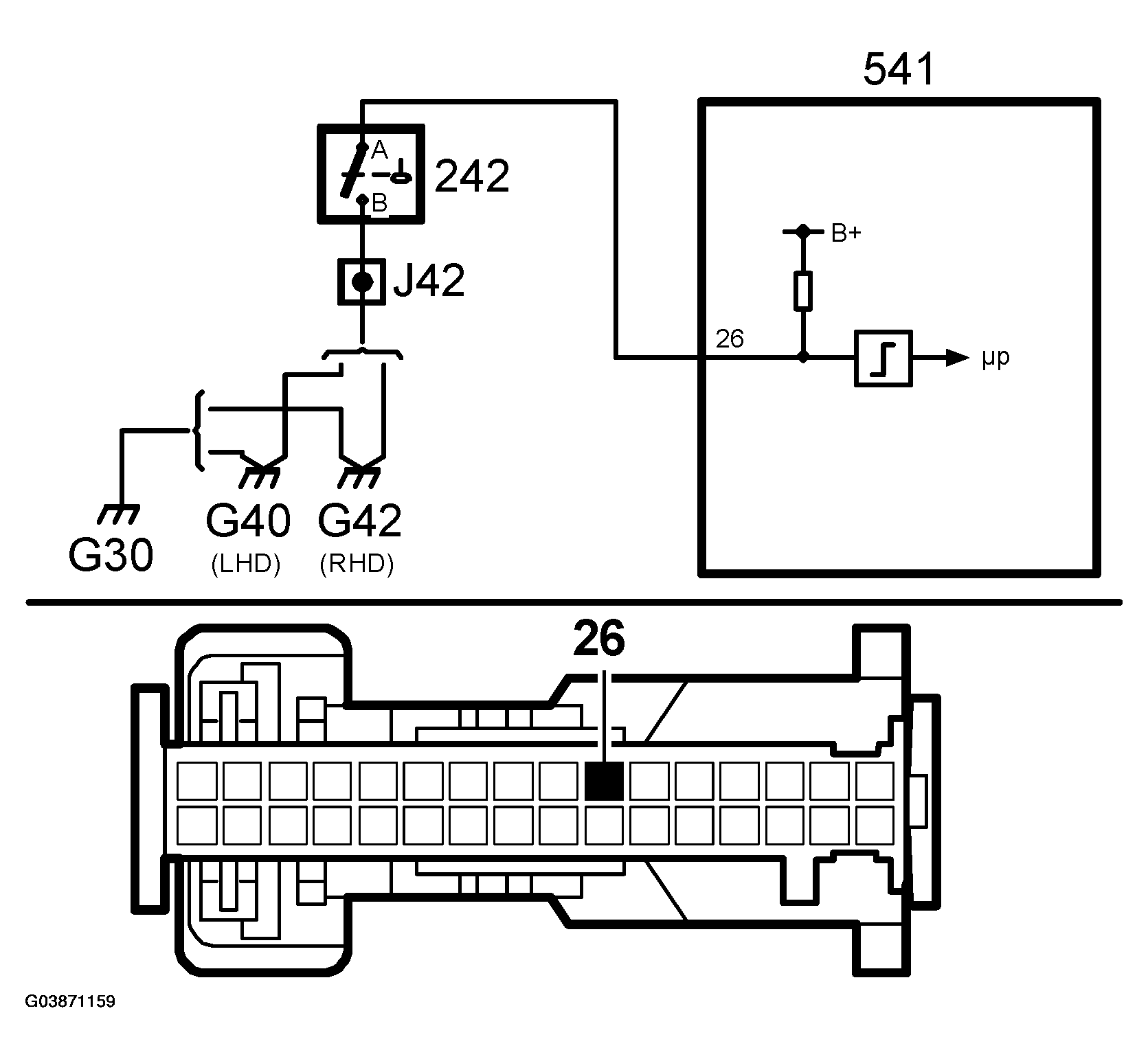

Fig 1: Erroneous Indication Of "Coolant Level Low. Refill." - Circuit Diagram

G03871159

Courtesy of SAAB-SCANIA OF AMERICA, INC.
