DTC B2371: Steering Wheel Controls - Open Circuit/Faulty: Notes

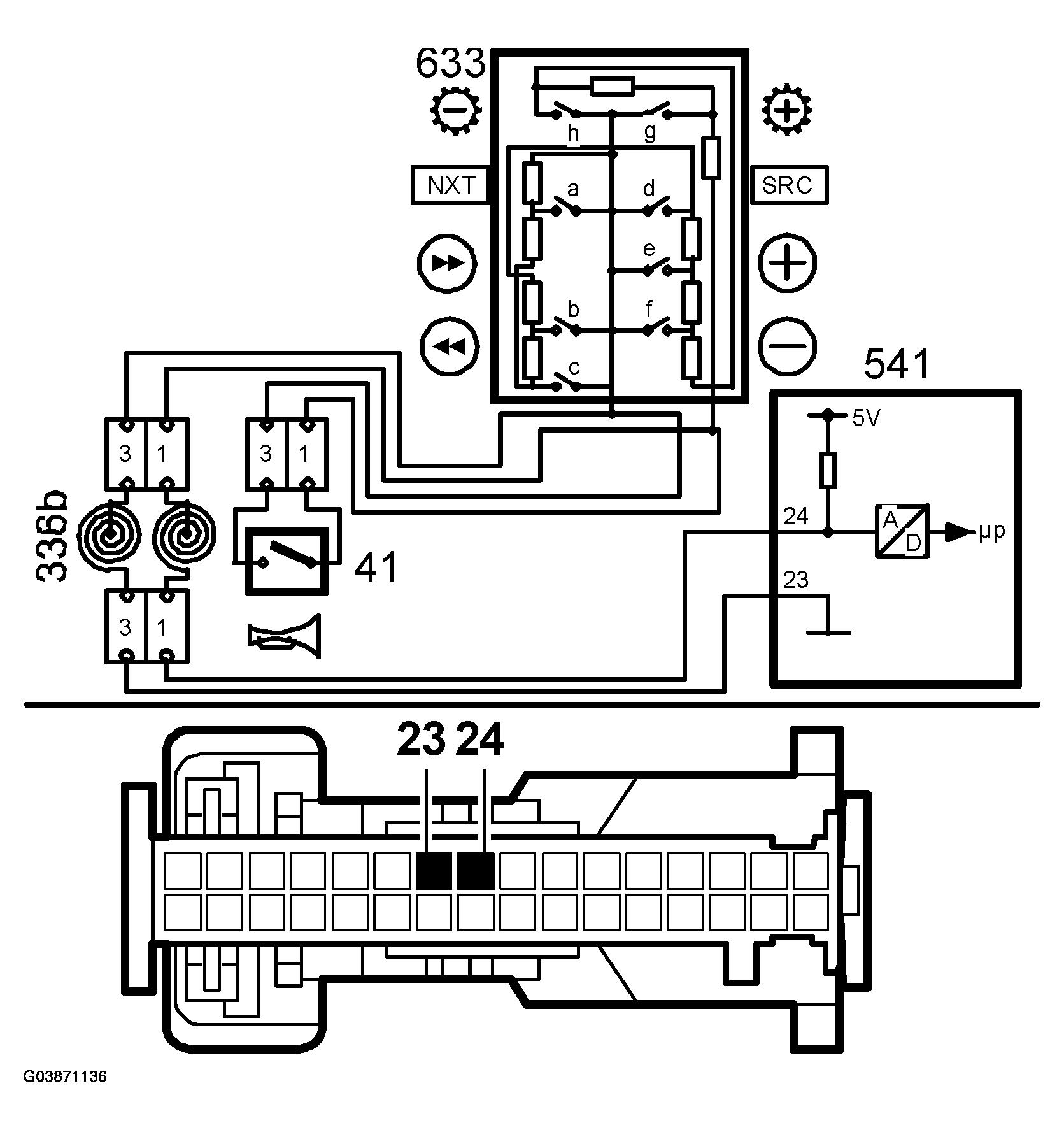

Fig 1: B2371: Steering Wheel Controls Open Circuit/Faulty - Circuit Diagram (1 Of 2)
G03871136Courtesy of SAAB-SCANIA OF AMERICA, INC.

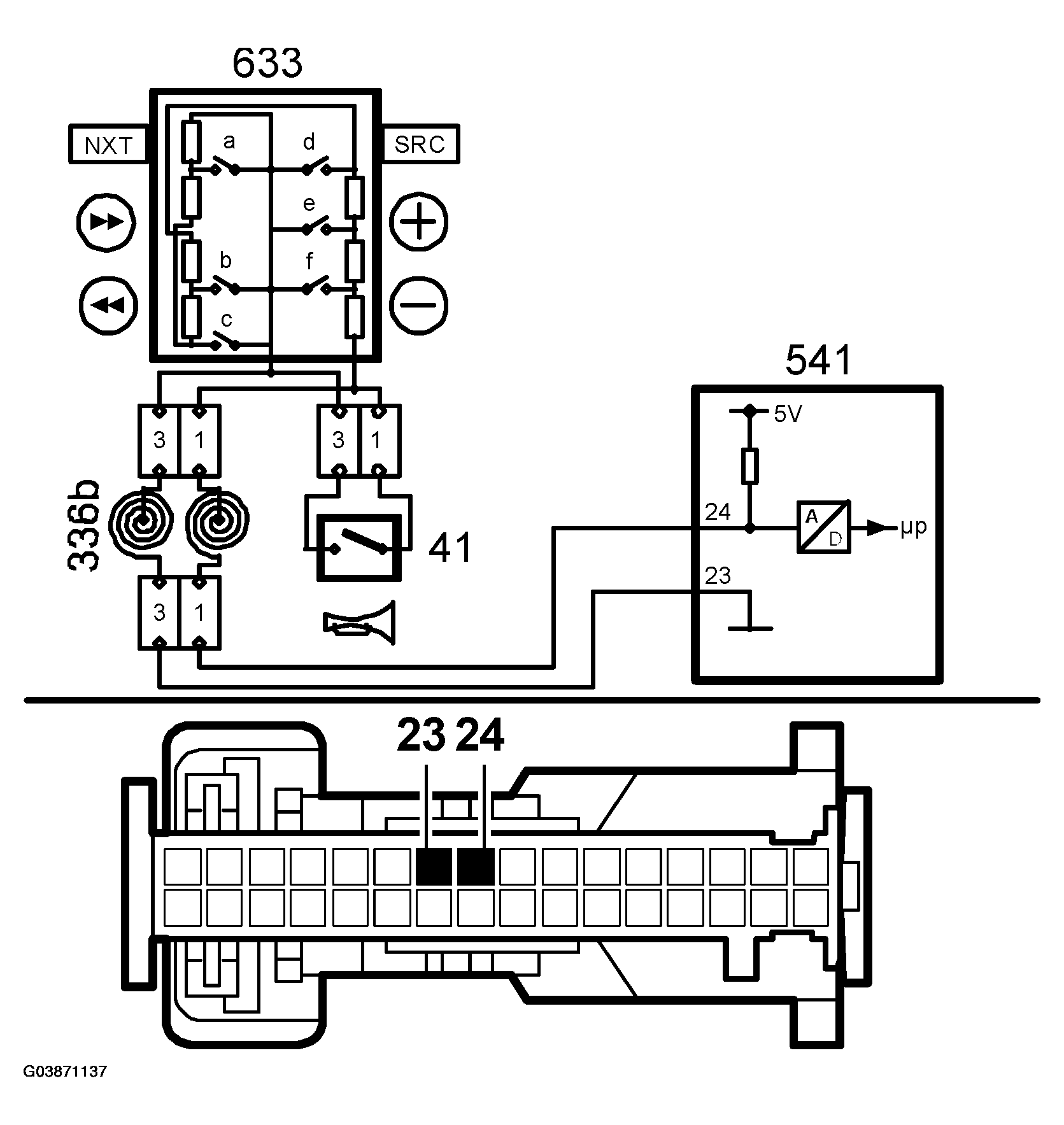

Fig 2: B2371: Steering Wheel Controls Open Circuit/Faulty - Circuit Diagram (2 Of 2)
G03871137Courtesy of SAAB-SCANIA OF AMERICA, INC.
