DTC B1190: Horn Relay - Short To Ground: Notes

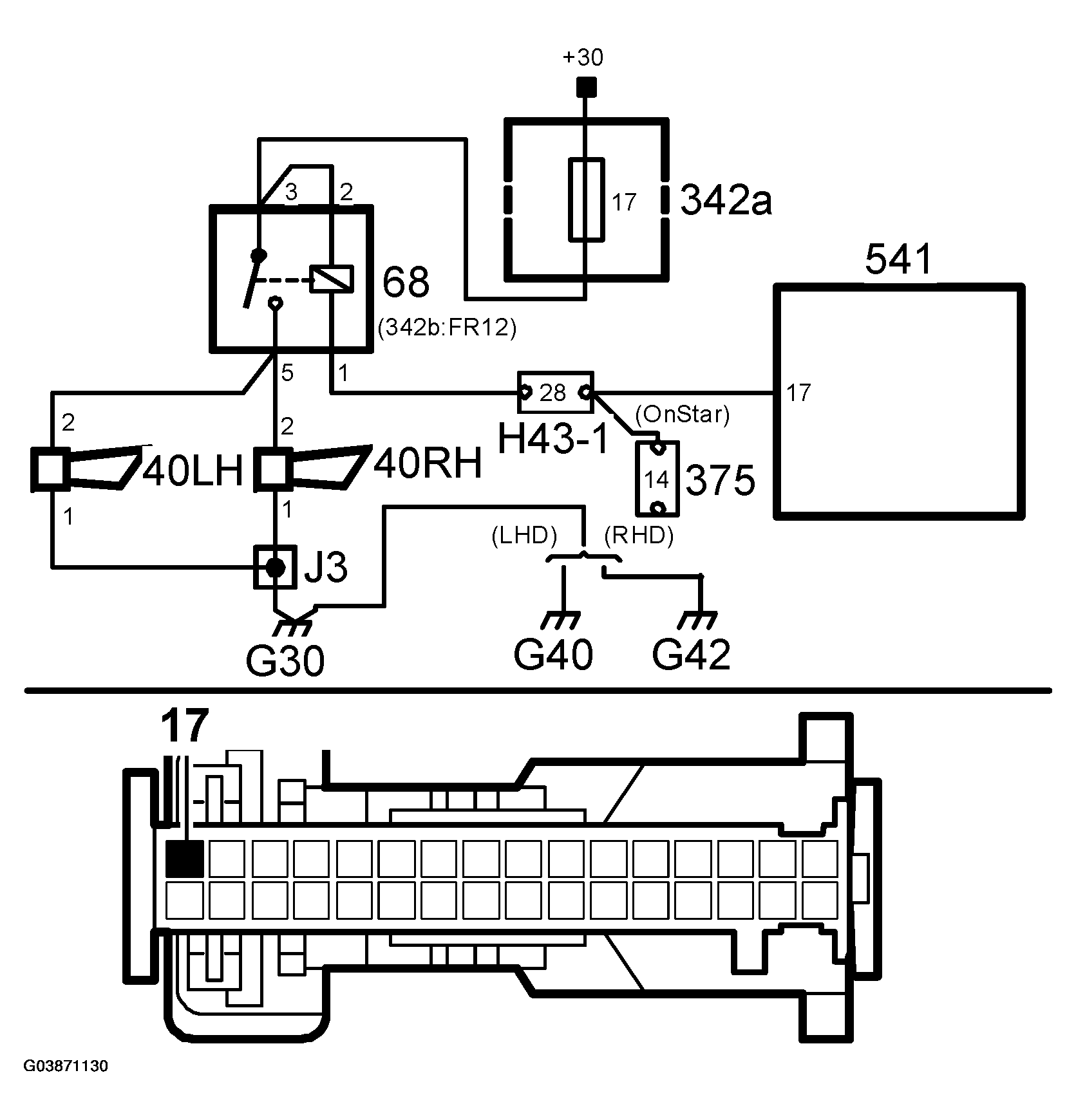

Fig 1: B1190: Horn Relay, Short To Ground - Circuit Diagram

G03871130

Courtesy of SAAB-SCANIA OF AMERICA, INC.
