Crimp connection J42, instrument harness

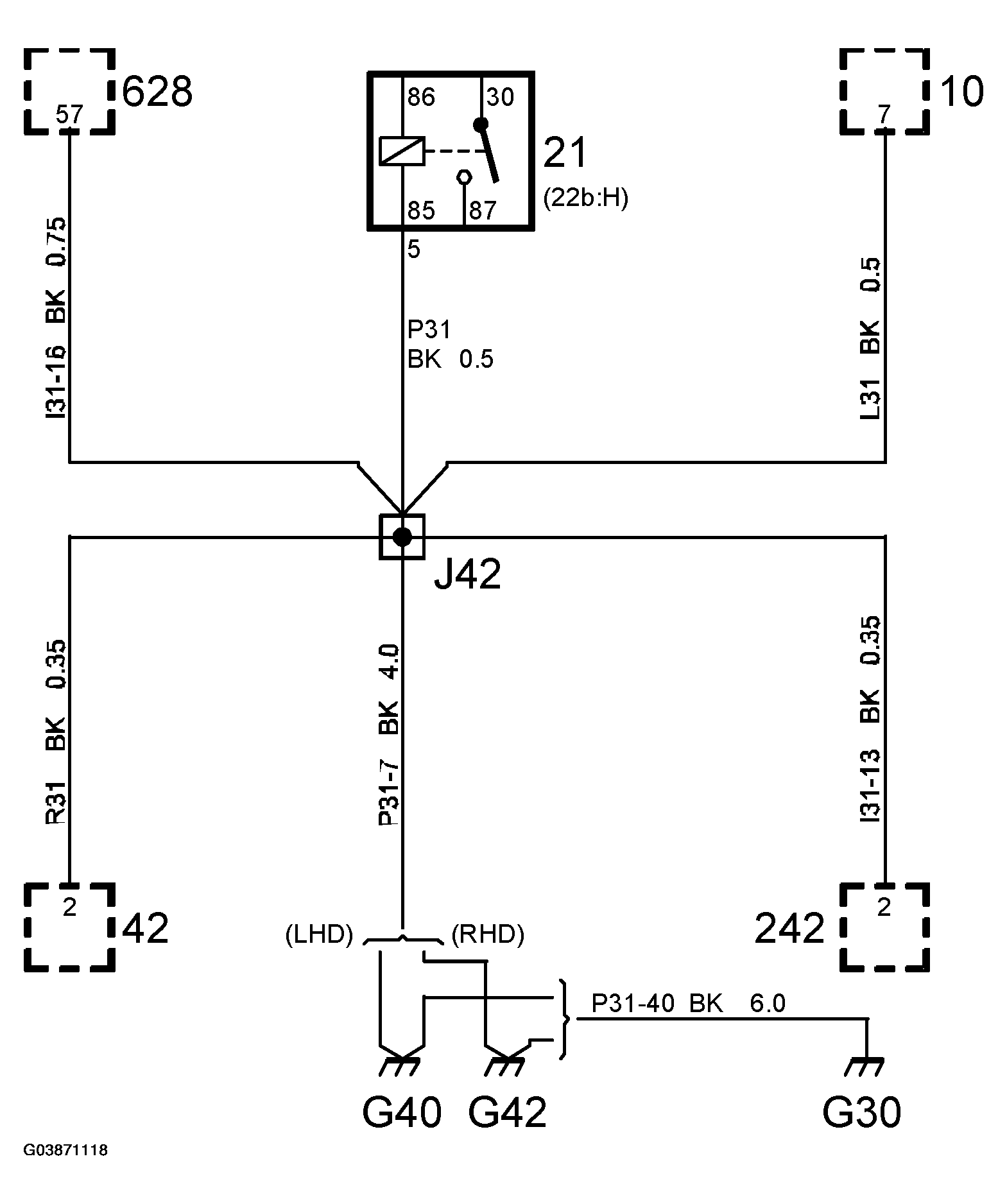

Fig 1: Crimp Connection J42, Instrument Harness - Circuit Diagram

G03871118

Courtesy of SAAB-SCANIA OF AMERICA, INC.
