To fit

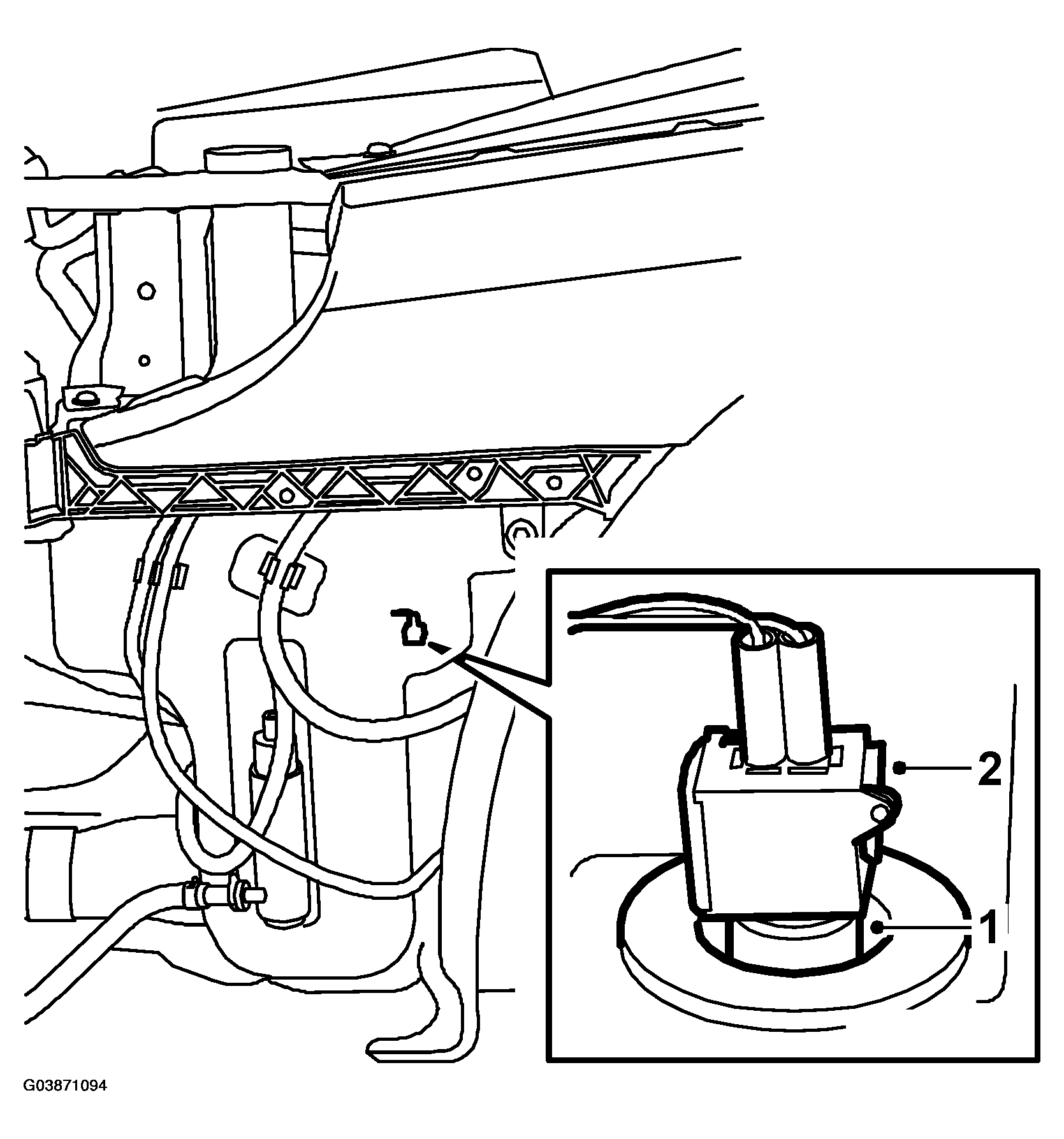

Fig 1: Illustration For Step 1-2
G03871094Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Press the level sensor into the washer fluid reservoir with the float hanging down.
  2. Plug in the level sensor connector.
  3. Lower the car.
  4. Fill with washer fluid.
