Home >> Saab >> 2005 >> 9-5 Linear, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> SAAB Information Display (SID) >> Adjustment - Replacement >> Rheostat >> To fit

To fit

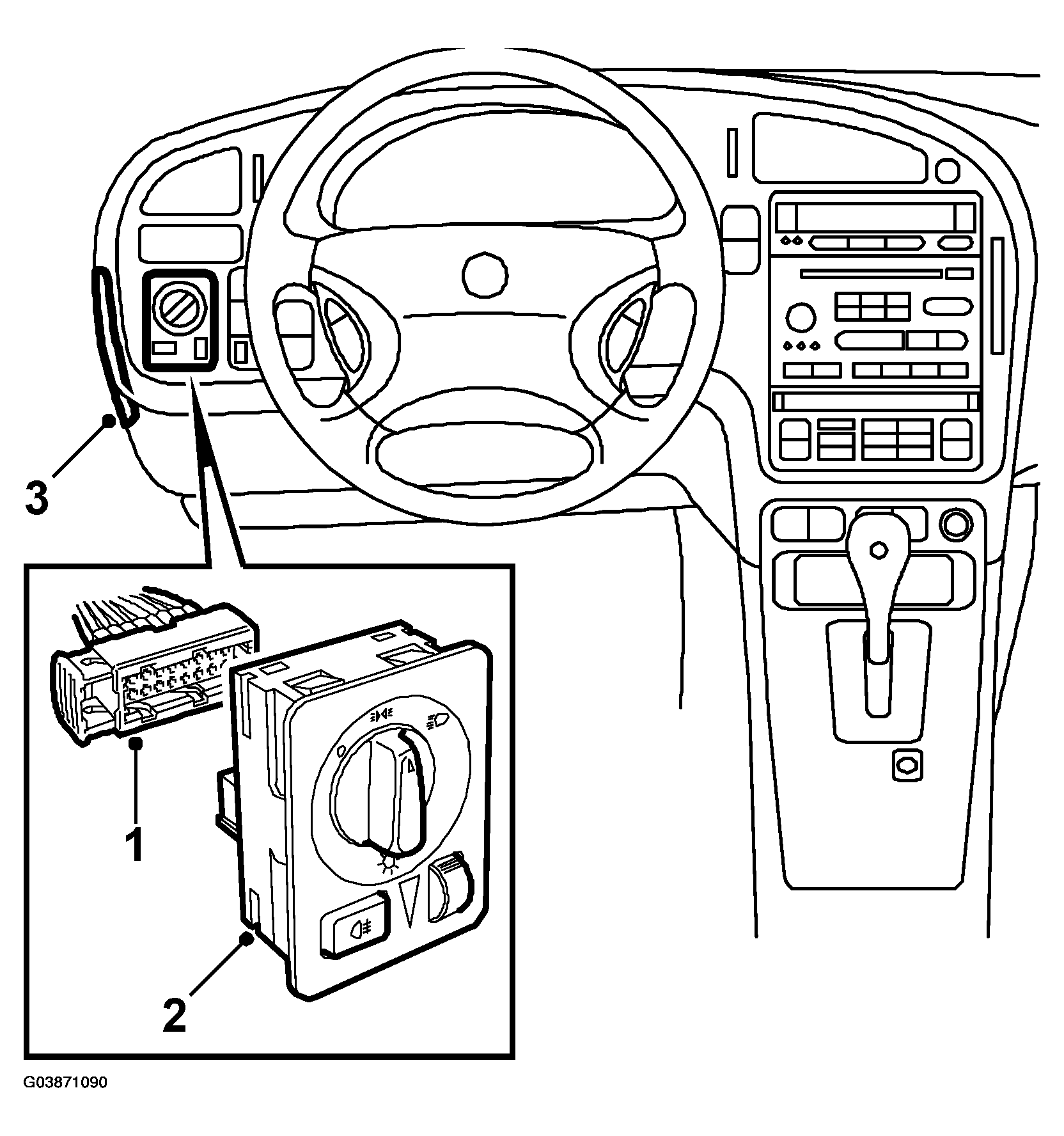

Fig 1: Illustration For Step 1-3
G03871090Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Plug in the lights switch connector.
  2. Fit the lights switch.
  3. Refit the fuse cover.
