System overview

4D

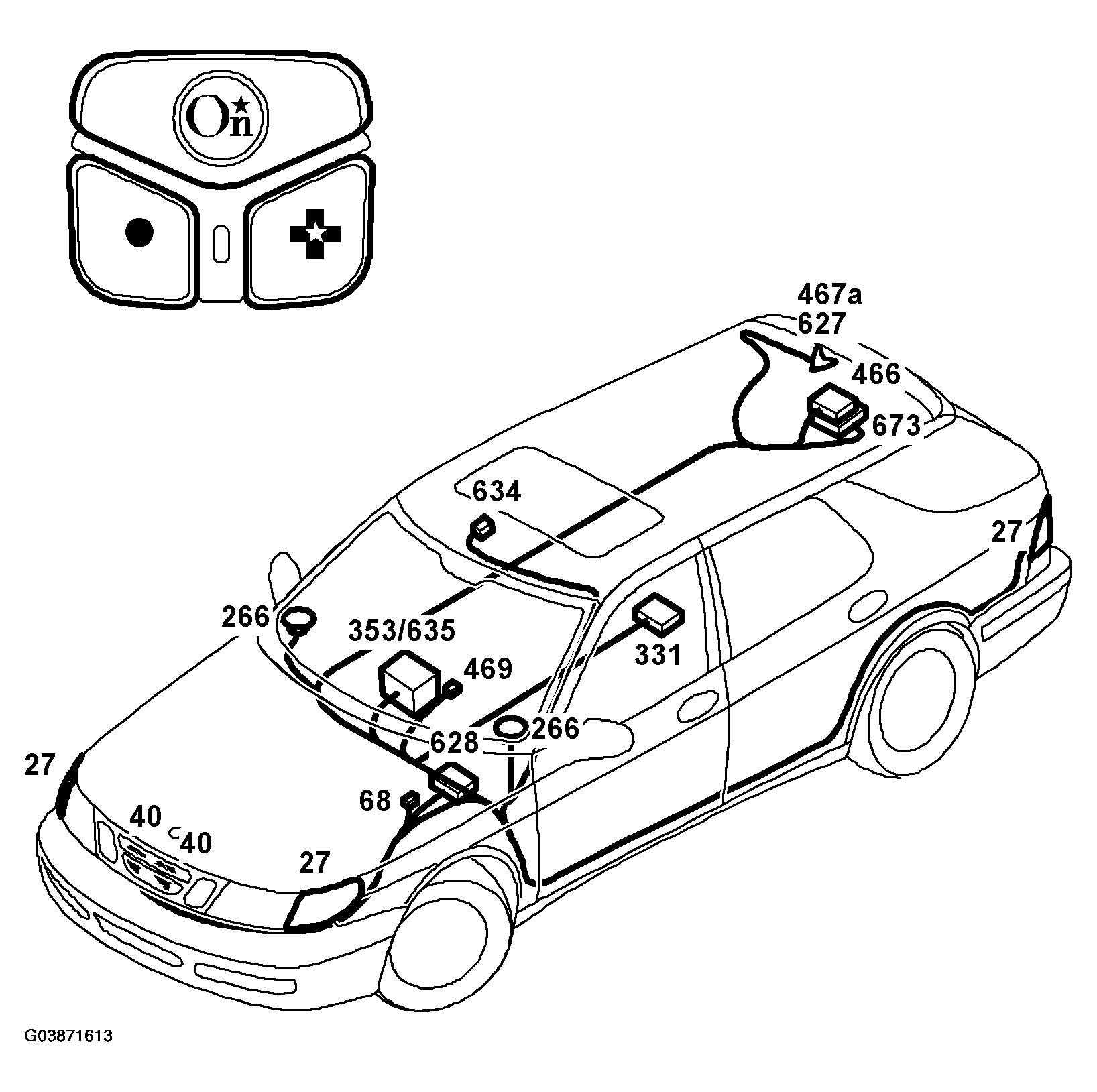

Fig 1: Identifying Components Location (4D)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

5D

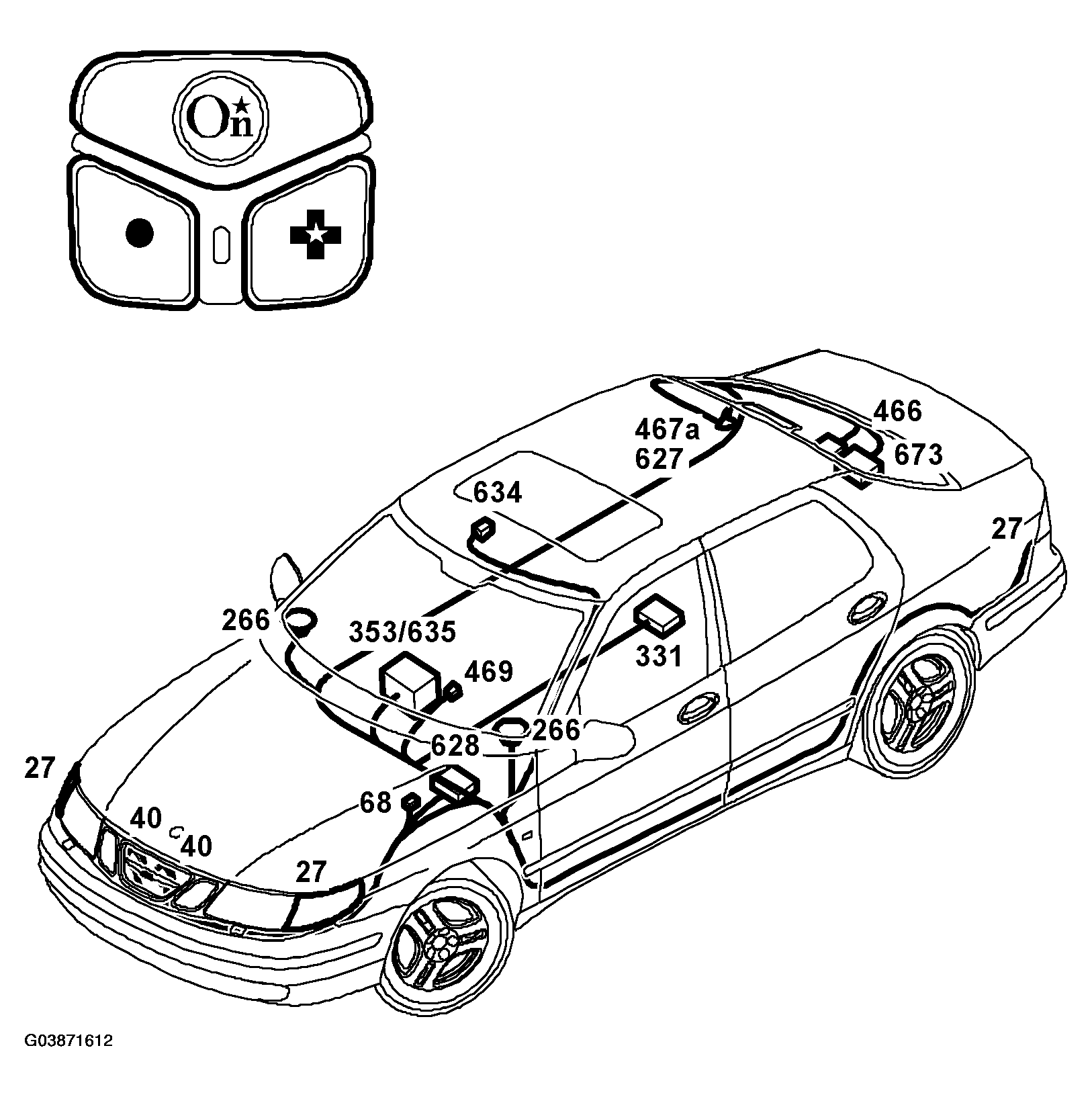

Fig 2: Identifying Components Location (5D)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

• Control module. OnStar, VCIM (673)
• Control module, OnStar, OIM (466)
• Control button unit, OnStar (469)
• Antenna, mobile phone/GPS (627/467a)
• Main unit, audio system (353/635)
• Speaker (266)
• Microphone (634)
• SRS/Airbag control module (331)
• Horn relay (68)
• Horn (40)
• Control module DICE (628)
• Lamp, direction indicators(27)
