Ground connection

The main unit is grounded via pin 8 (K16) to grounding point G41P

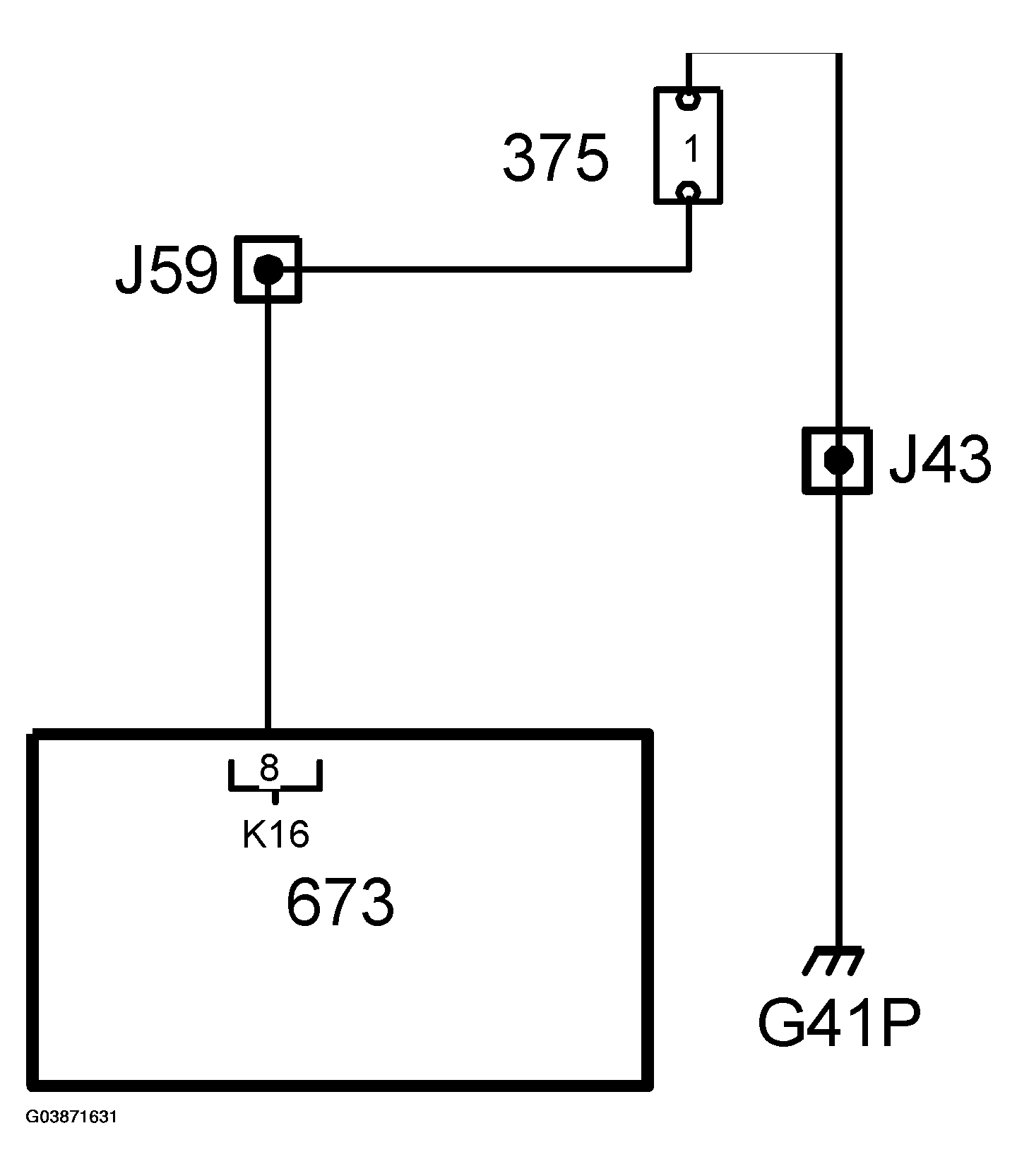

Fig 1: Circuit Diagram OnStar VCIM Ground

G03871631

Courtesy of SAAB-SCANIA OF AMERICA, INC.
