ONSTAR - 9-5
>>
Technical description
>>
OnStar, OIM, control module inputs
OnStar, OIM, control module inputs

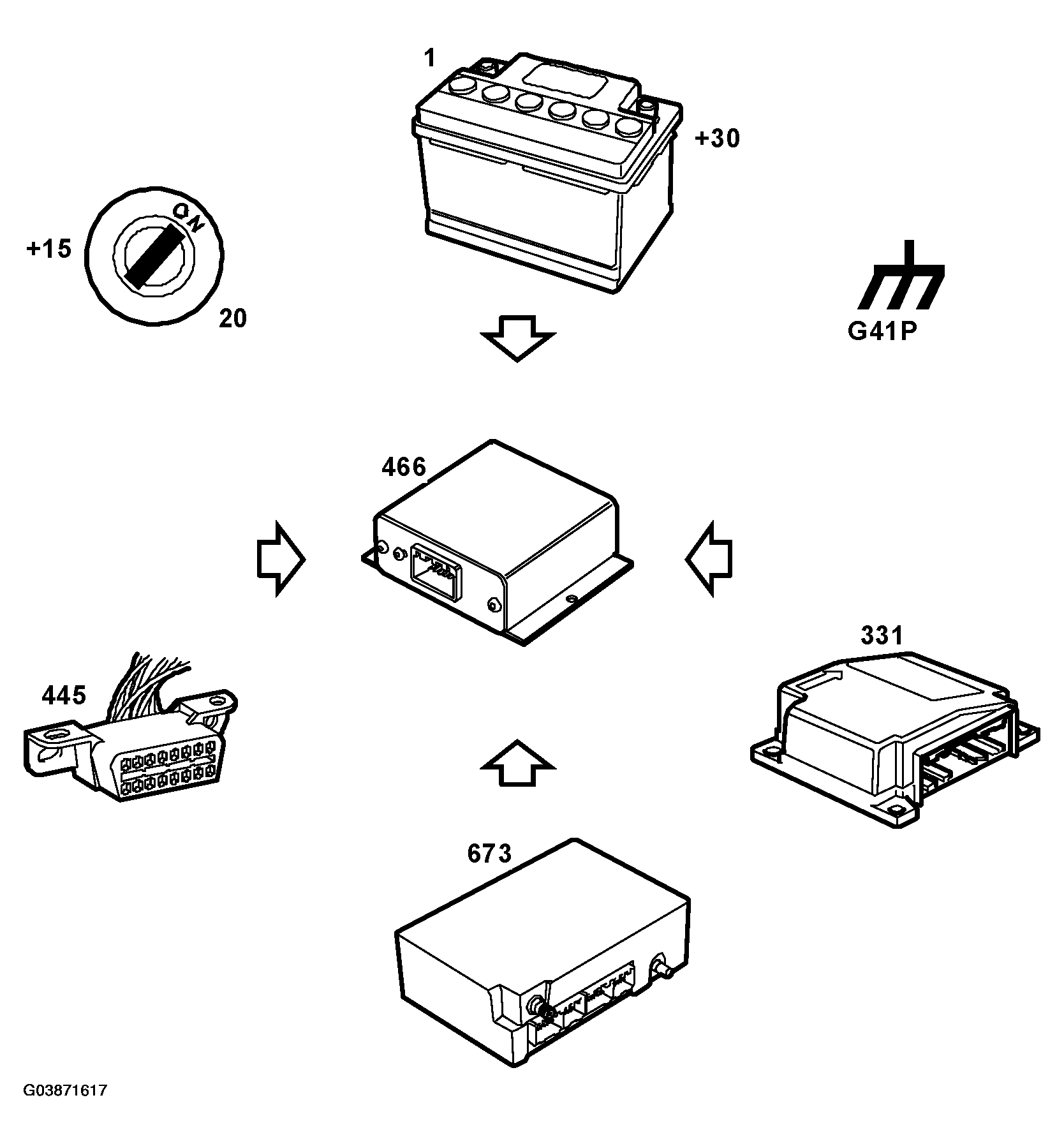

Fig 1: Communication Flow OnStar, OIM, Control Module Inputs
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Power supply +15 (20)
Power supply +30 (1)
Ground (G41P)
SRS/Airbag control module (331)
Communication lead (673)
Diagnostic communication (445)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
