Technical data: Microphone

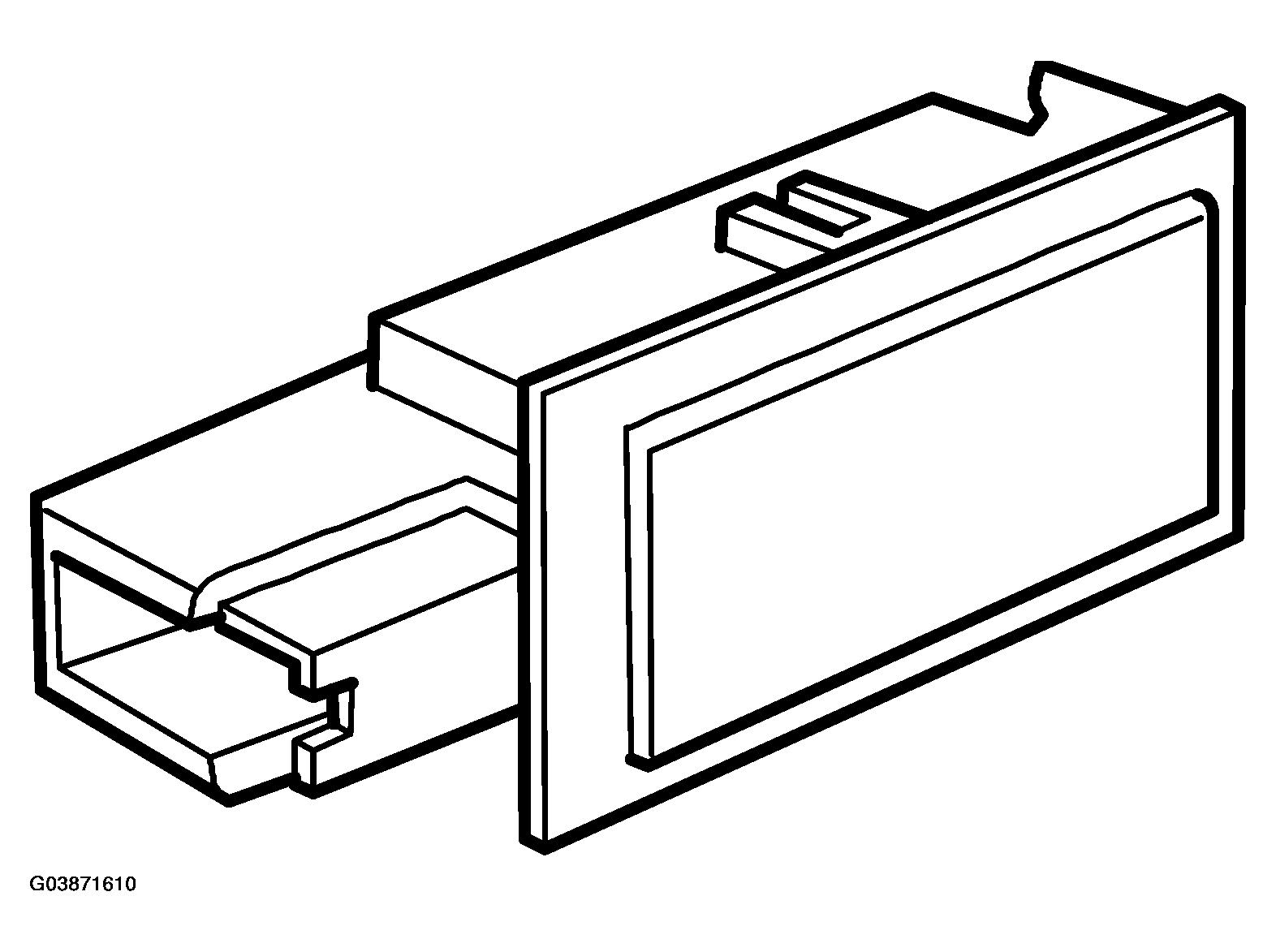

Fig 1: Identifying Microphone
G03871610Courtesy of SAAB-SCANIA OF AMERICA, INC.
MICROPHONE DESCRIPTION

Manufacturer Peiker Acoustic
Type Dynamic
Location In the roof console
Frequency response 300 Hz - 5 kHz 3 dB
High level output (active) Pin No. 1
Low level output (passive) Pin No. 2
Ground Pin No. 3
