Control button unit, OnStar (469)

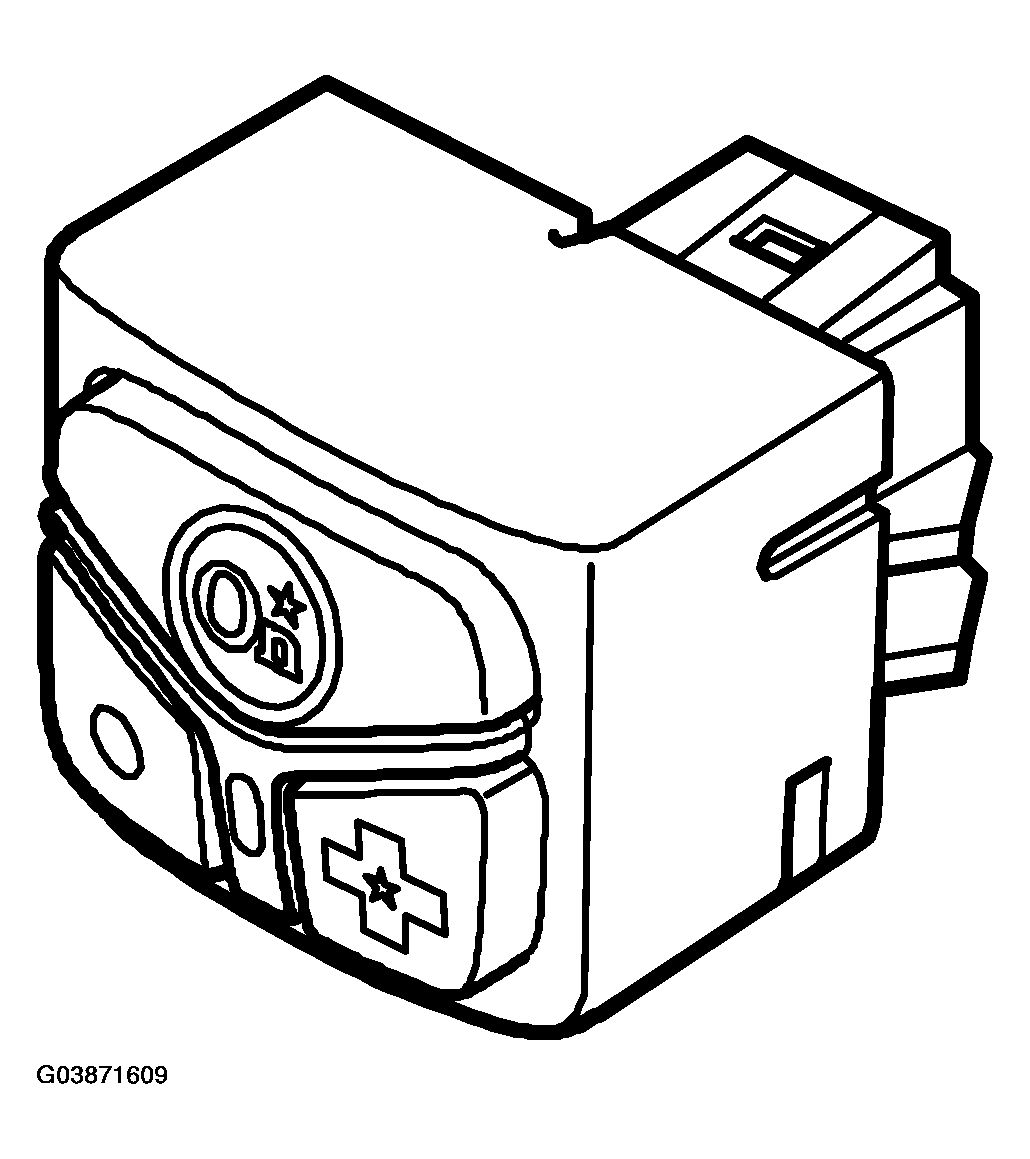

Fig 1: Identifying Control Button Unit OnStar (469)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

TECHNICAL DATA - CONTROL BUTTON UNIT, ONSTAR (469)

Power supply	Pin No.	6
Ground	Pin No.	3
Location		In the instrument panel, to the right of the steering wheel
Output signal, button depressed	Pin No.	1
Input signal, green indication	Pin No.	2
Input signal, red indication	Pin No.	4
Resistance value
Power supply	V	10
Emergency button	kO	1.5
OnStar Services Button	kO	3.0
White dot button	kO	13.0
Normal	kO	1000

Tolerance +/-2%
