The OnStar system does not start or there is no diagnostic communication with the system: Notes

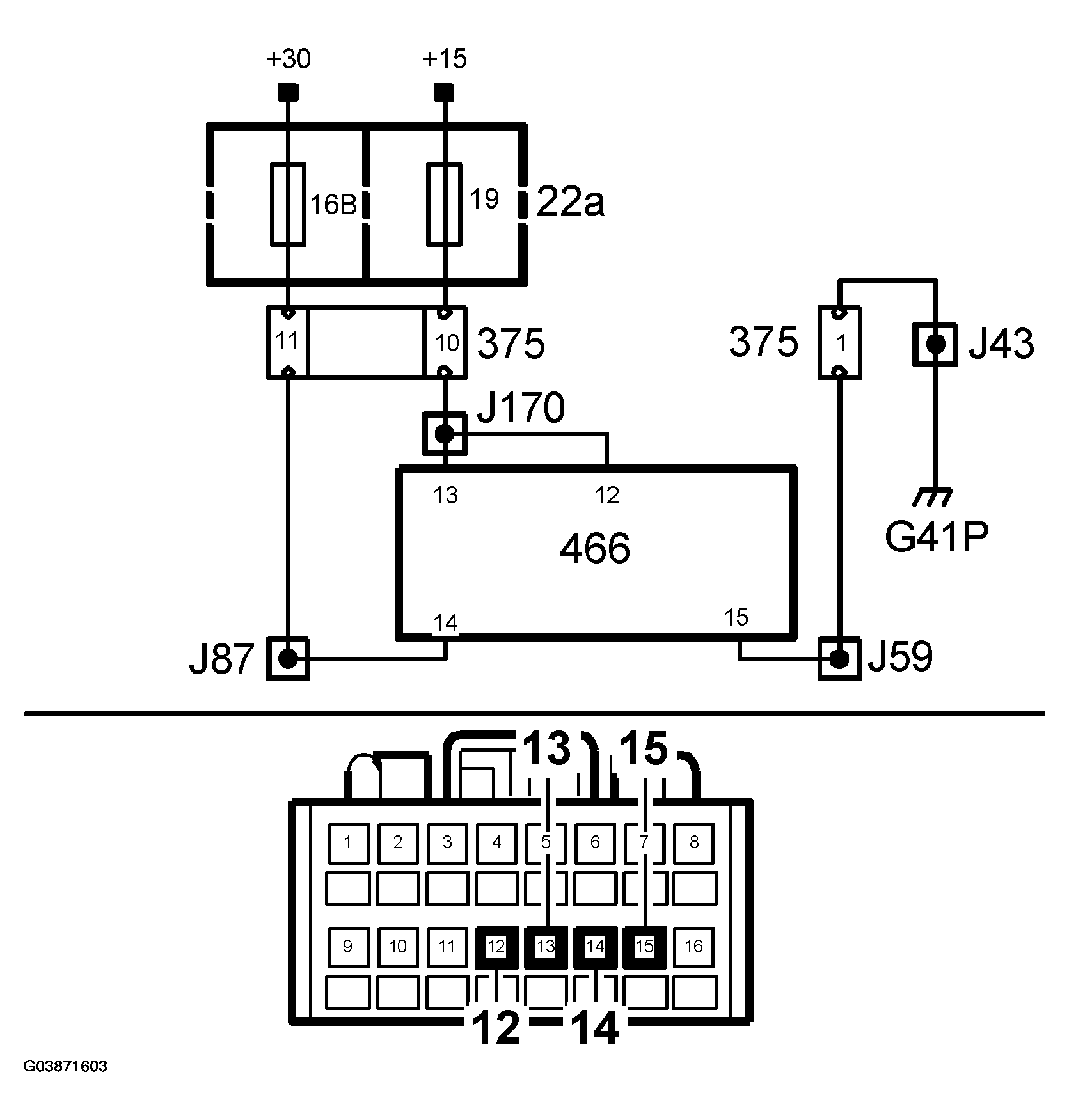

Fig 1: Circuit Diagram OnStar System K16 (1 Of 4)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

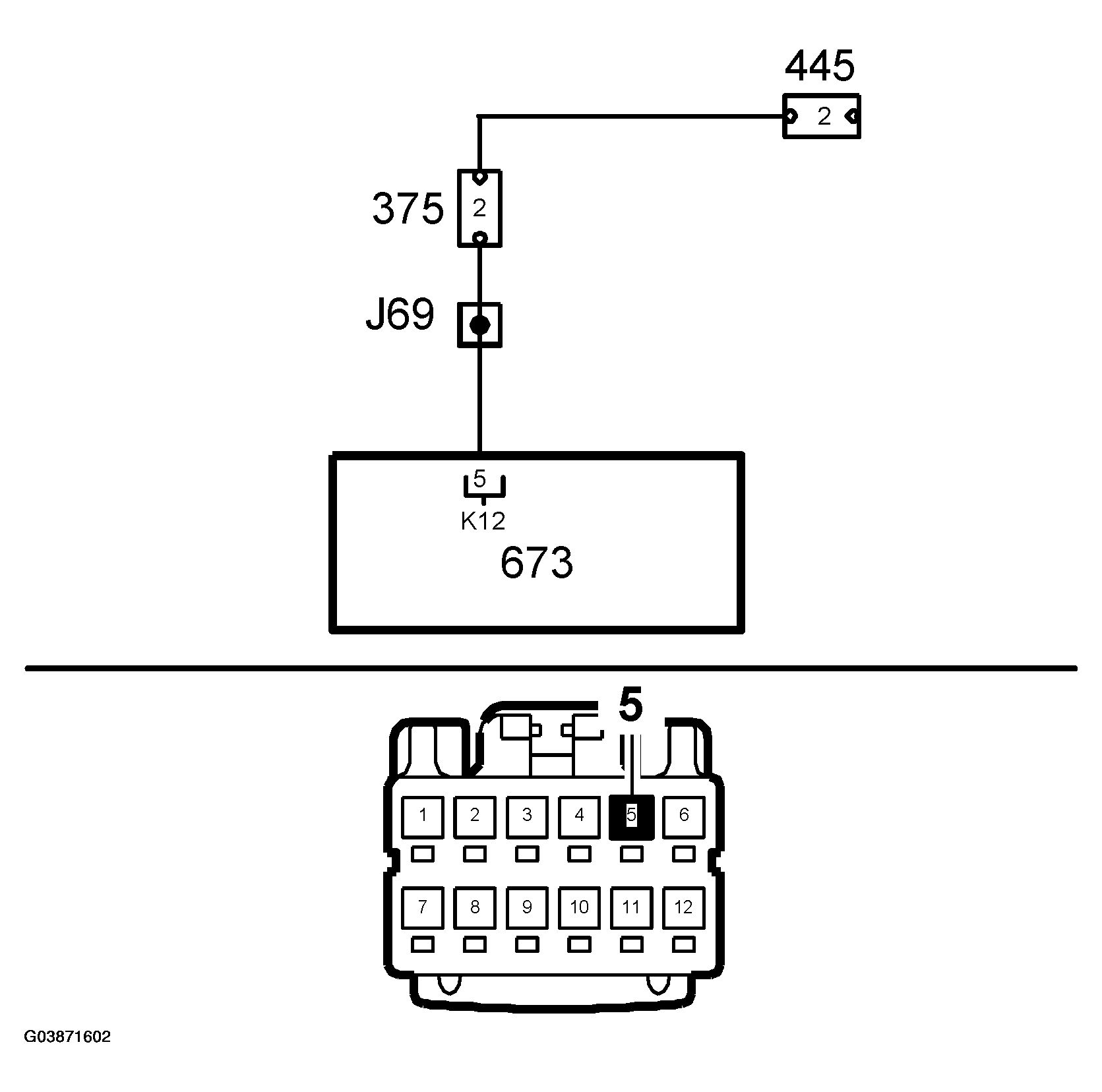

Fig 2: Circuit Diagram OnStar System K16 (2 Of 4)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

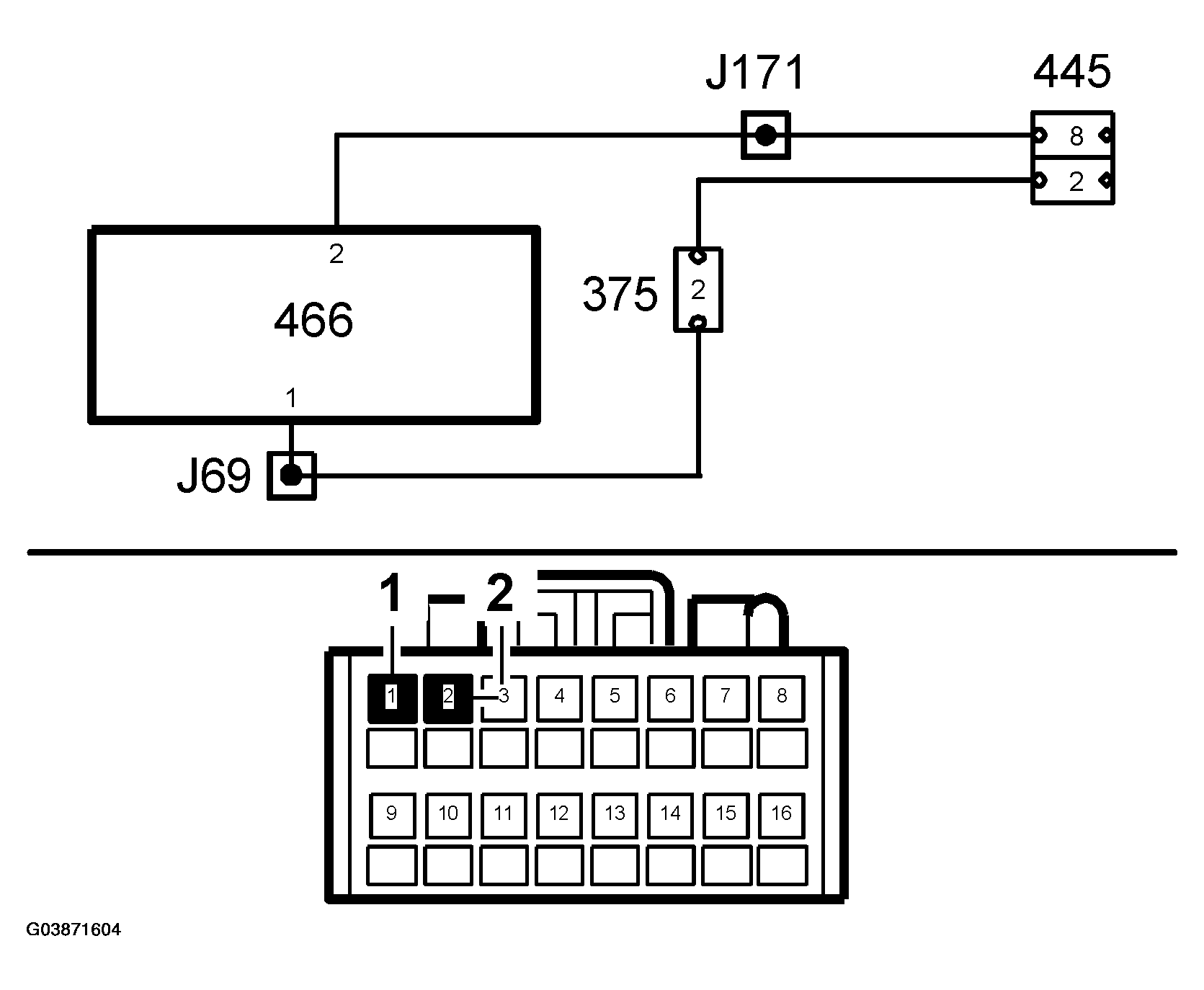

Fig 3: Circuit Diagram OnStar System K16 (3 Of 4)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

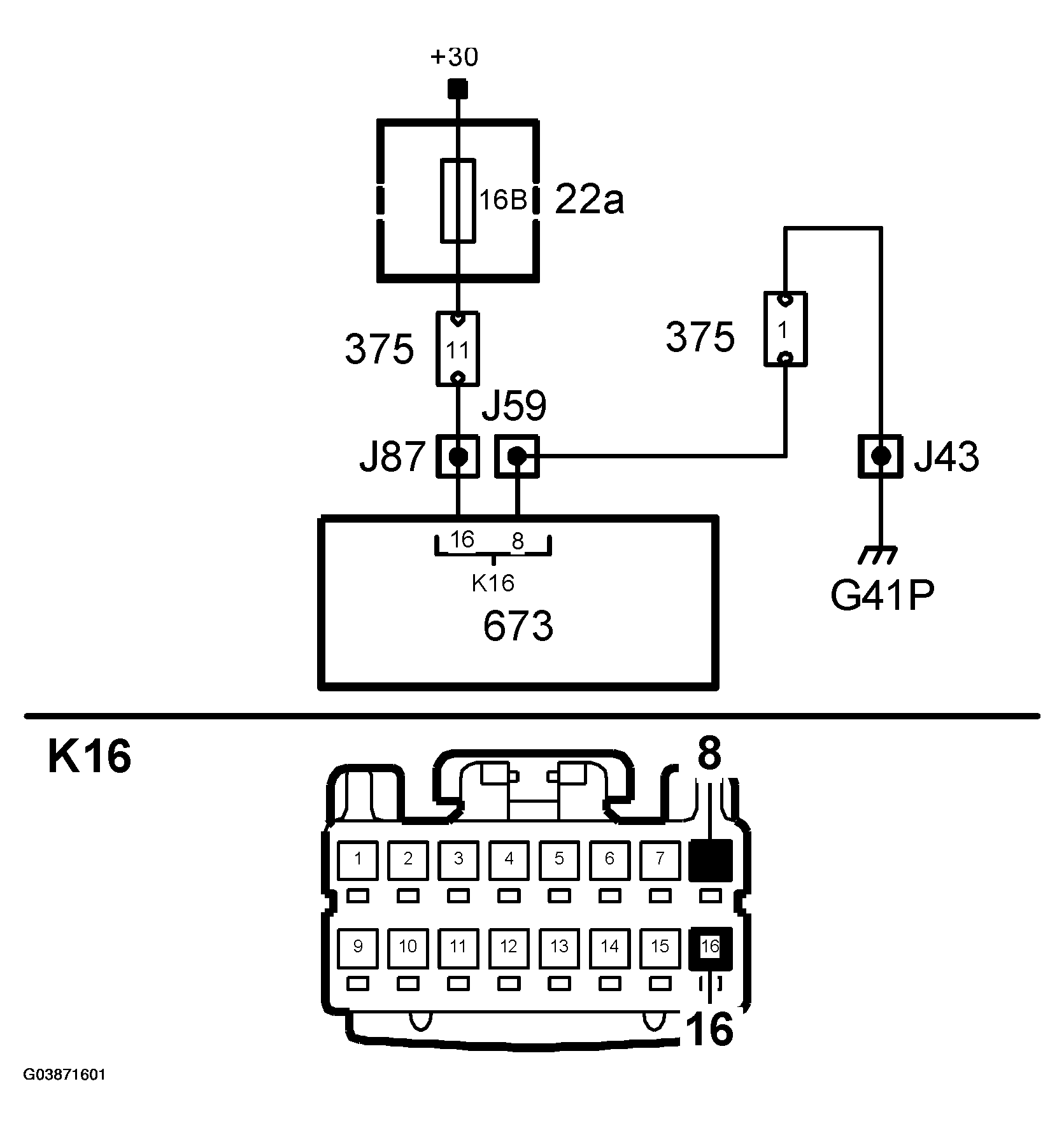

Fig 4: Circuit Diagram OnStar System K16 (4 Of 4)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
